Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel storage compartment. Refer to STORAGE COMPARTMENT REPLACEMENT -- IP .
  2. Using a small flat bladed tool release the retainer tabs securing the IP storage compartment lamp to the IP storage compartment.
  3. Disconnect the electrical connector from the IP storage compartment lamp.

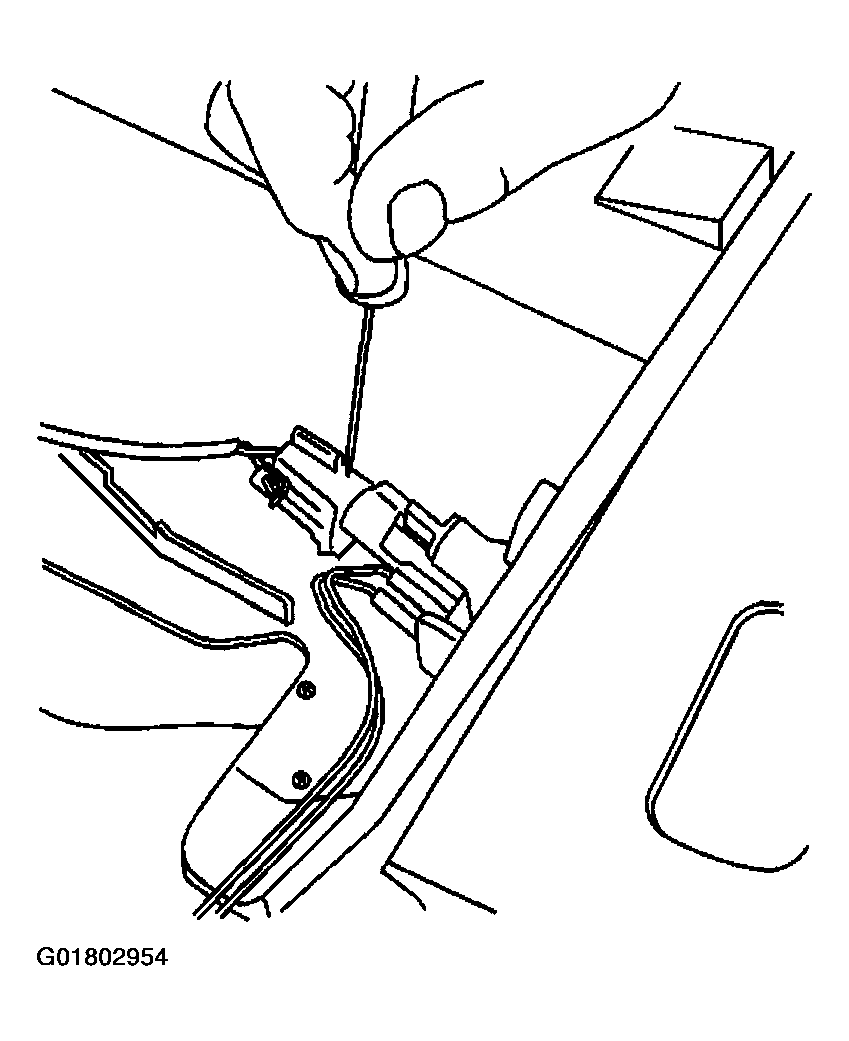

    Fig 1: Disconnecting IP Storage Compartment Lamp Electrical Connector
    G01802954Courtesy of GENERAL MOTORS CORP.
  4. Remove the bulb from the IP storage compartment lamp.

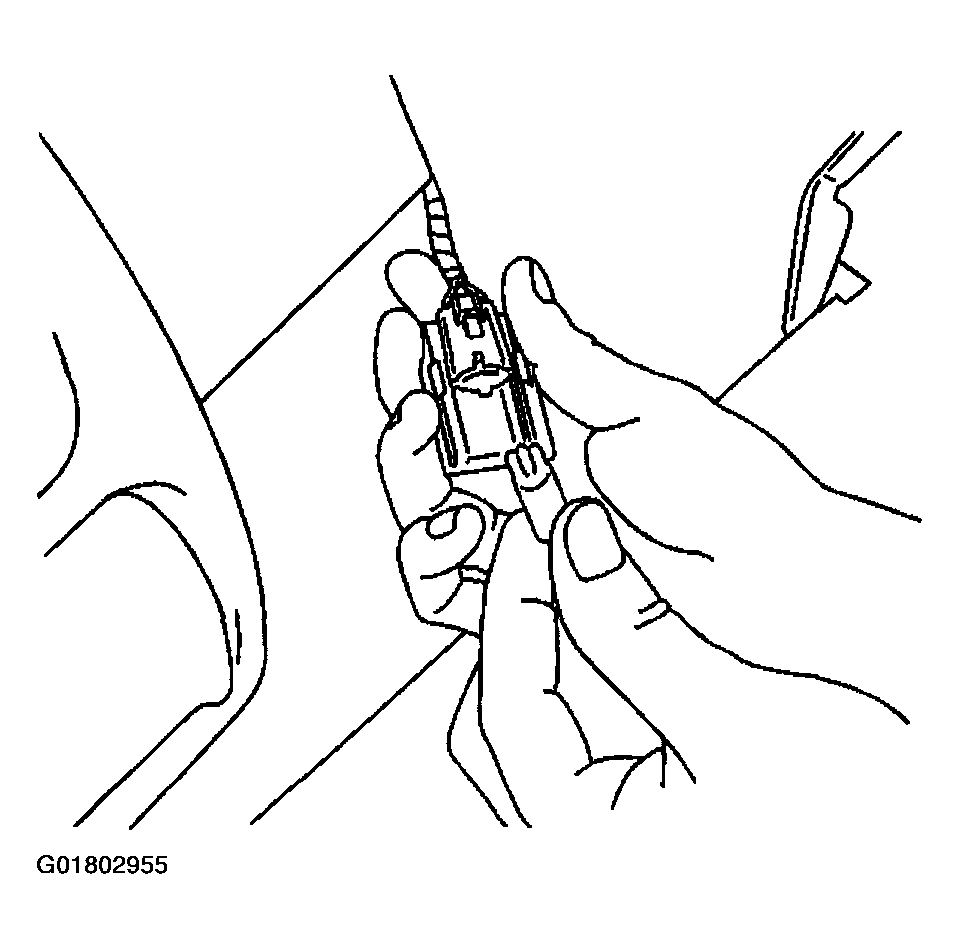

    Fig 2: Removing IP Storage Compartment Lamp Bulb
    G01802955Courtesy of GENERAL MOTORS CORP.
