Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the fog lamp assembly.
  2. Install the fog lamp to the front bumper fascia.
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the front fog lamp mounting fasteners.

    Tighten

    Tighten the front fog lamp mounting fasteners to 6 N.m (53 lb in).

  4. Install the air deflector. Refer to AIR DEFLECTOR REPLACEMENT -- FRONT .
  5. Lower the vehicle.

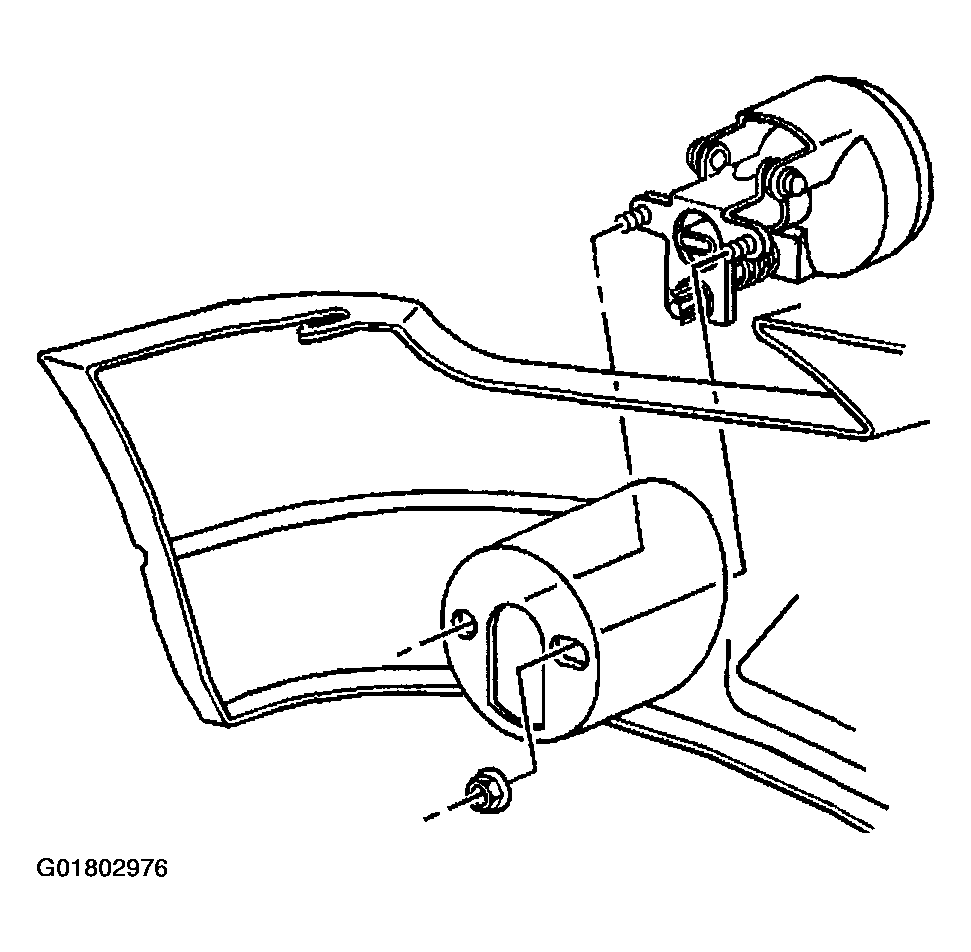

    Fig 1: Installing Front Fog Lamp Assembly
    G01802976Courtesy of GENERAL MOTORS CORP.
