Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the compartment lid.
  2. Remove the appropriate side trim panel. Refer to COMPARTMENT TRIM PANEL REPLACEMENT--REAR .
  3. Remove the tail lamp assembly (3). Refer to Tail Lamp Replacement .
  4. Twist the back up bulb socket counter clockwise 1/4 turn to remove the socket from the tail lamp assembly (3).
  5. Remove the back up bulb from the socket.

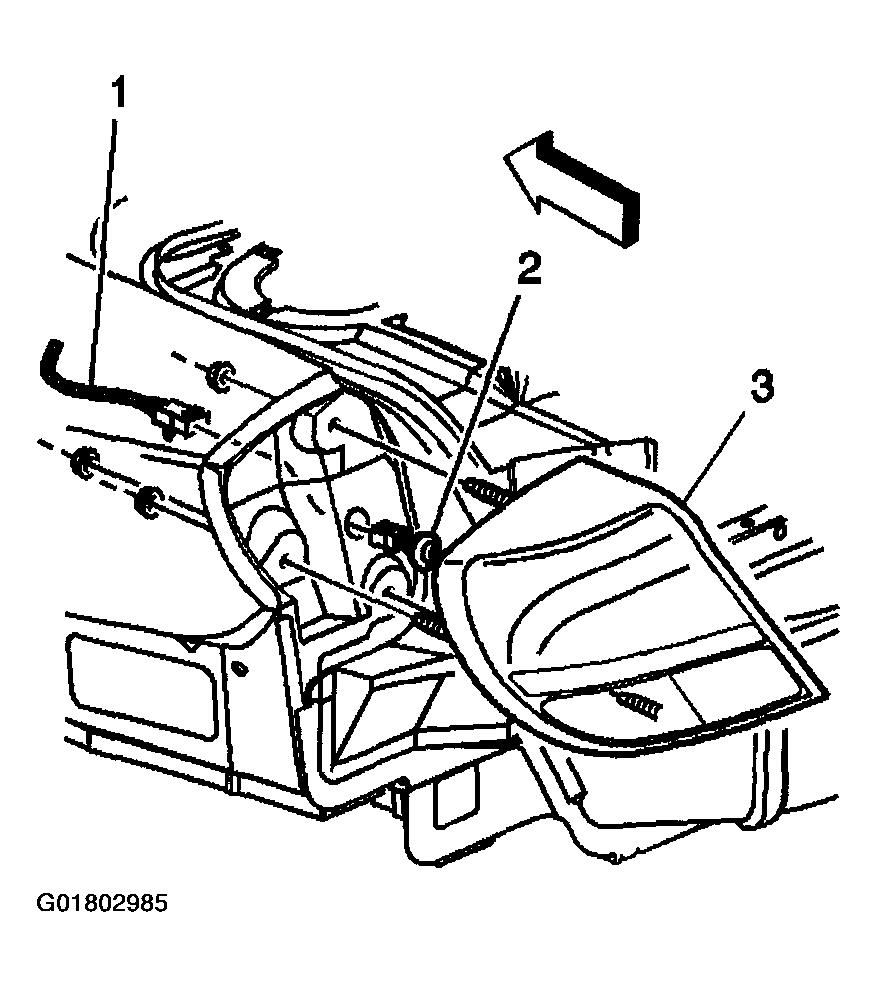

    Fig 1: Removing Backup Lamp Bulb
    G01802985Courtesy of GENERAL MOTORS CORP.
