Muffler Hanger Bracket: Removal

  1. Raise vehicle squarely on a lift.

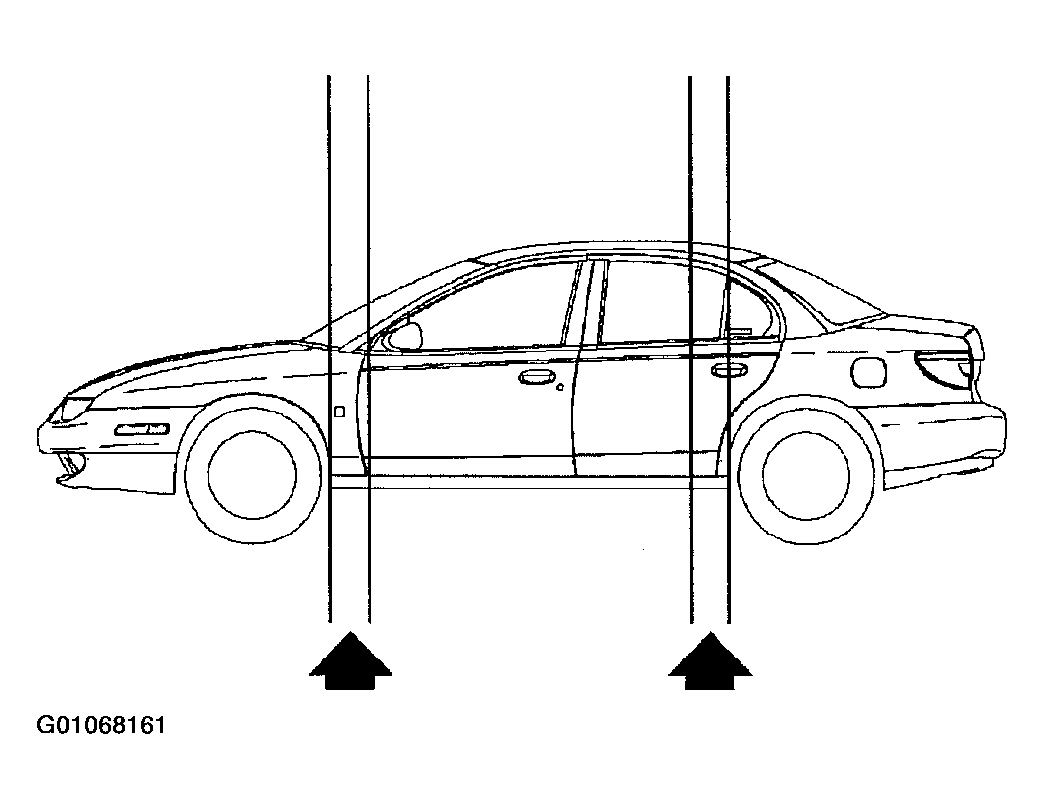

    Fig 1: Vehicle Support Points
    G01068161Courtesy of GENERAL MOTORS CORP.
  2. Remove muffler strap fastener.
  3. Remove muffler hanger fastener.
  4. Remove muffler hanger bracket fasteners.
