Power and Grounding Component Views

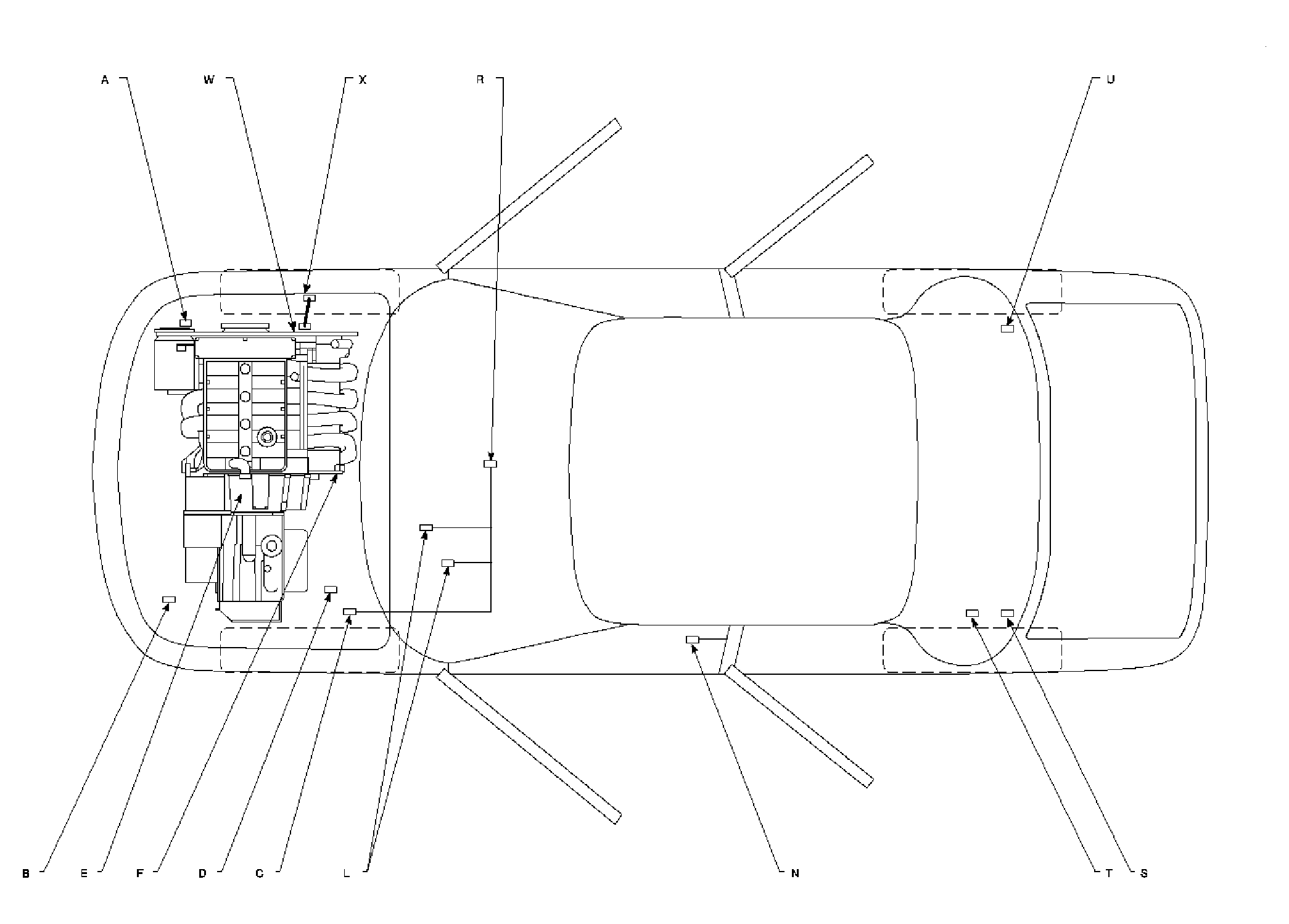

Fig 1: Power and Grounding Component Views
GM863611Courtesy of GENERAL MOTORS CORP.
Callout Component Name
a Right Forward Lamp Ground Splice Pack
b Left Forward Lamp Ground Splice Pack
c IP Chassis Ground
d Chassis Ground (Shock Tower)
e Main Engine Ground
f Rear Engine Ground
l Splice Pack #1 and #2
n Left Body Ground Splice Pack
r H-Brace Ground
s Left Rear Body Ground Splice Pack
t Left Rear Body Ground
u Right Rear Body Ground
x Cylinder Head/Mount Ground
w Right Shock Tower Ground

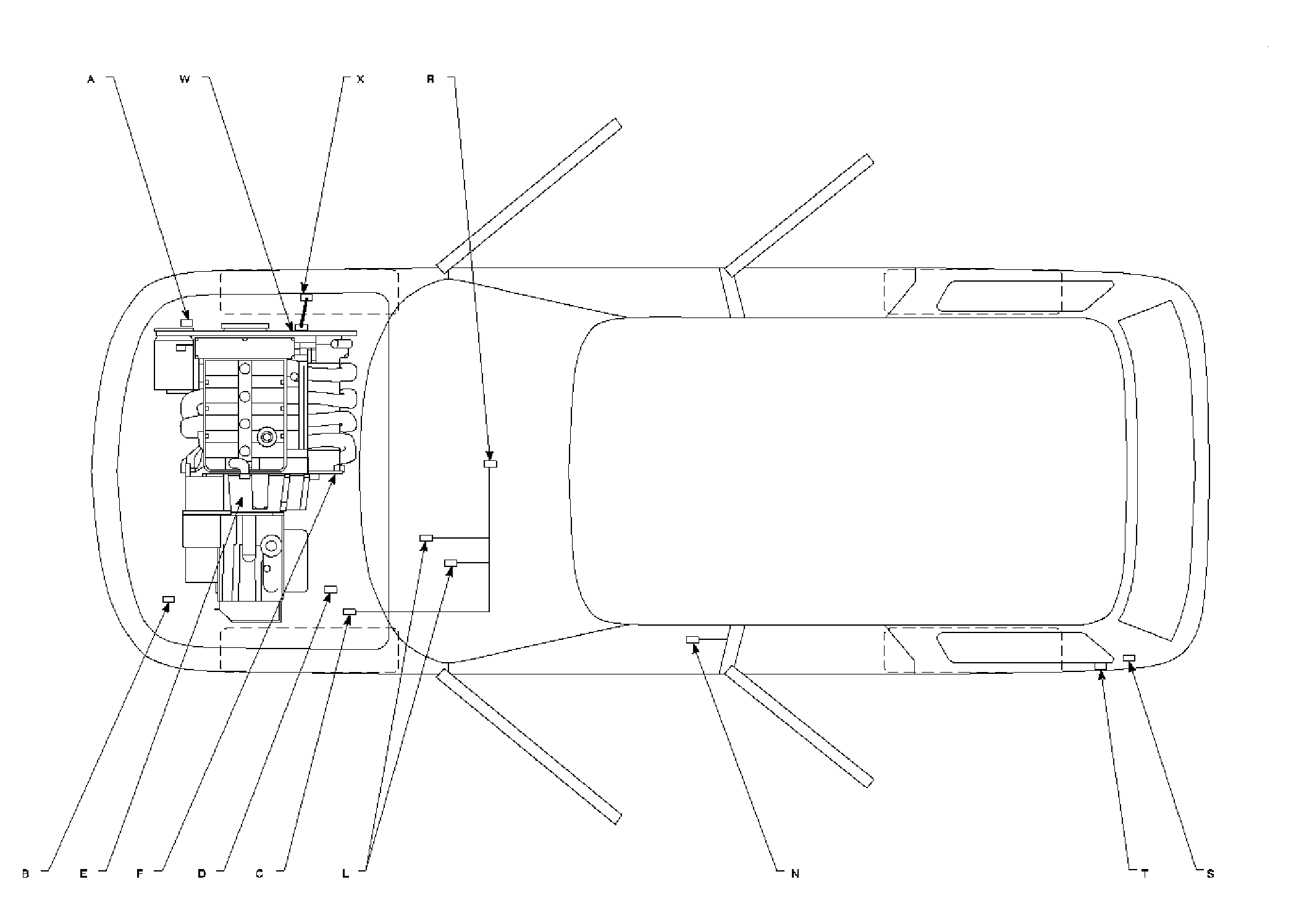

Fig 2: Power and Grounding Component Views
GM863613Courtesy of GENERAL MOTORS CORP.
Callout Component Name
a Right Forward Lamp Ground Splice Pack
b Left Forward Lamp Ground Pack
c IP Chassis Ground
d Chassis Ground (Shock Tower)
e Main Engine Ground
f Rear Engine Ground
l I/P Splice Pack #1 and #2
n Left Body Ground Splice Pack
r H-Brace Ground
s Left Rear Body Ground Splice Pack
t Left Rear Body Ground
x Cylinder Head/Mount Ground
w Right Shock Tower Ground

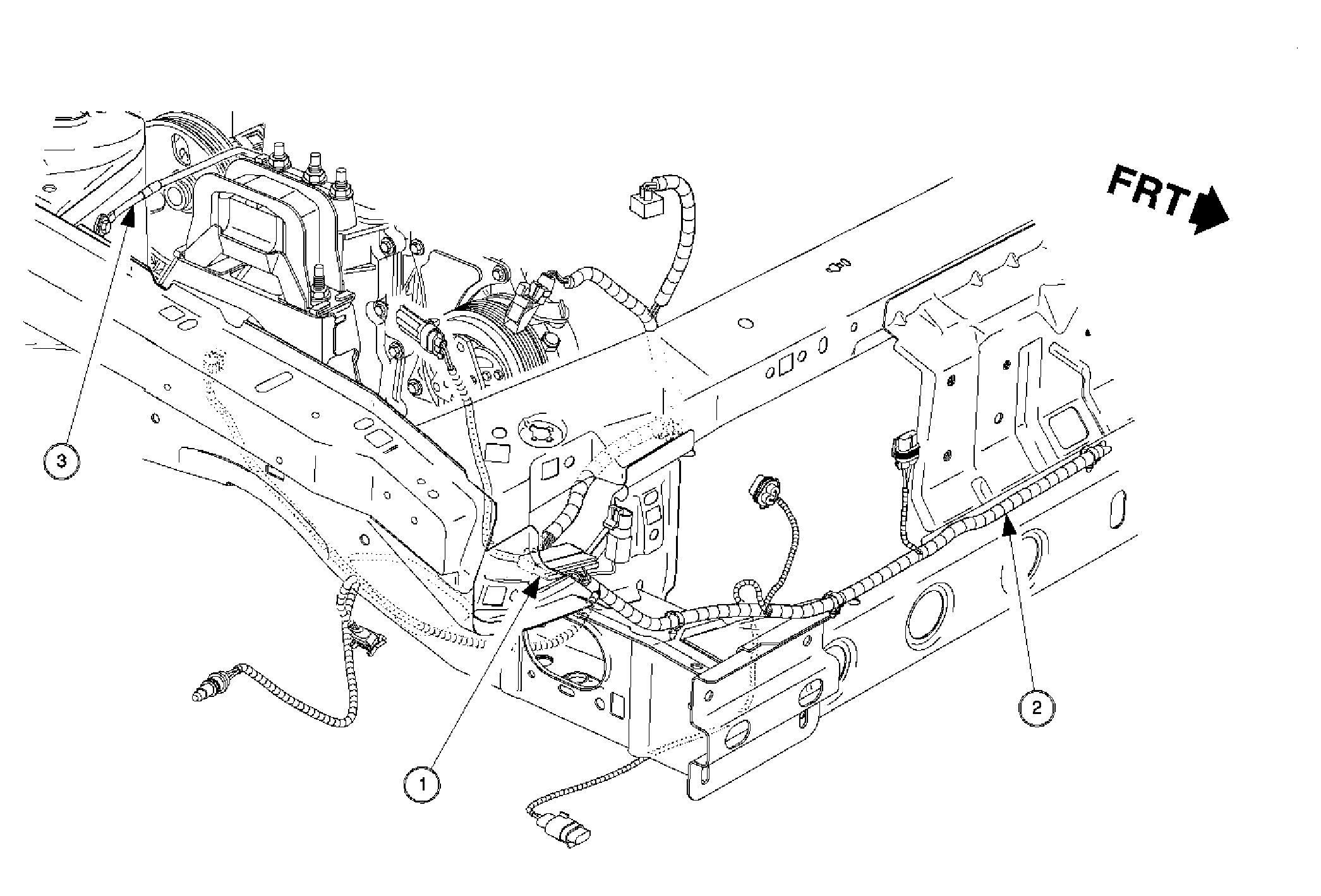

Fig 3: Right Forward Lamp Ground and Splice Pack (A) - (SL/SW Shown, SC Similar)
GM863805Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Splice Pack
2 Forward Lamp Harness
3 Ground
Fig 4: Left Forward Lamp Ground (B) and Chassis Ground (C)
GM863805Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 I/P Harness
2 Chassis Ground
3 B+ Cable to UHFB
4 B+ Cable
5 B- Cable
6 Left Forward Lamp Ground

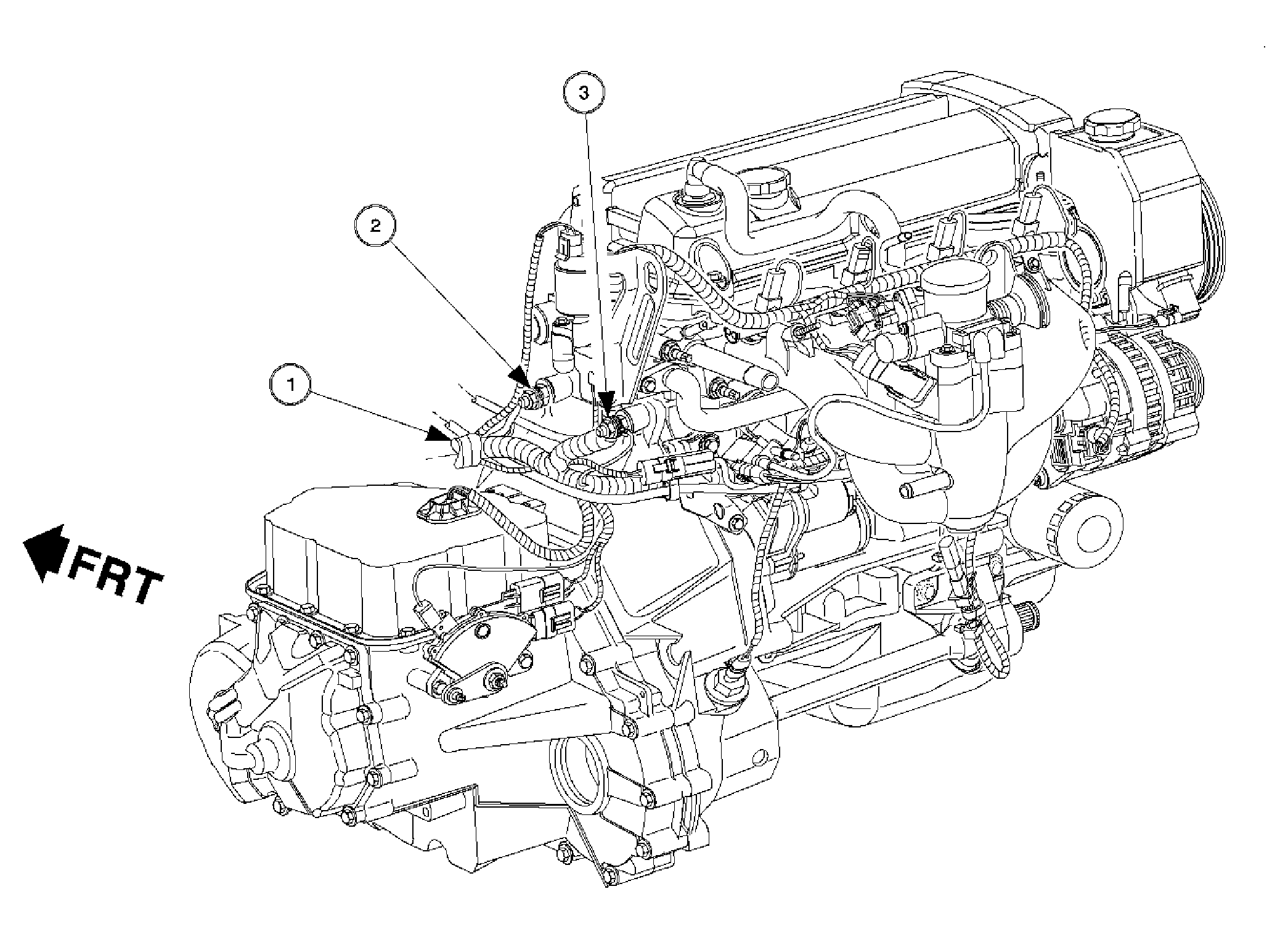

Fig 5: Engine Grounds
GM863801Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Harness
2 Main Engine Ground
3 Rear Engine Ground

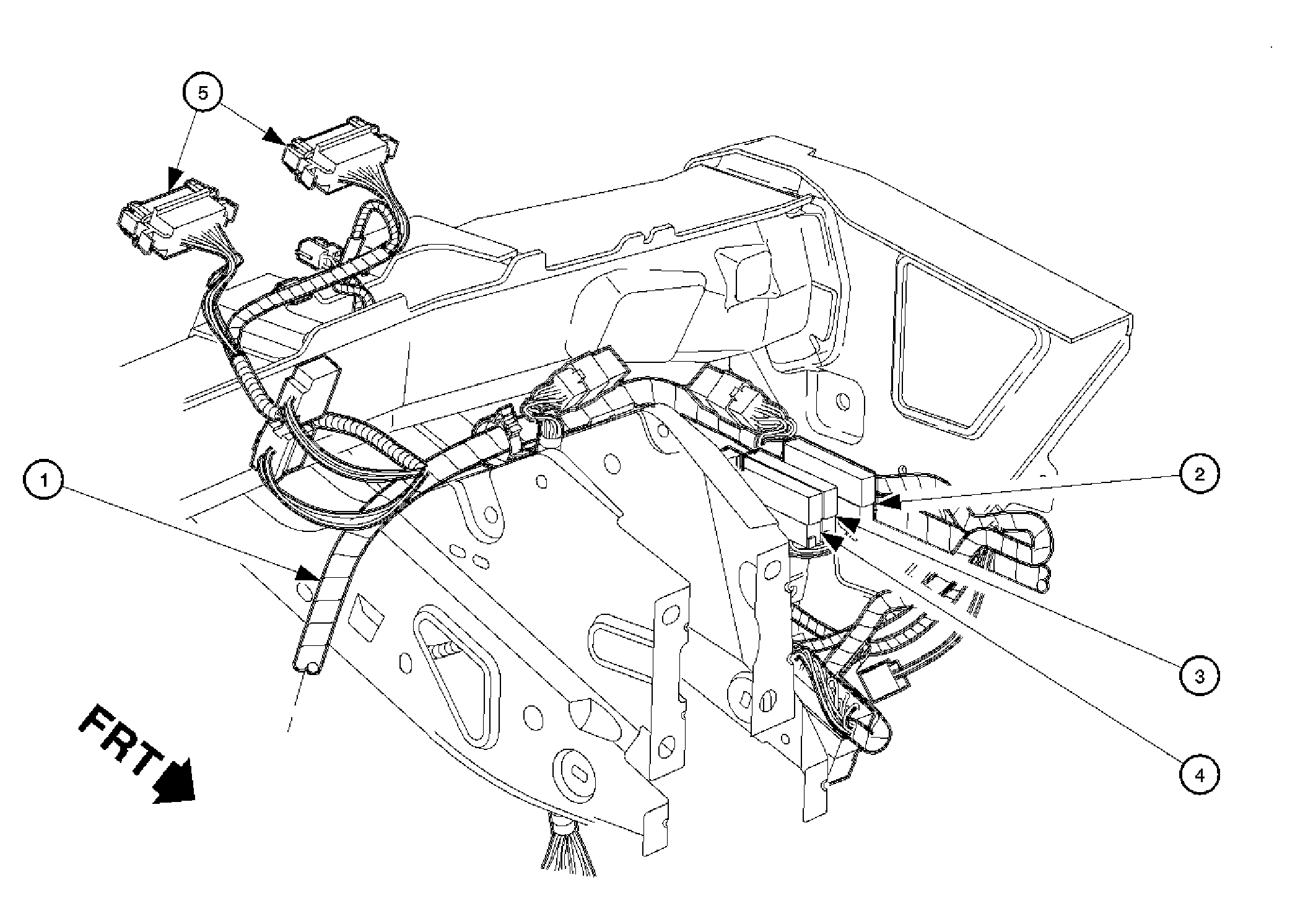

Fig 6: I/P Splice Packs #1 and #2
GM863038Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 I/P Harness
2 I/P Splice Pack #1
3 I/P Splice Pack #2
4 ABS/SIR Splice Pack
5 I/P Cluster Connectors
Fig 7: Left Body Ground and Splice Pack (N) - (SL/SW Shown, SC Similar)
GM863038Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Harness
2 Left Body Ground & Splice Pack

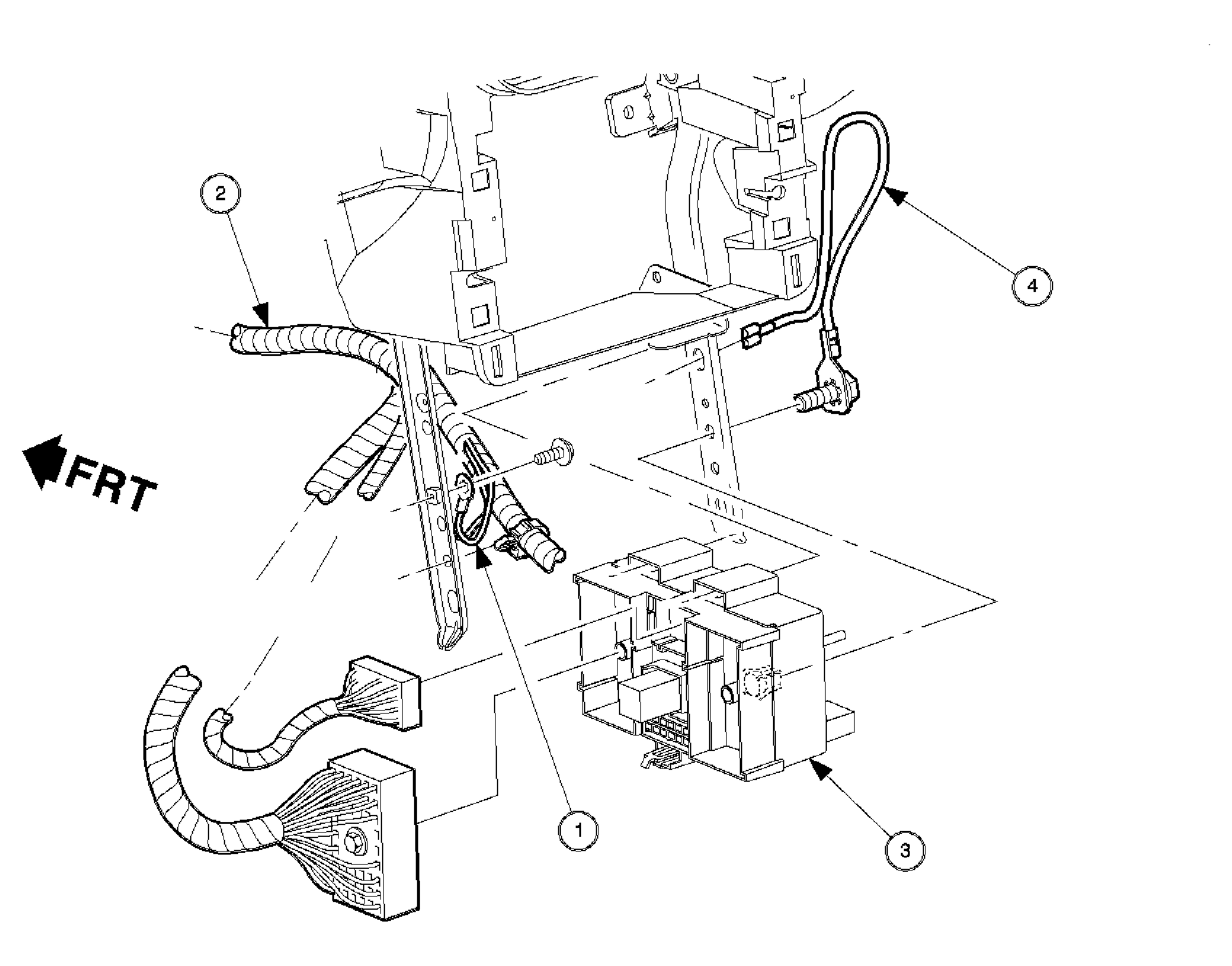

Fig 8: Blower Motor Ground (R)
GM862910Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Blower Motor Ground
2 I/P Harness
3 IPFB
4 IPFB Ground

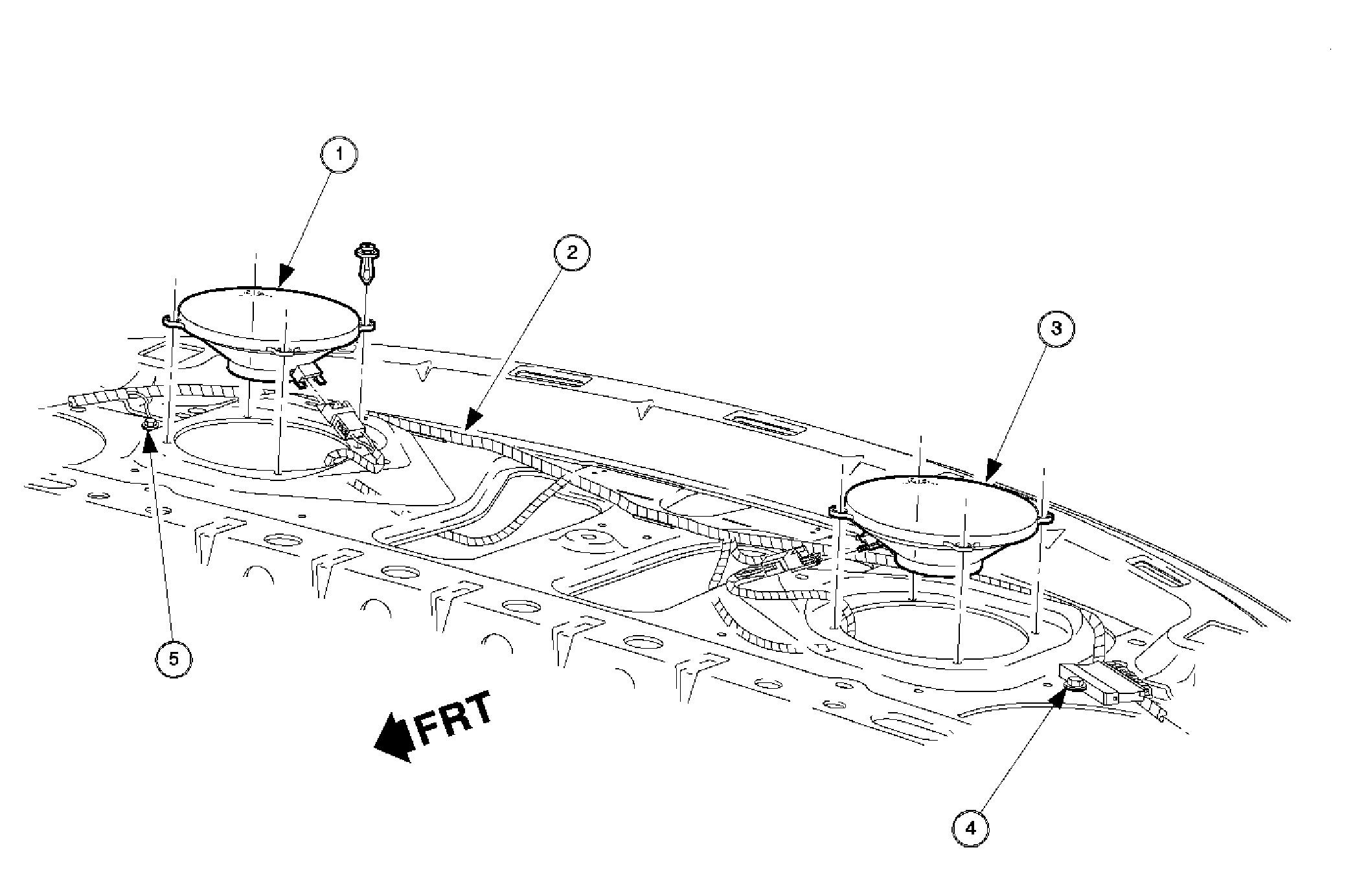

Fig 9: Left Rear Body Ground and Splice Pack (T) and Right Rear Ground (U) - (SL Shown, SC Similar)
GM862985Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Right Rear Speaker
2 Body Harness
3 Left Rear Speaker
4 Left Rear Body Ground & Splice Pack
5 Right Rear Body Ground

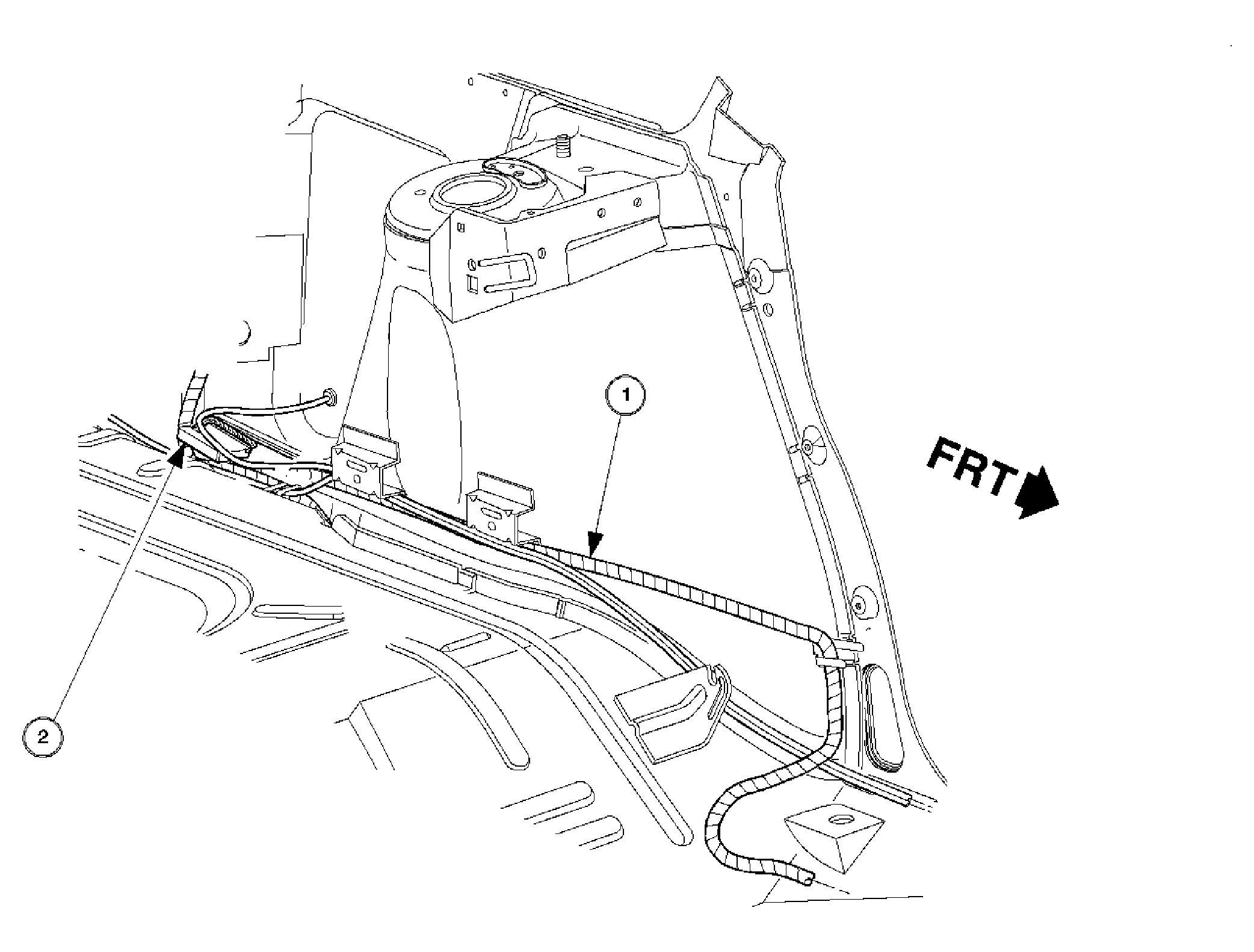

Fig 10: Left Rear Body Ground Splice Pack (S) - (SW Only)
GM862986Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Harness
2 Left Rear Body Ground Splice Pack

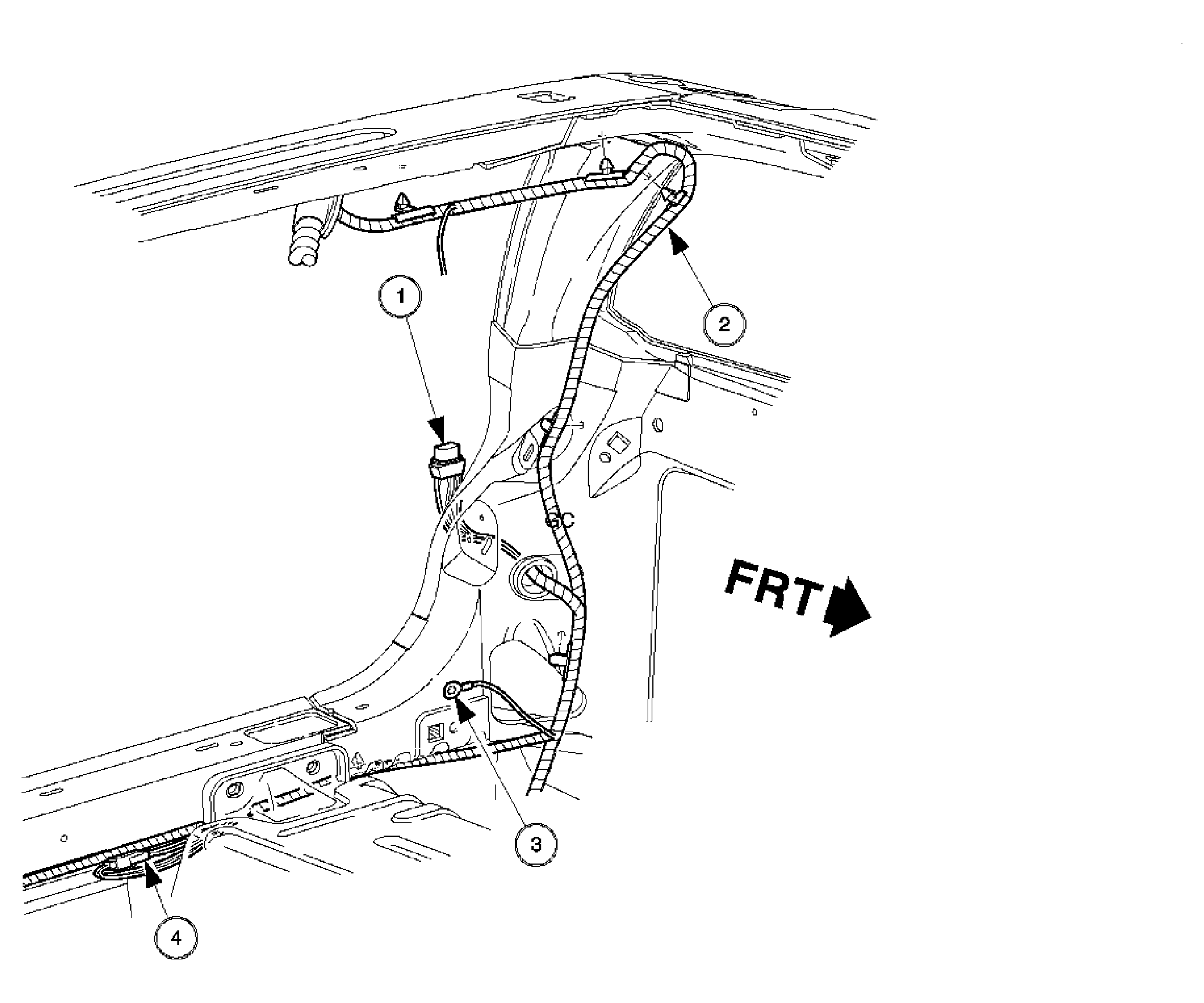

Fig 11: Left Rear Body Ground (T) - (SW Only)
GM863010Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inline to Left Rear Taillamps
2 Body Harness
3 Left Rear Body Ground
4 Fuel Pump Inline

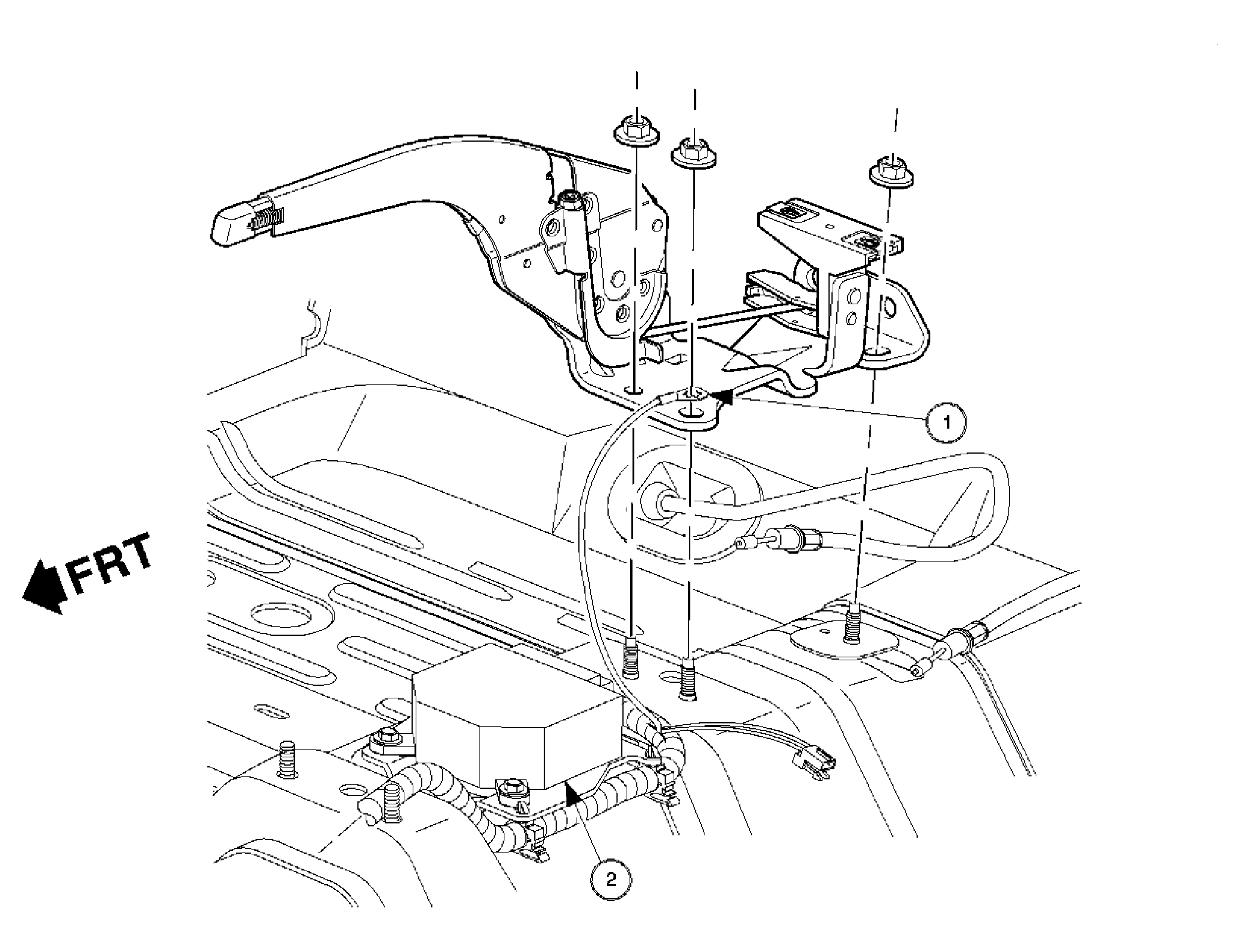

Fig 12: SDM Ground
GM863028Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 SDM Ground
2 Sensing and Diagnostic Module (SDM)
