Power Door Systems Component Views

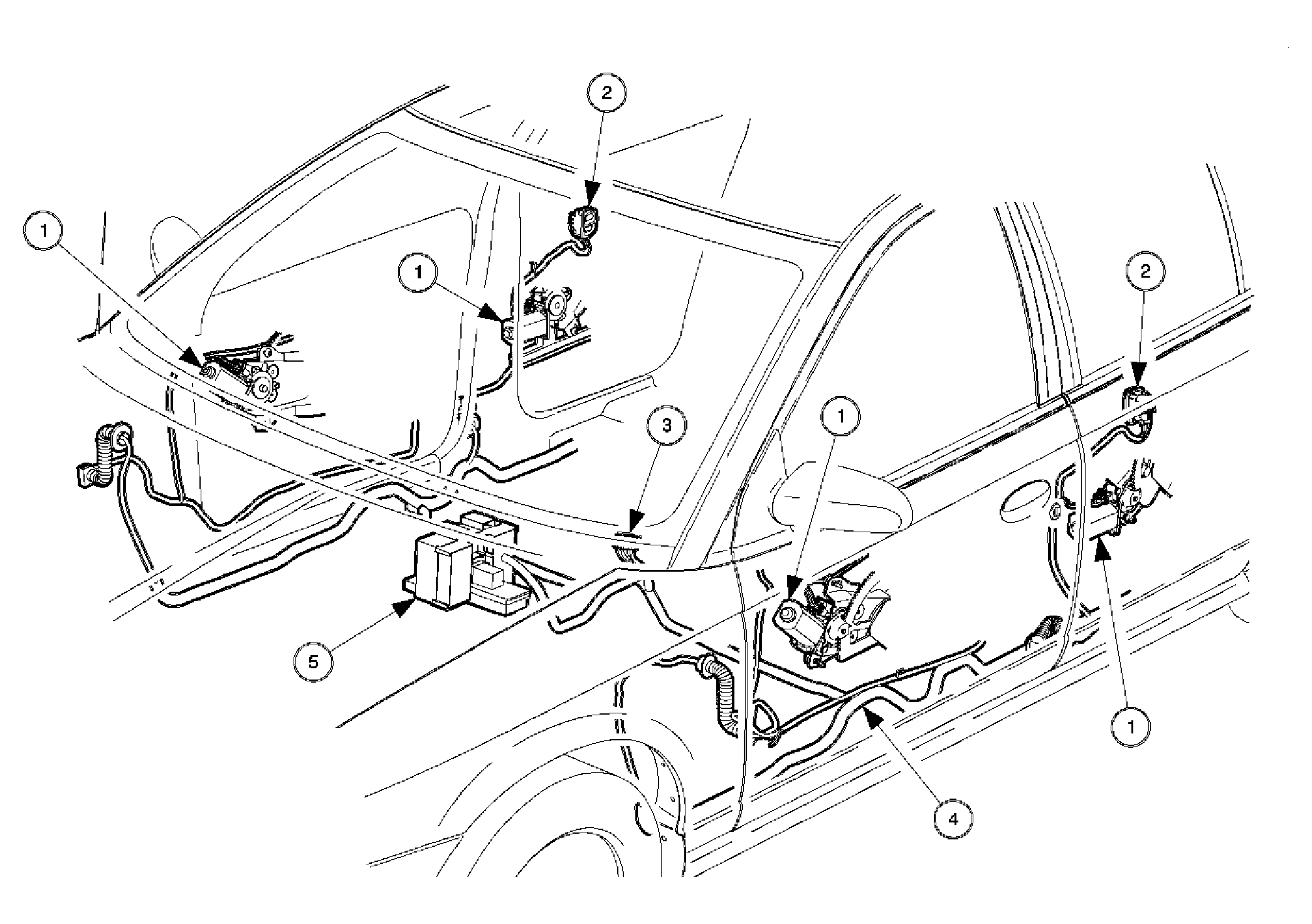

Fig 1: Power Door Systems Component Views
GM862462Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Window Motor
2 Rear Window Switch
3 Power Window/Mirror Switch
4 Body Harness
5 Instrument Panel Fuse Block (IPFB)
