Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb into the socket through the rear tail lamp opening.
  2. Install the socket to the license lamp.

    Rotate the socket clockwise to engage the locking tabs.

  3. Install the inner tail lamp. Refer to TAIL LAMP REPLACEMENT  .

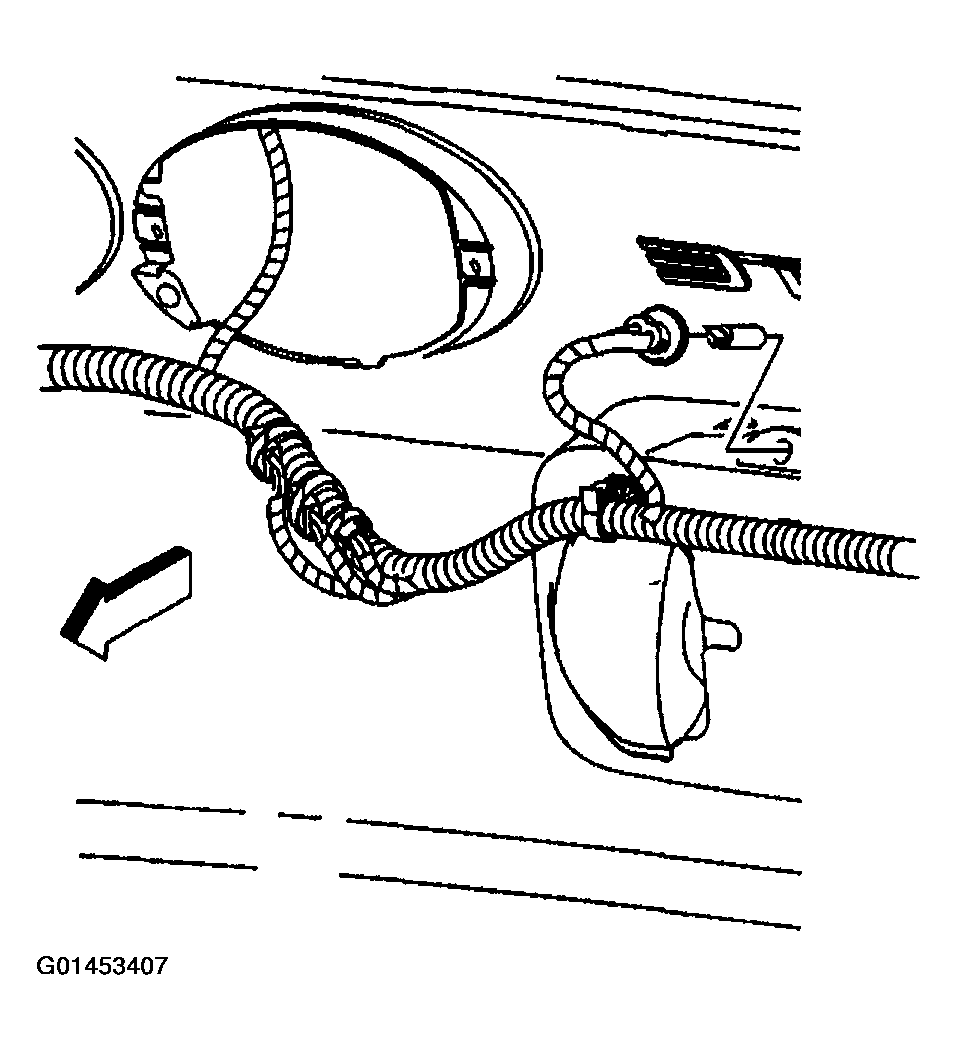

    Fig 1: Installing Bulb Into Socket Through Rear Tail Lamp Opening
    G01453407Courtesy of GENERAL MOTORS CORP.
