Scan Tool Data List

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

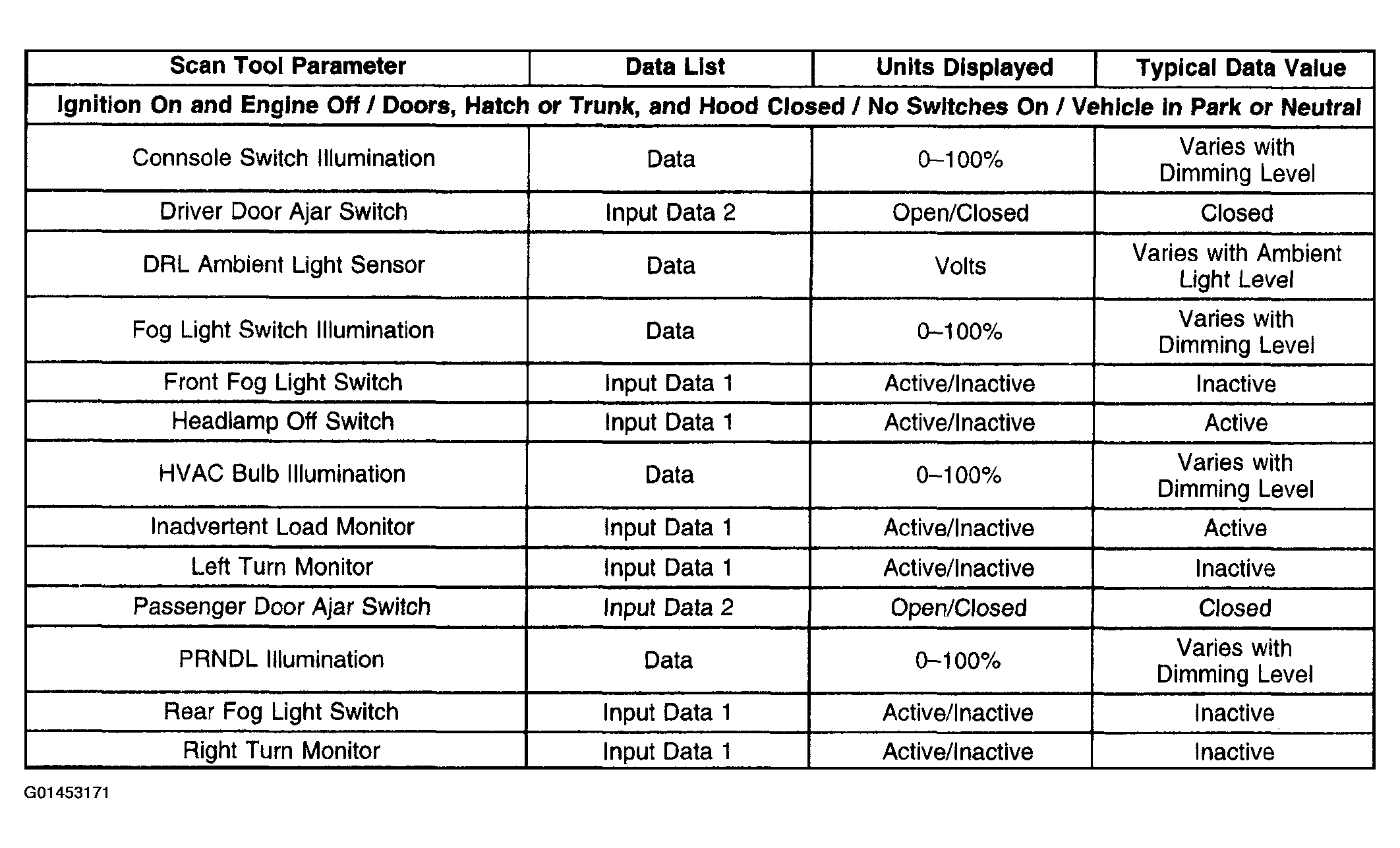

Fig 1: BCM Scan Tool Data List

Courtesy of GENERAL MOTORS CORP.

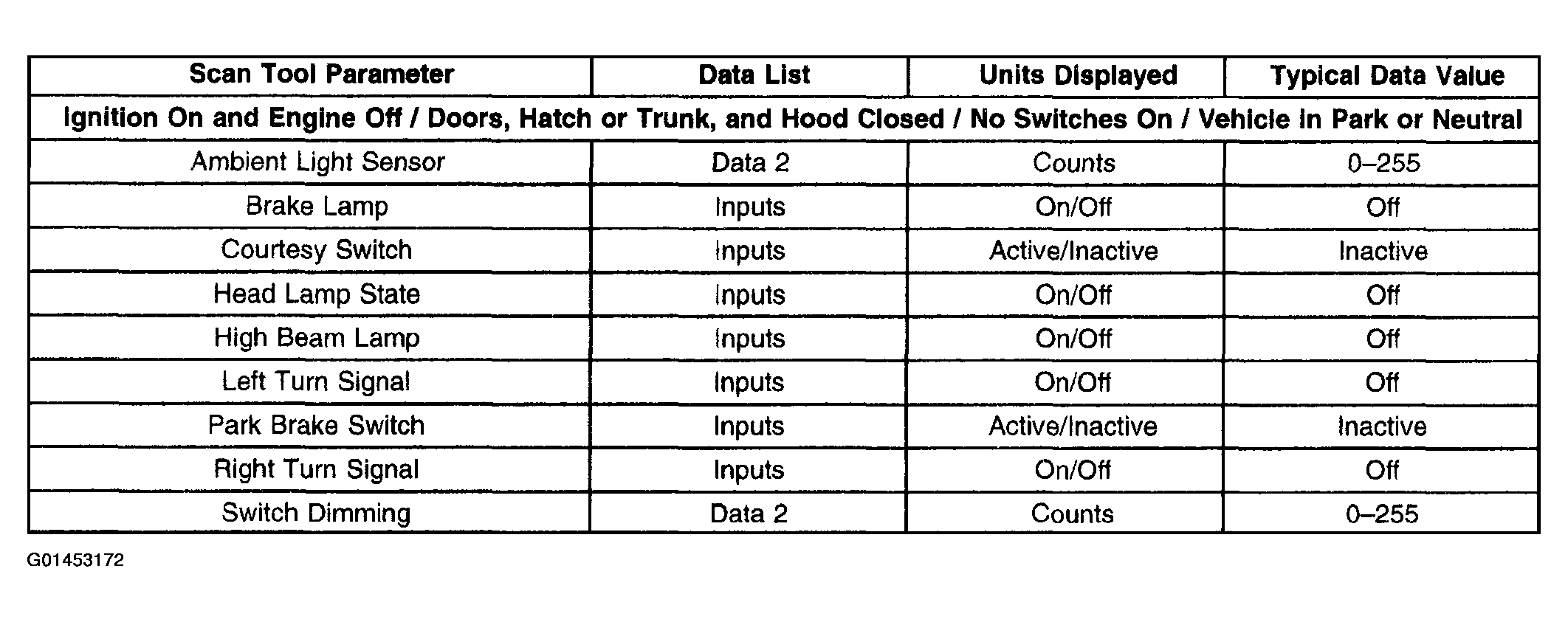

Fig 2: IPC Scan Tool Data List

Courtesy of GENERAL MOTORS CORP.

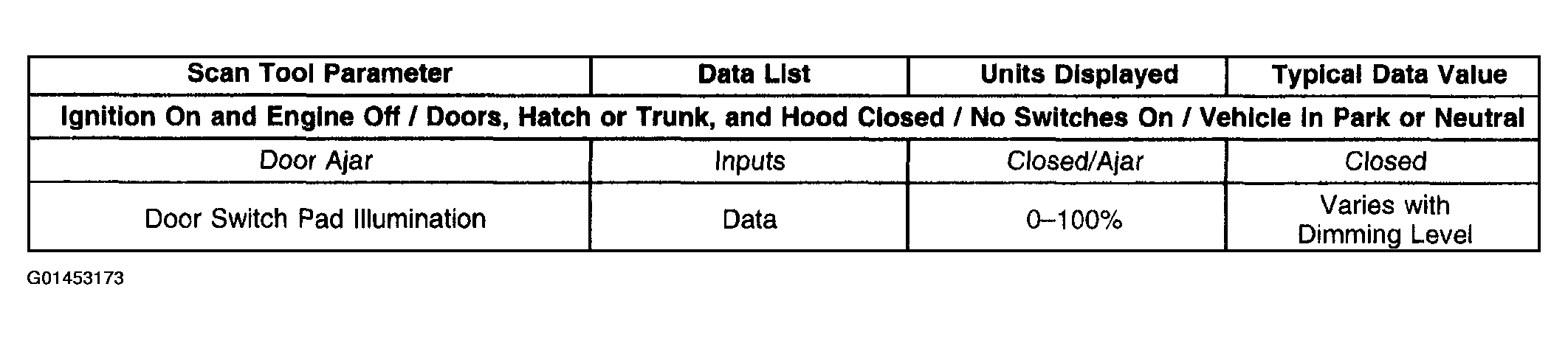

Fig 3: LDCM Scan Tool Data List

Courtesy of GENERAL MOTORS CORP.

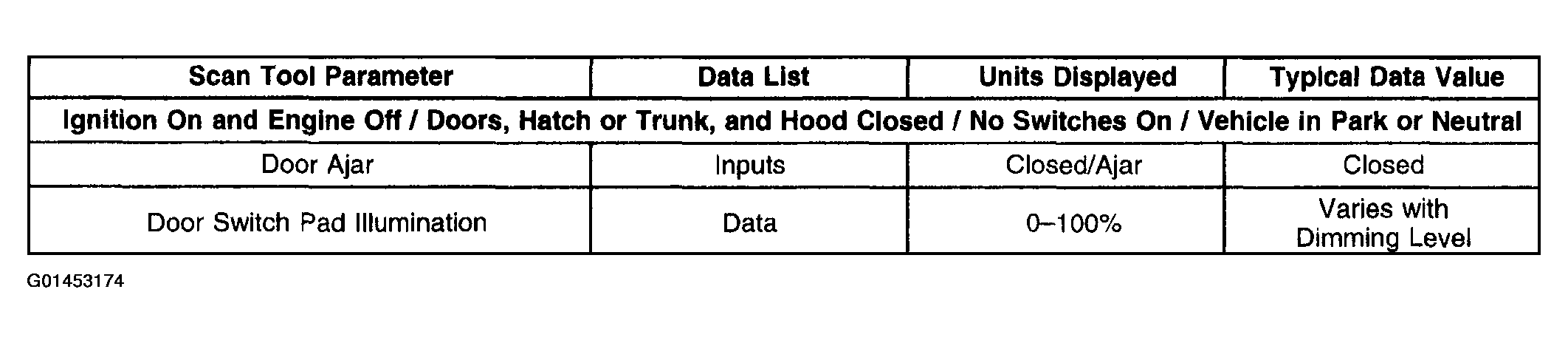

Fig 4: RDCM Scan Tool Data List

Courtesy of GENERAL MOTORS CORP.
