Spark Plugs: Removal

NOTE: Before removing spark plugs, blow out spark plug wells to clear water or other debris.

Turn ignition off. Note position of spark plug wires before removing wires. Twist spark plug boot 1/2 turn before removing boot. Remove spark plug wires from spark plugs. Remove spark plugs from engine.

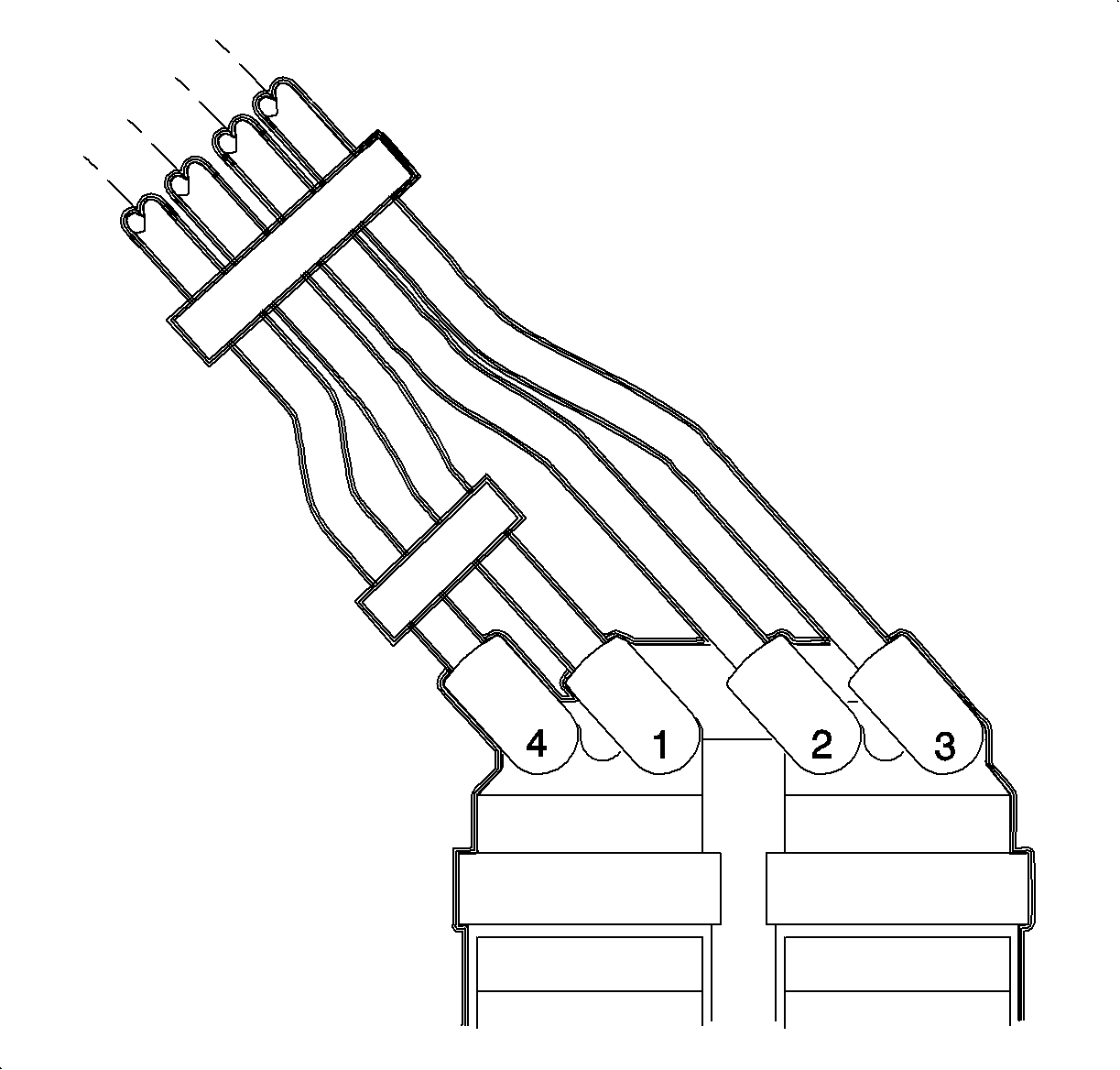

Fig 1: Spark Plug Wire Routing At Coil Pack
GM862906
