Installation Procedure

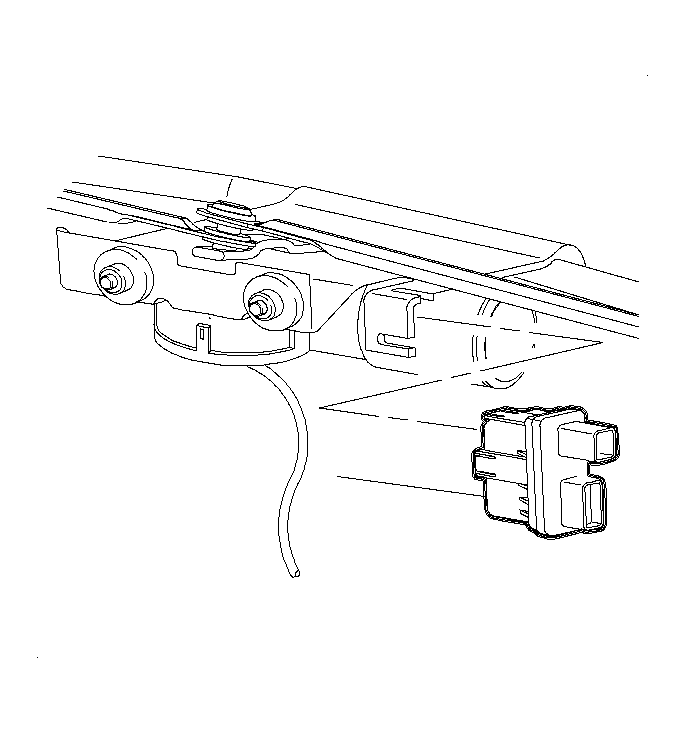

    Fig 1: Wiper Controller
    GM869273Courtesy of GENERAL MOTORS CORP.
  1. Install the wiper controller to the wiper module.

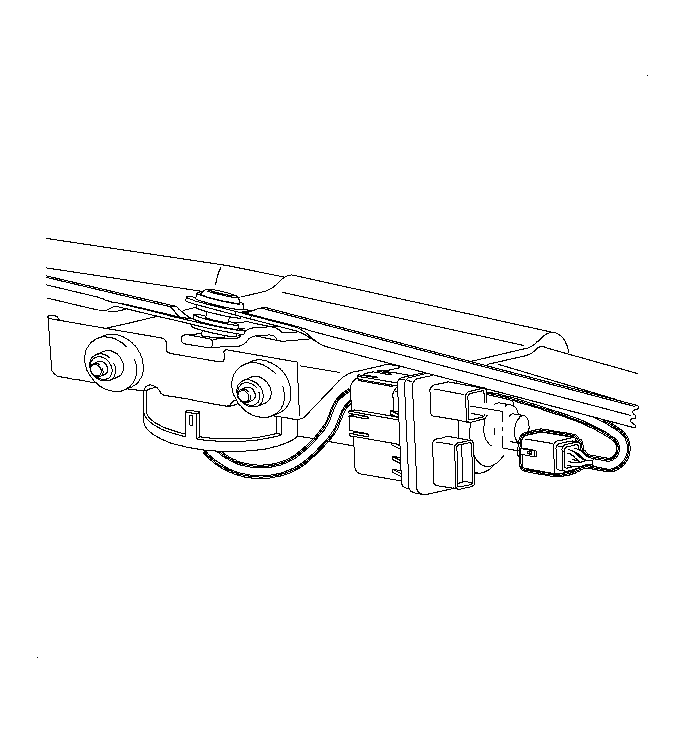

    2. Fig 2: Wiper Control Module & Electrical Connector
    GM869265Courtesy of GENERAL MOTORS CORP.
  2. Connect the wiper control module electrical connector.
    3. Fig 3: Wiper Module & Wiring Harness
    GM867640Courtesy of GENERAL MOTORS CORP.
  3. Install the wiper module. Refer to Windshield Wiper Motor Replacement (1st Design)  or Windshield Wiper Motor Replacement (2nd Design) .
