Keyless Entry Component Views

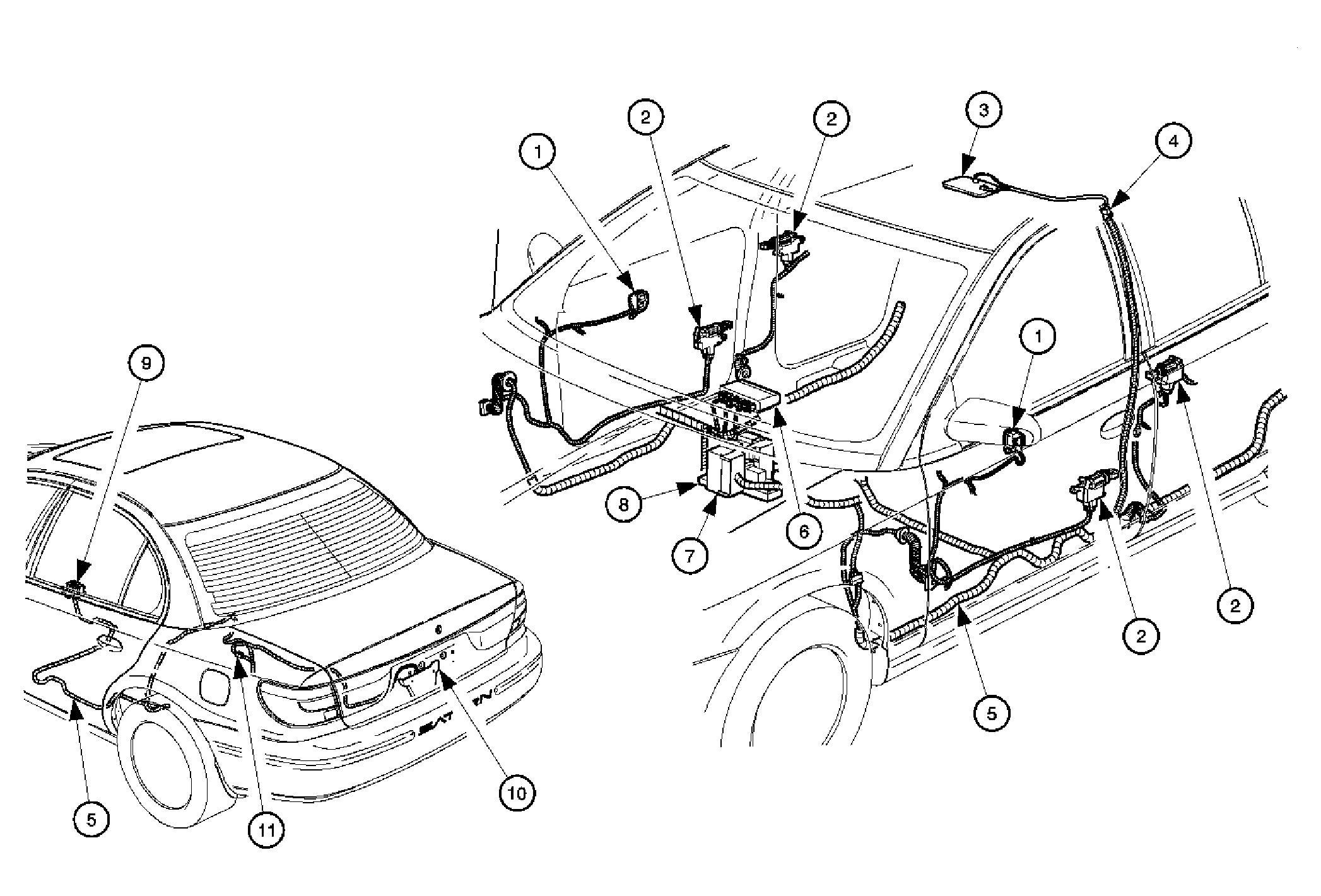

Fig 1: RKE/Security System

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Switch
2	Door Lock Actuator
3	Dome Lamp
4	Headliner Inline
5	Body Harness
6	Body Control Module (BCM)
7	Instrument Panel Fuse Block (IPFB)
8	Door Lock Relays
9	Left Instrument Panel Fuse Block (LIPFB)
10	Decklid Release Solenoid/Ajar Switch
11	Decklid Inline

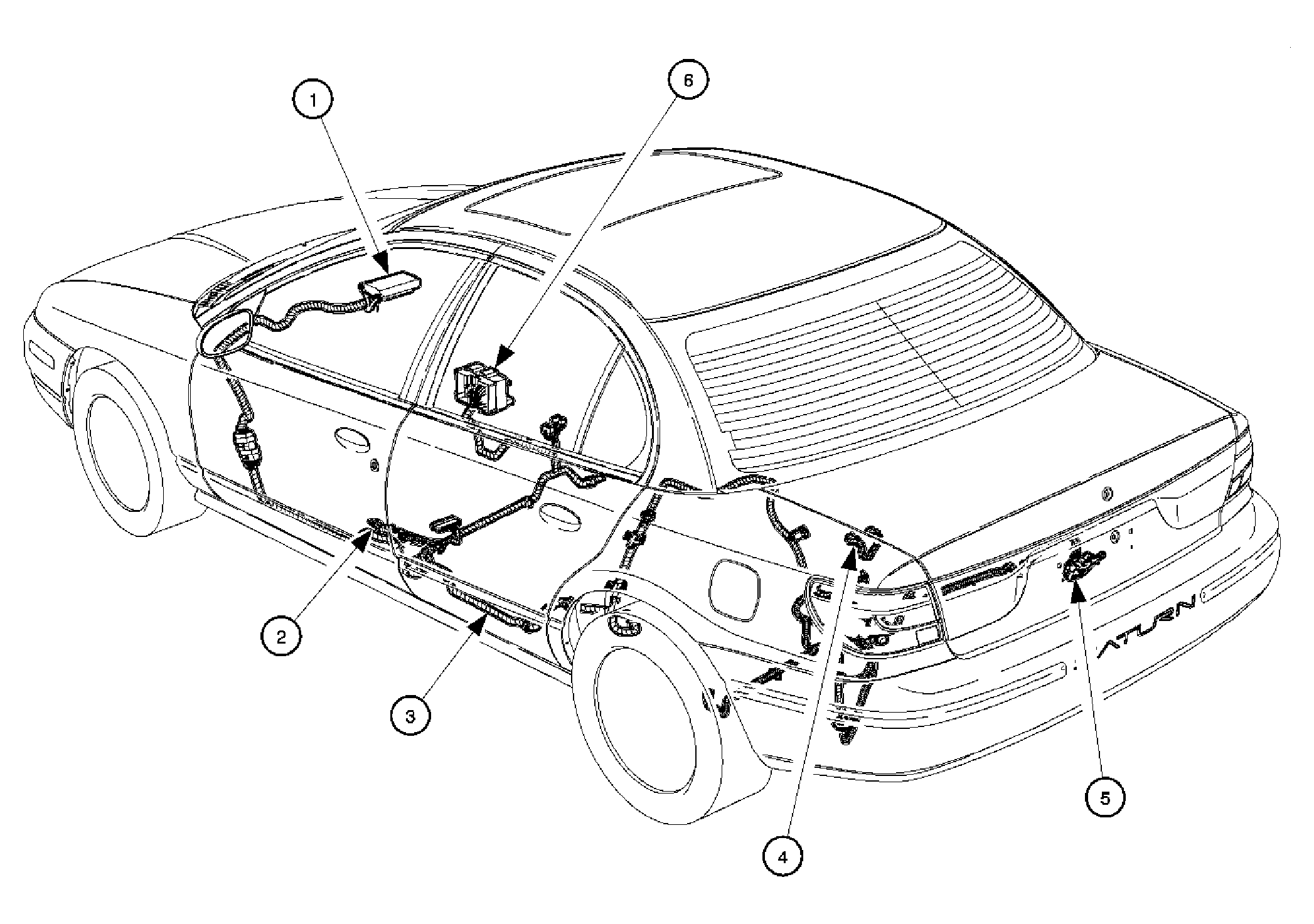

Fig 2: Decklid/Liftgate

Courtesy of GENERAL MOTORS CORP.

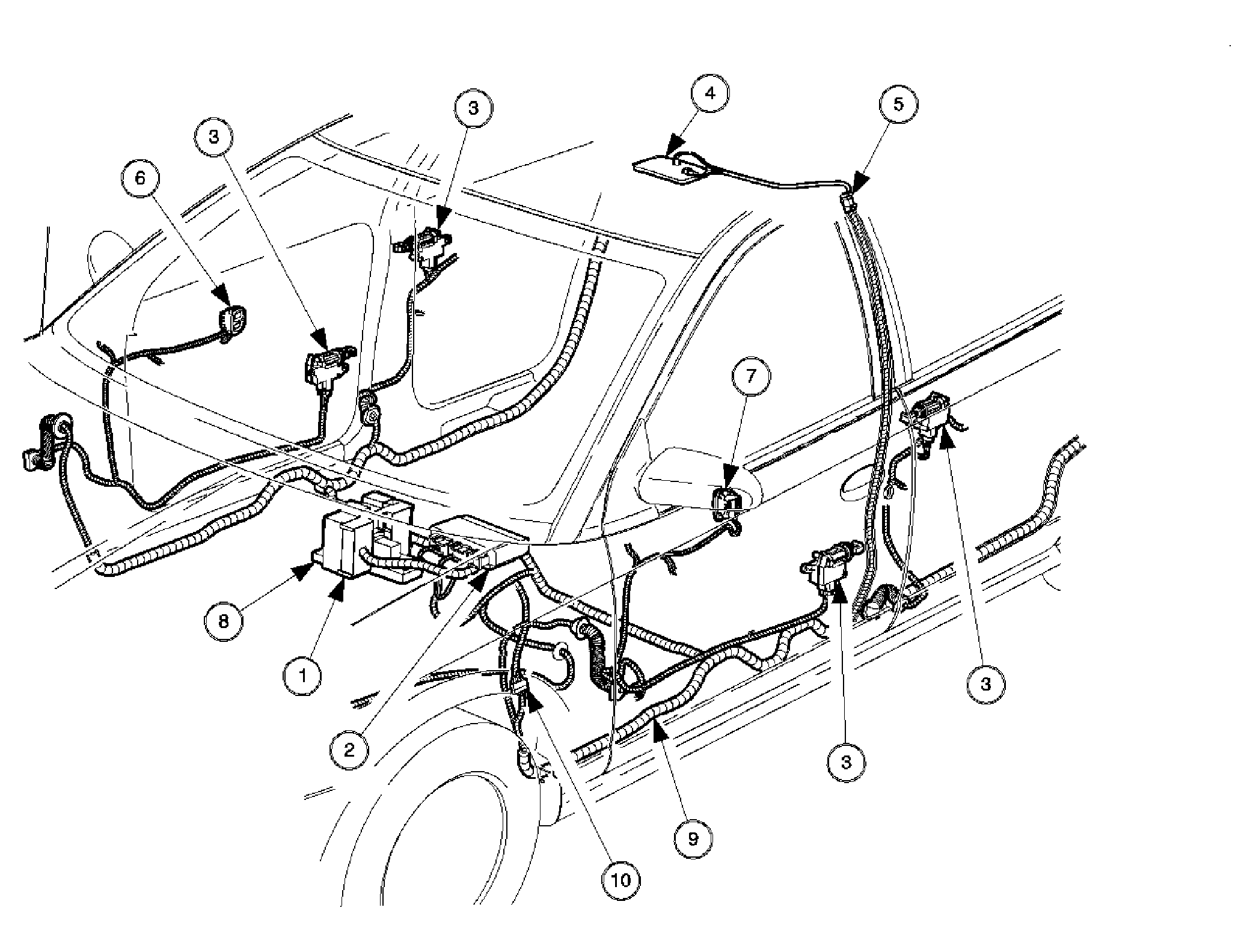

Fig 3: Power Door Lock System

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Fuse Block (IPFB)
2	Body Control Module (BCM)
3	Actuator
4	Dome Lamp
5	Headliner Inline
6	Door Lock Switch
7	Door Lock Switch
8	Door Lock Relay
9	Body Harness
10	I/P to Inline Connector

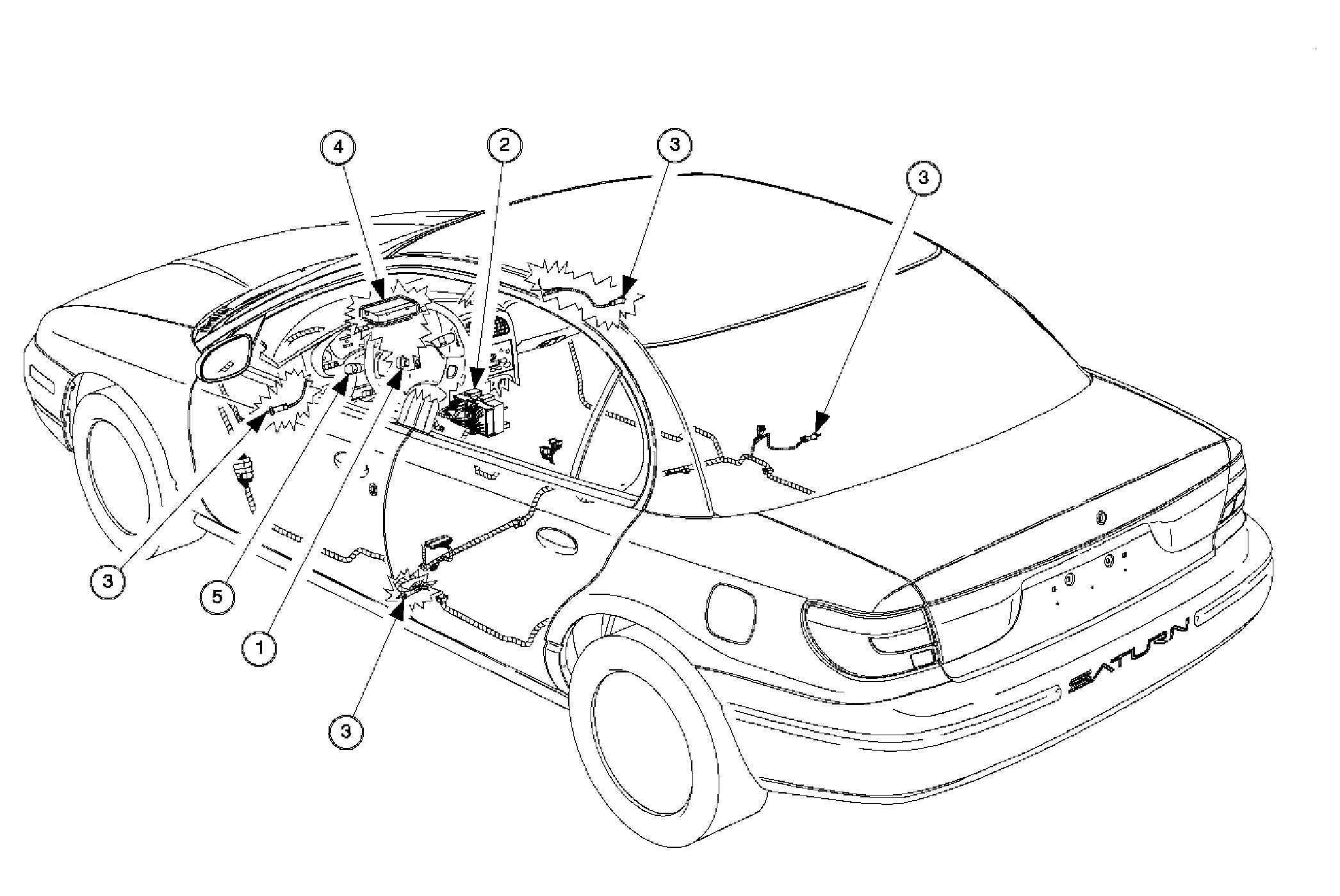

Fig 4: Chime System

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Switch
2	Instrument Panel Fuse Block (IPFB)
3	Door Jamb Switch
4	Body Control Module
5	Headlamp Switch
