Installation Procedure
WARNING: This page is about a different car, the 2003 Saturn LW300, 2003 Saturn LW200, 2003 Saturn L300, and 2003 Saturn L200. However, it is still accessible from the selected car via links, so may be relevant.

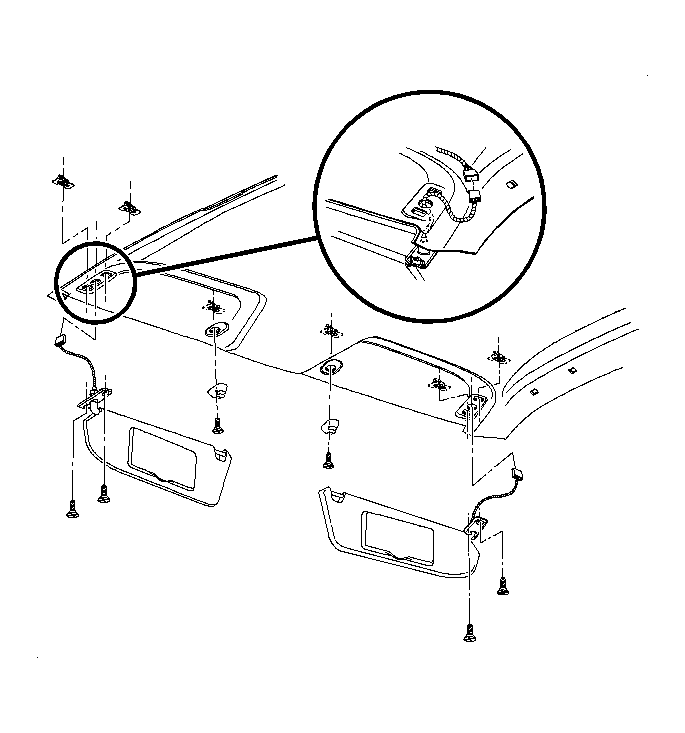

- On illuminated sunshade, connect the sunshade wiring connector.
- Route the wiring harness into the holes and install the sunshade with fasteners.
Tighten: Tighten the sunshade-to-headliner fasteners to 15 N.m (11 lb ft).
- Snap the sunshade into the inner retainer clip.
NOTE:
Refer to FASTENER NOTICE
in Cautions and Notices.
