STOPLAMP Switch: Installation
WARNING: This page is about a different variant/trim than selected.

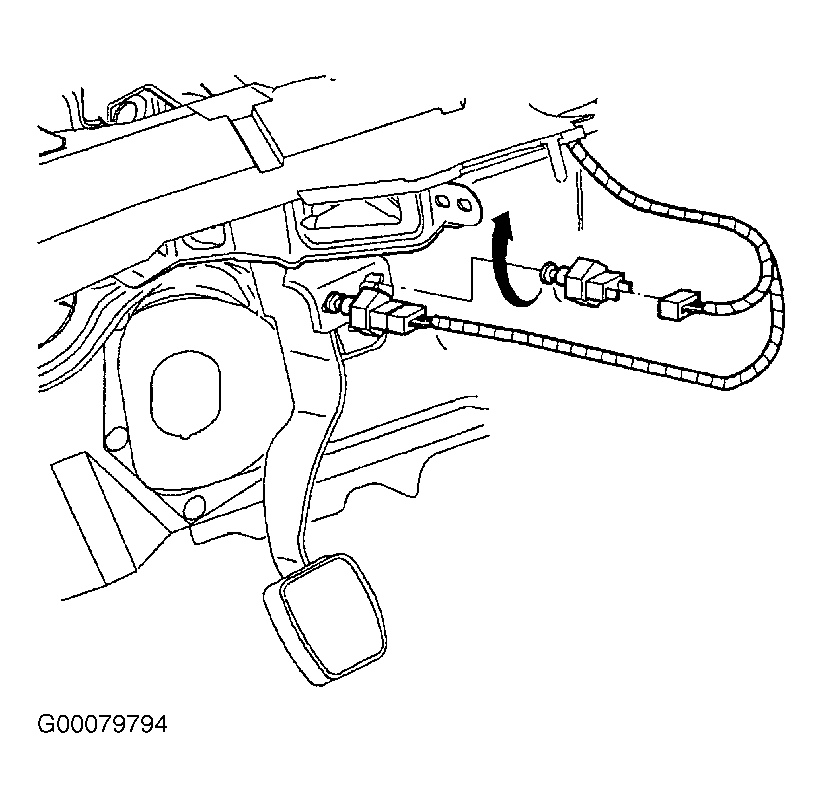

Install switch into bracket and rotate 180 degrees. Install switch electrical connector. See Fig 1 . Adjust stoplamp switch by depressing brake pedal while pulling out plunger on stoplamp switch, then lift up on brake pedal.
