Park Lock Switch: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install connector body to control assembly. Install park lock switch to control assembly. See Fig 2 . Insert shift lock control solenoid electrical terminals into connector body. See Fig 1 .
  2. Install automatic transaxle control assembly. Enable the SIR system. See AIR BAG DEACTIVATION PROCEDURES article in GENERAL INFORMATION.
Fig 1: Removing & Installing Park Lock Terminals
G00079804Courtesy of GENERAL MOTORS CORP.

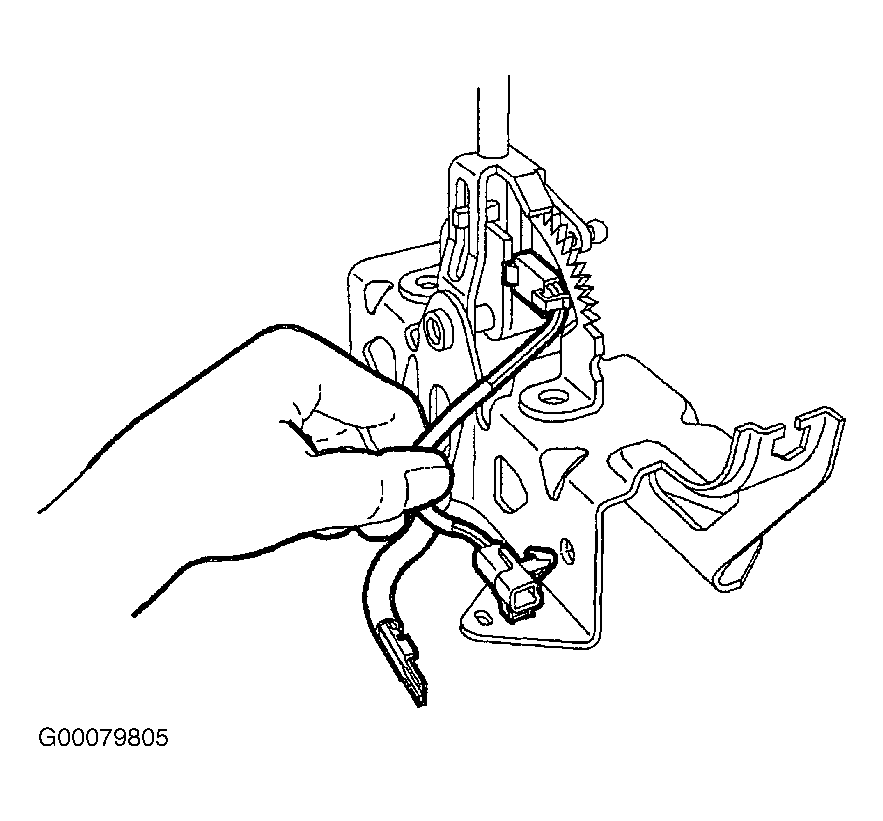

Fig 2: Removing & Installing Park Lock Switch
G00079805Courtesy of GENERAL MOTORS CORP.
