Timing Belt Replacement (In-Vehicle): Notes

WARNING: This page is about a different car, the 2002 Saturn LW300 and 2002 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

TOOLS REQUIRED

J42069 Timing Belt Alignment Kit
J42098 Crank Hub Torx Socket

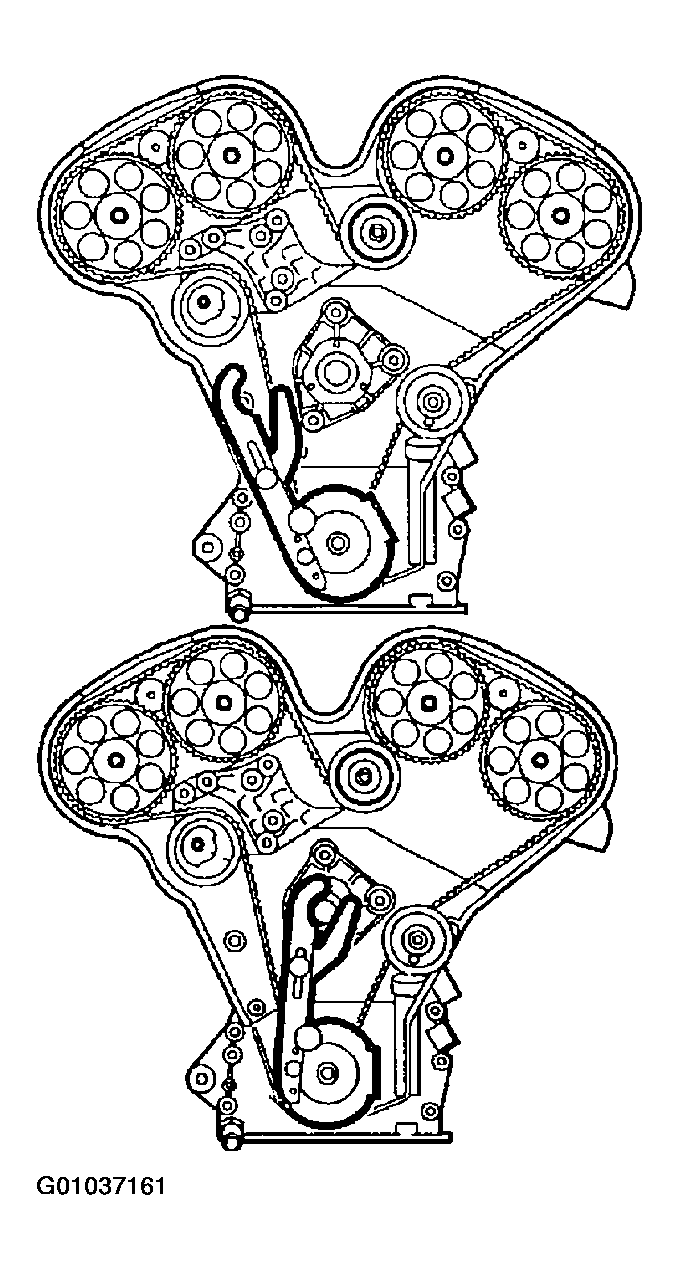

Fig 1: Using Timing Belt Special Tool
Courtesy of GENERAL MOTORS CORP.
