Home >> Saturn >> 2002 >> LW200 Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Diagnosis - 4T40-E >> Description & Operation >> Electronic Components >> Notes

Electronic Components: Notes

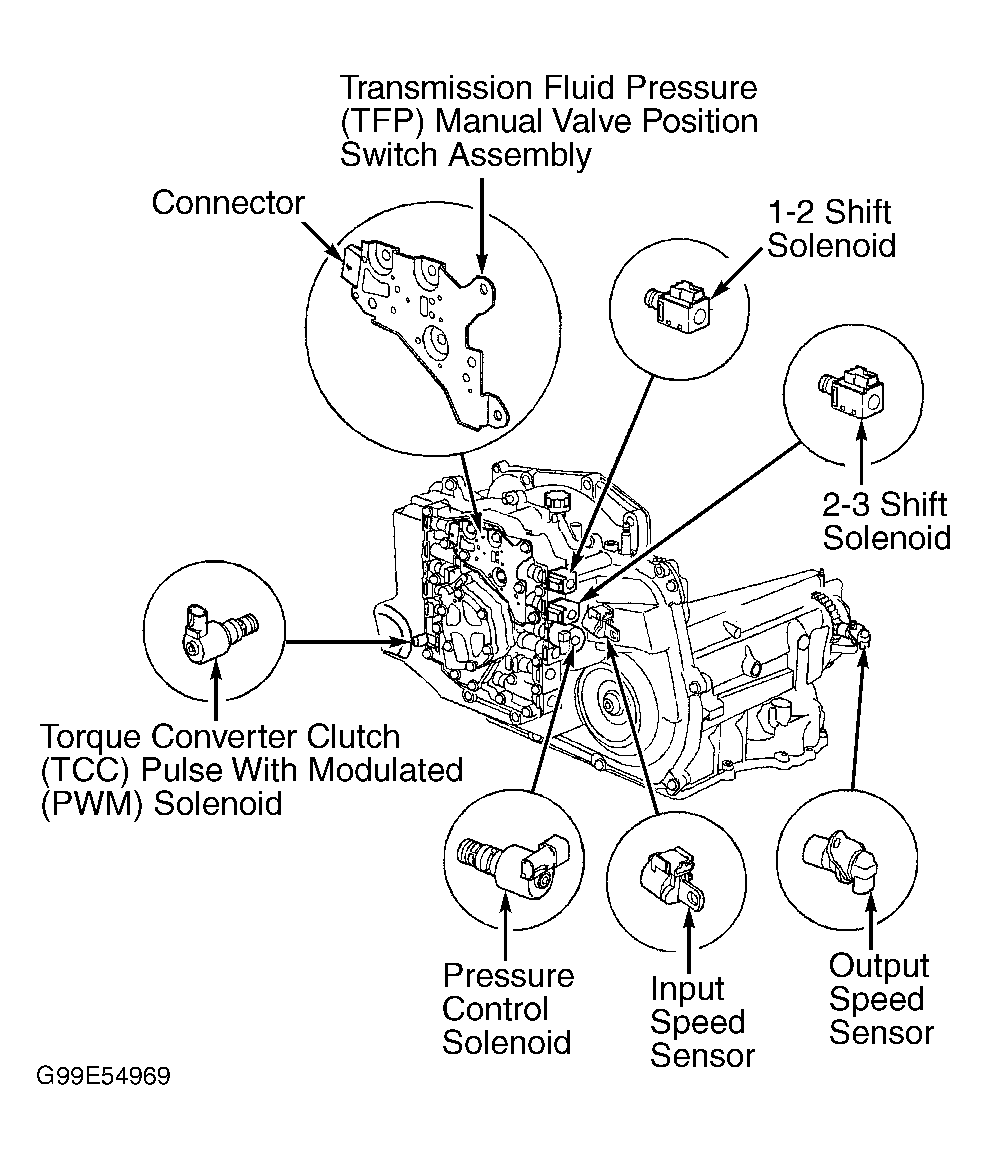

NOTE: To locate electronic components, refer to illustration. See Figure .
