PID Value Charts: 3.0L

WARNING: This page is about a different car, the 2003 Saturn LW300, 2003 Saturn LW200, 2003 Saturn L300, and 2003 Saturn L200. However, it is still accessible from the selected car via links, so may be relevant.

On the 3.0L, the 0-7 tables that are referred to in column 3 of the PID value illustrations are parameter definition tables that are accessed using the Tech II scan tool. To view the scan tool parameter definitions that are referred to in the illustrations, see Fig 1 .

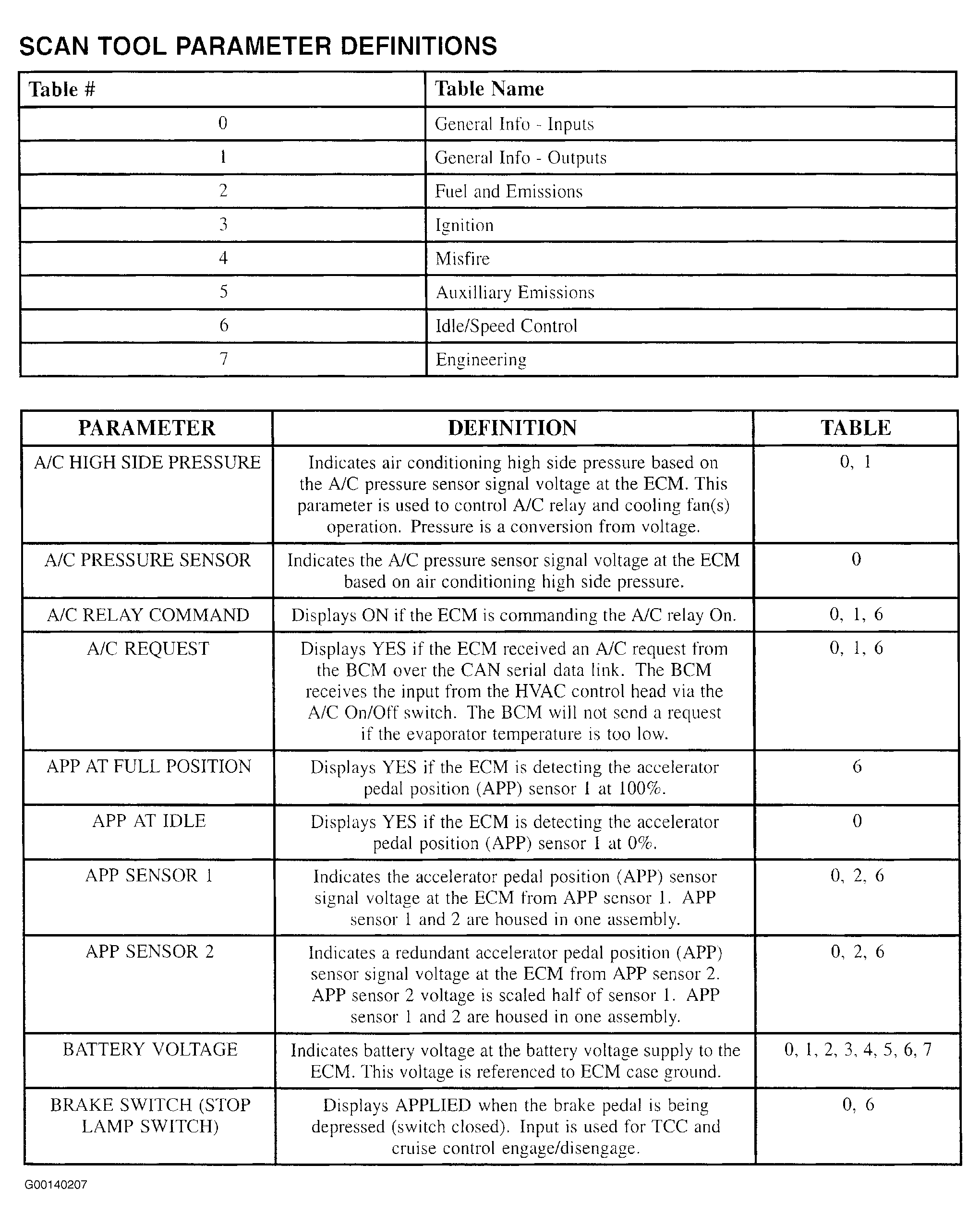

Fig 1: PID Values (1 Of 8)
G00140207Courtesy of GENERAL MOTORS CORP.

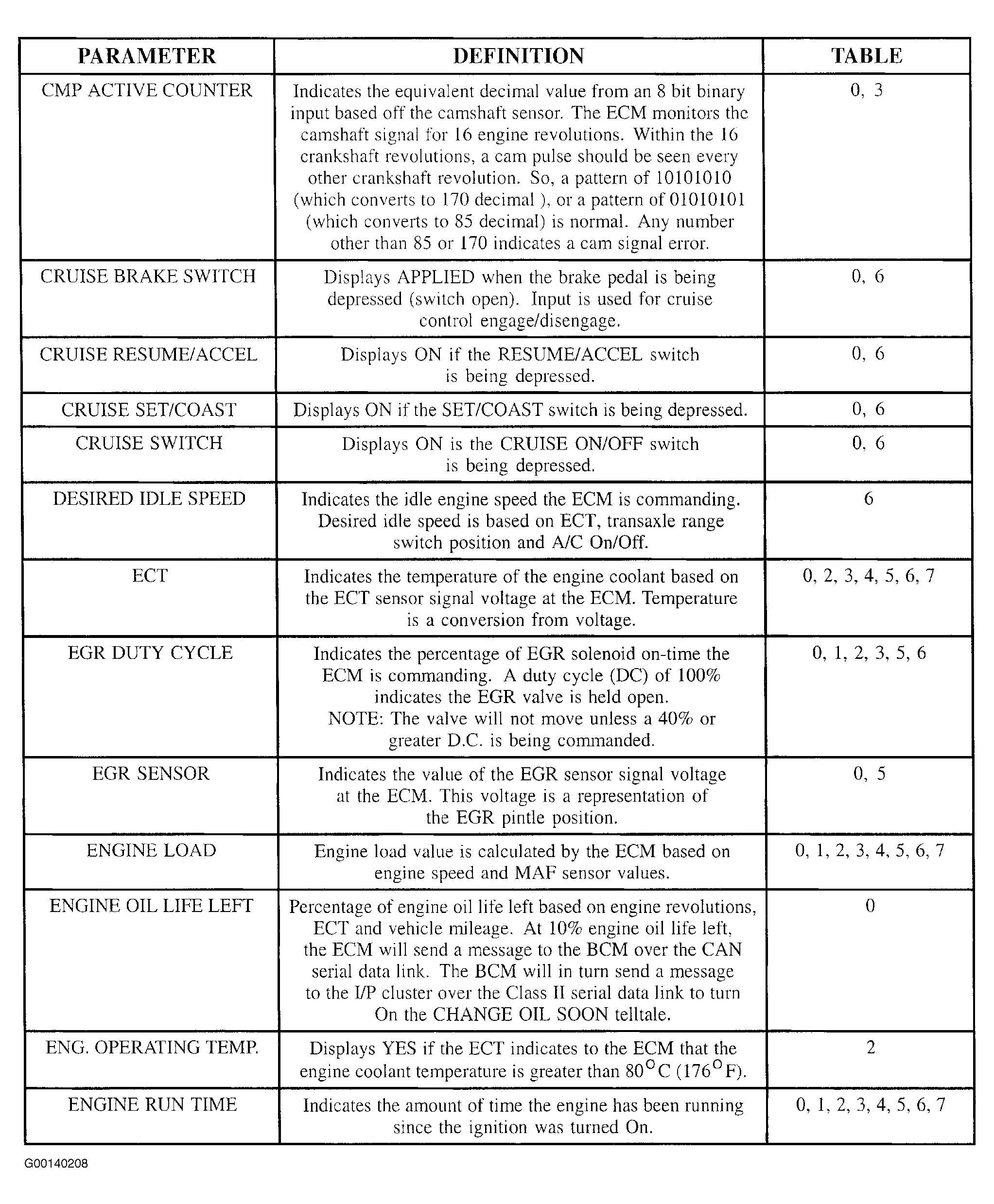

Fig 2: PID Values (2 Of 8)
G00140208Courtesy of GENERAL MOTORS CORP.

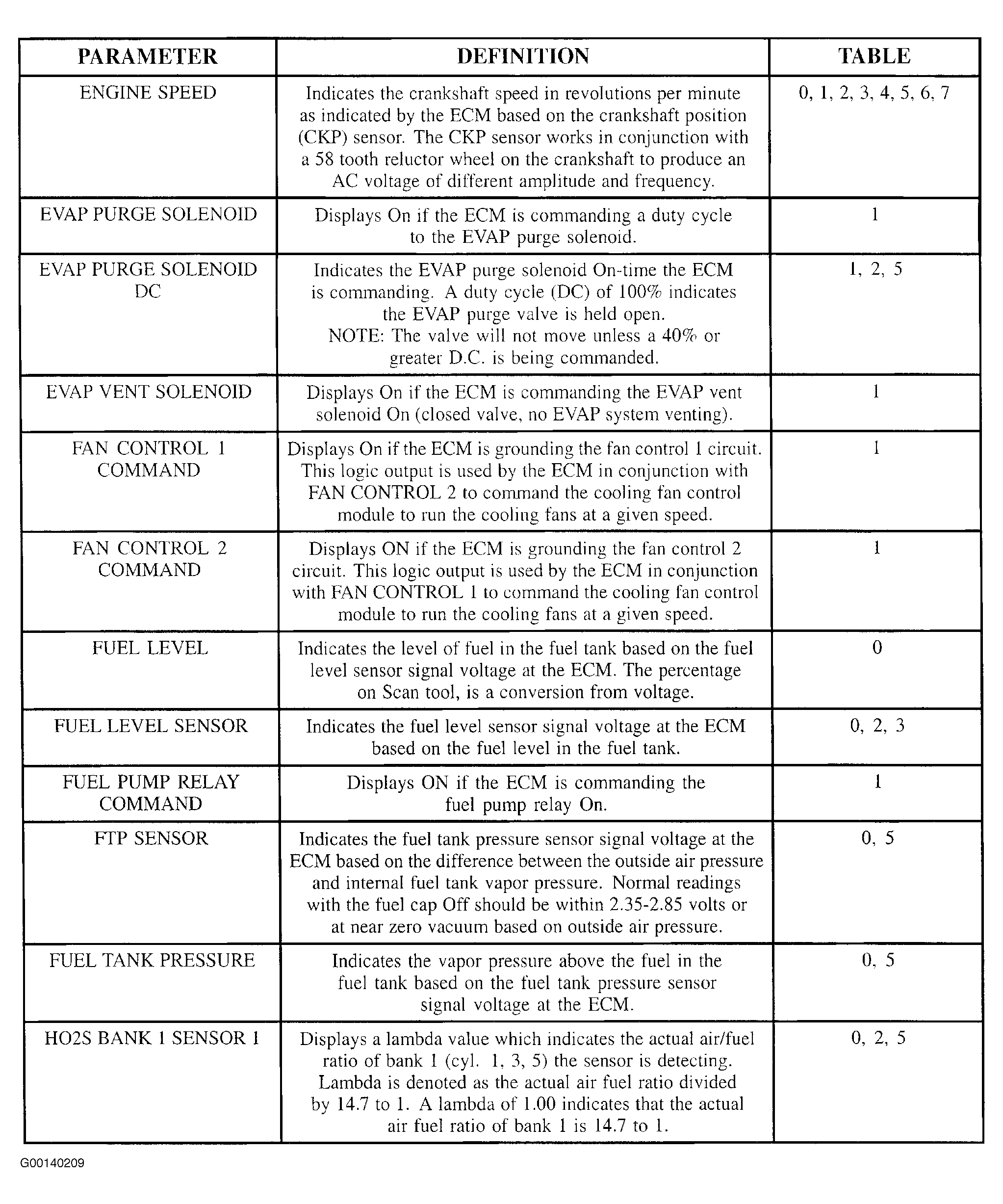

Fig 3: PID Values (3 Of 8)
G00140209Courtesy of GENERAL MOTORS CORP.

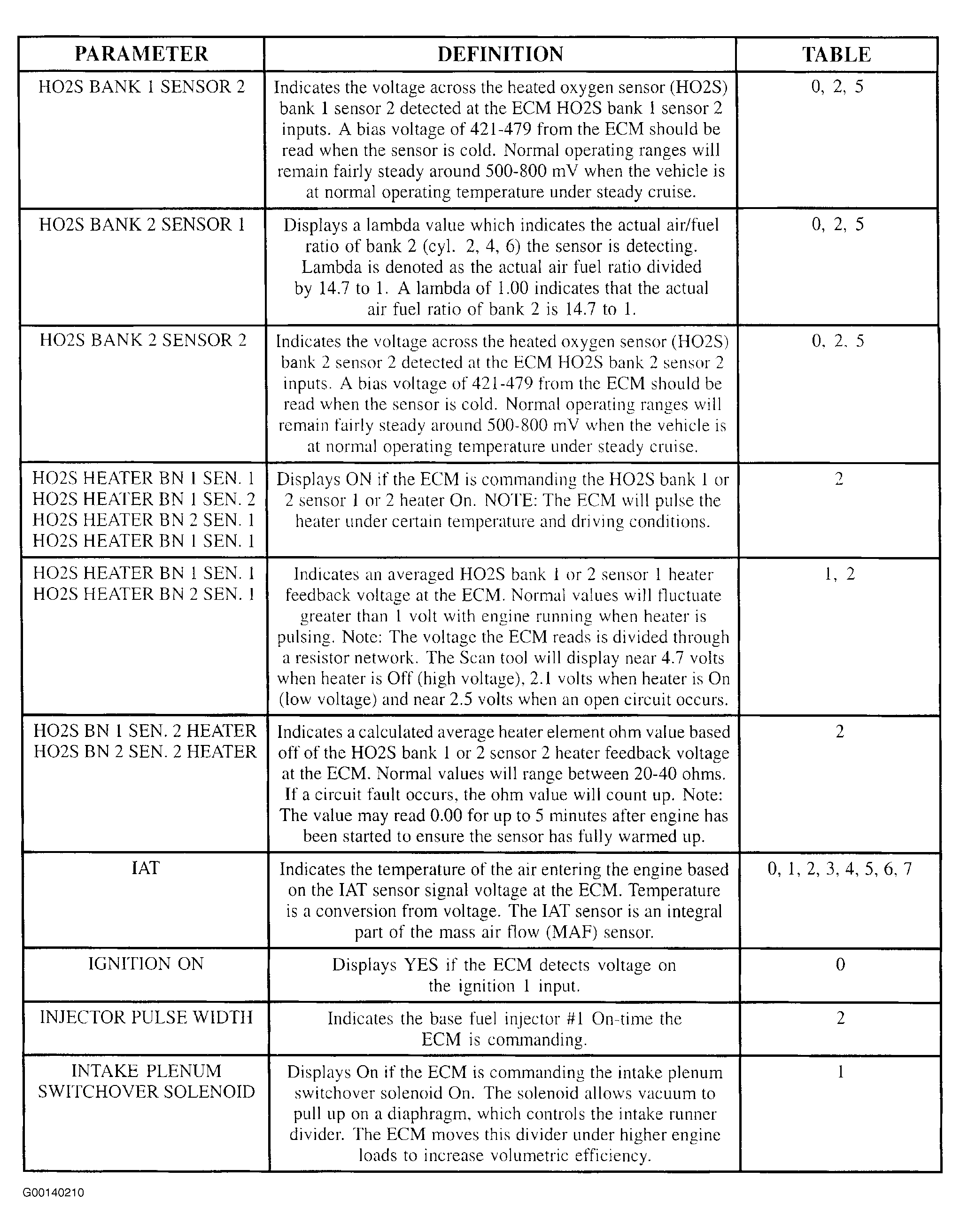

Fig 4: PID Values (4 Of 8)
G00140210Courtesy of GENERAL MOTORS CORP.

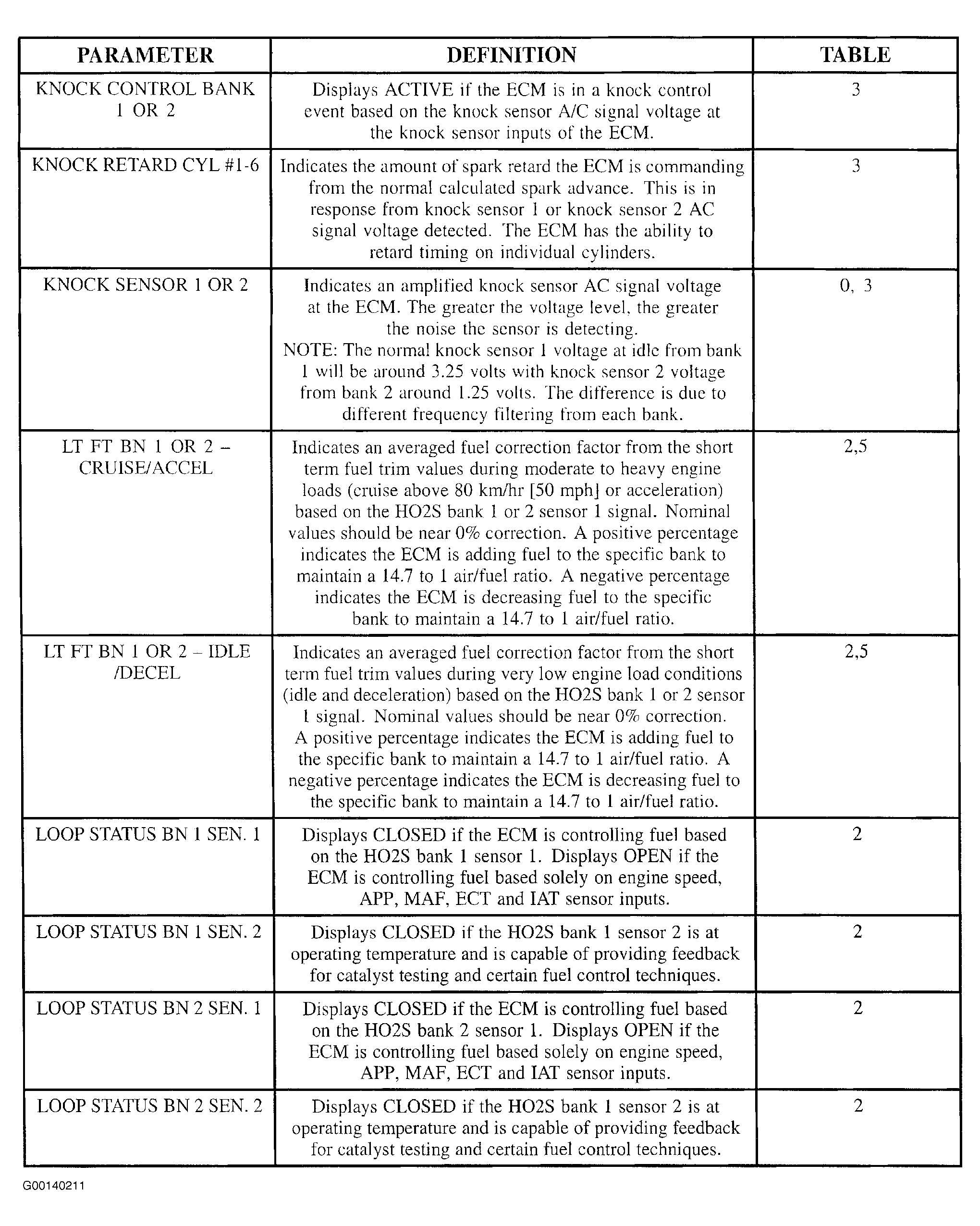

Fig 5: PID Values (5 Of 8)
G00140211Courtesy of GENERAL MOTORS CORP.

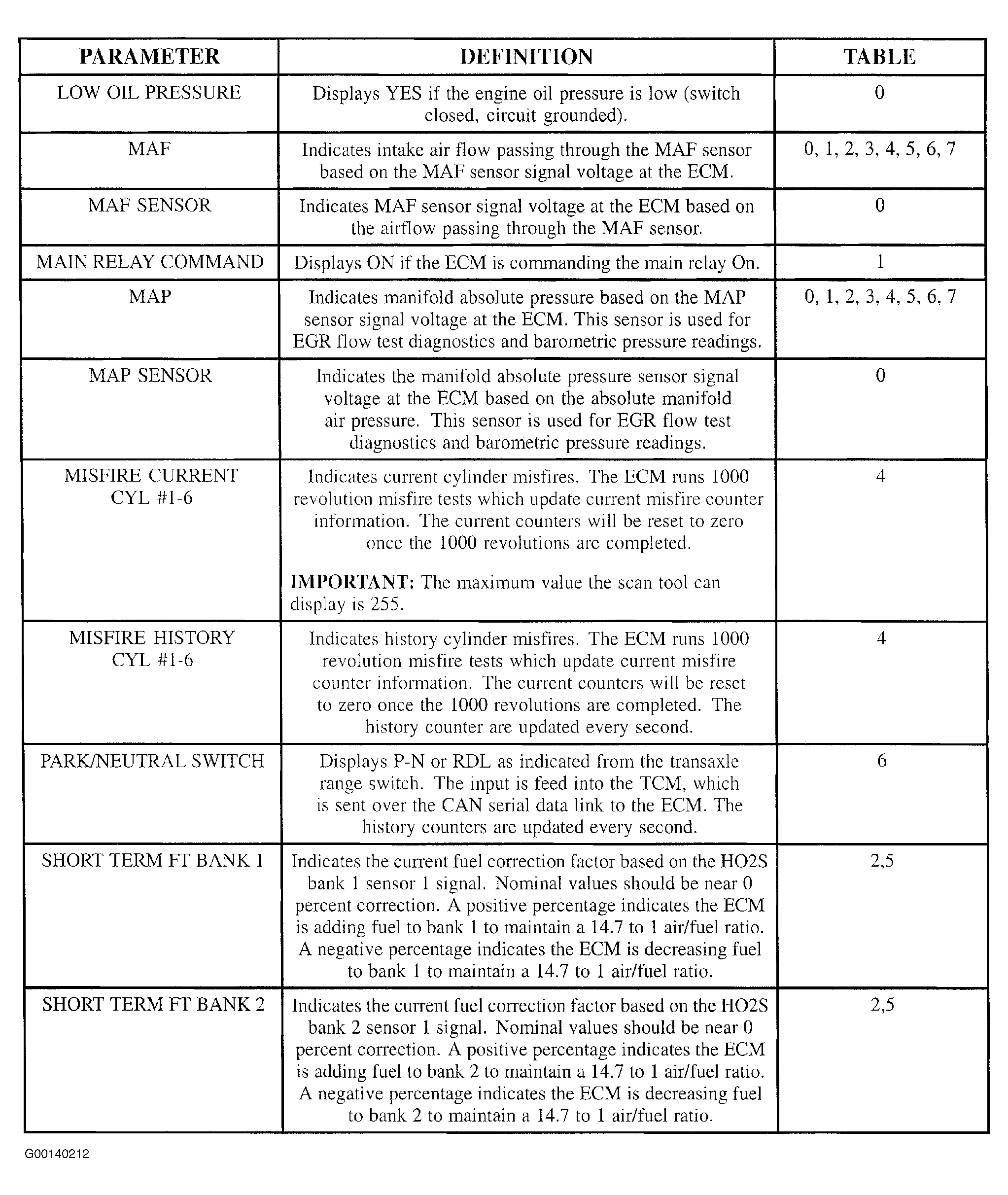

Fig 6: PID Values (6 Of 8)
G00140212Courtesy of GENERAL MOTORS CORP.

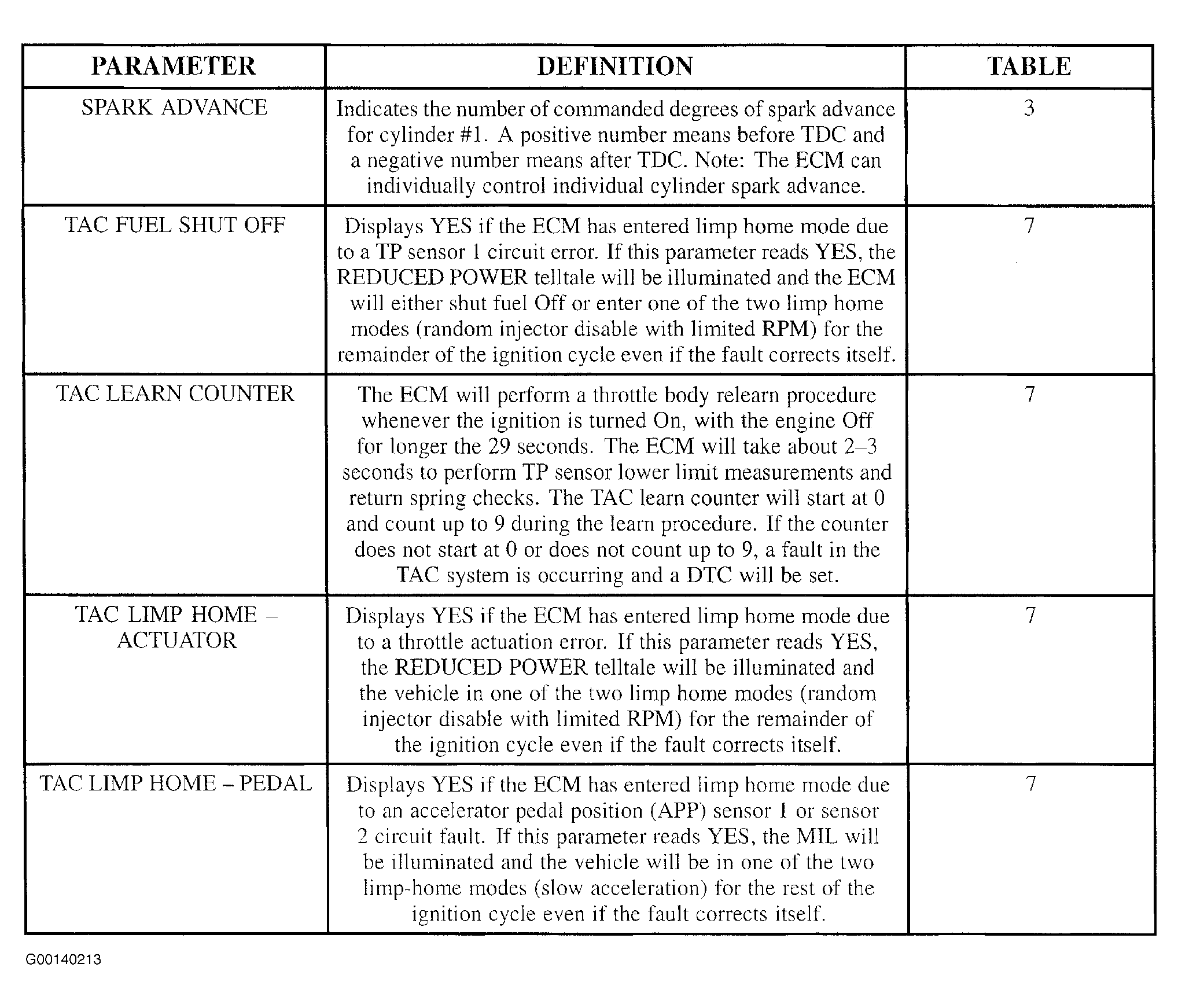

Fig 7: PID Values (7 Of 8)
G00140213Courtesy of GENERAL MOTORS CORP.

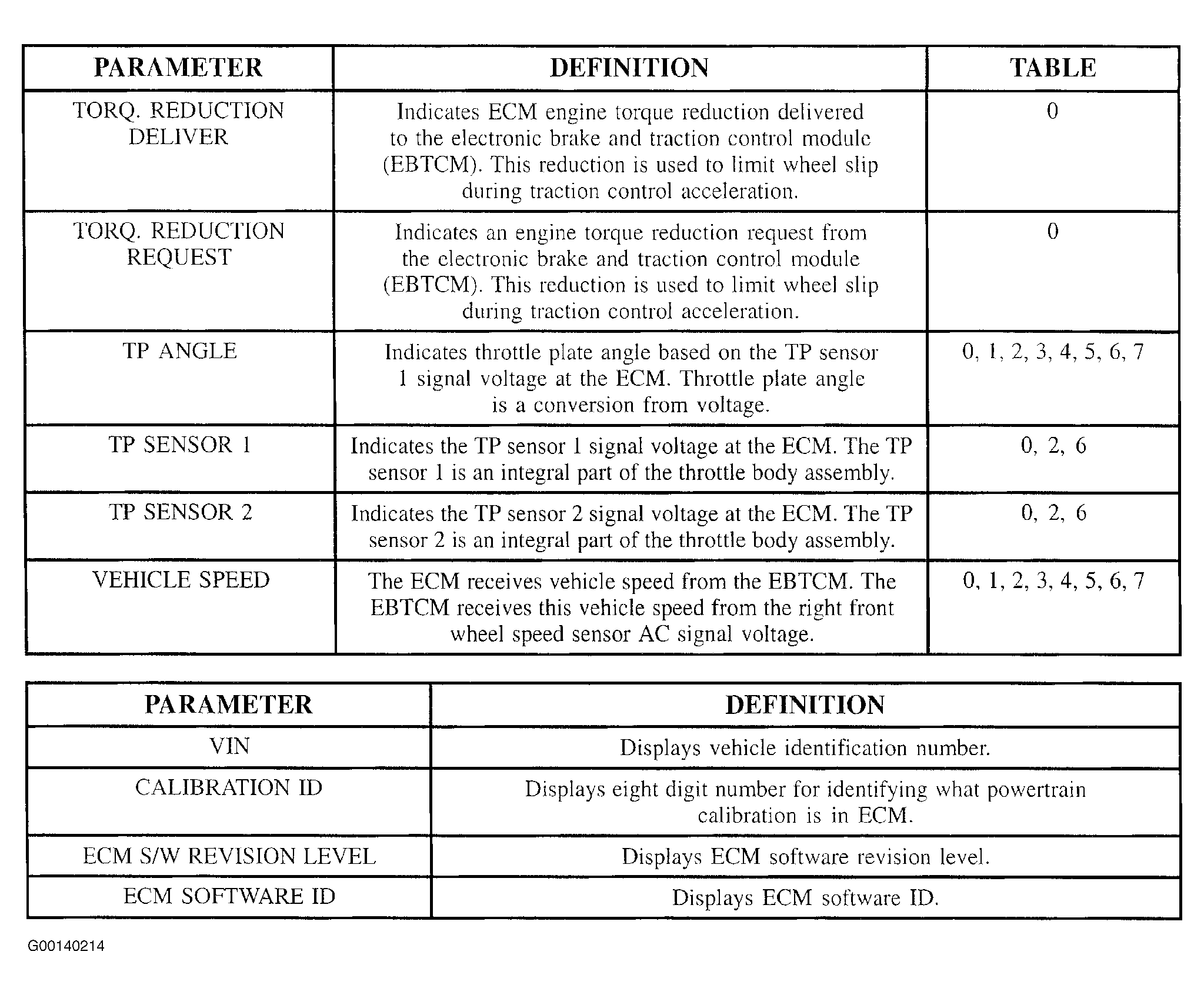

Fig 8: PID Values (8 Of 8)
G00140214Courtesy of GENERAL MOTORS CORP.
