Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn LW300, 2003 Saturn LW200, 2003 Saturn L300, and 2003 Saturn L200. However, it is still accessible from the selected car via links, so may be relevant.

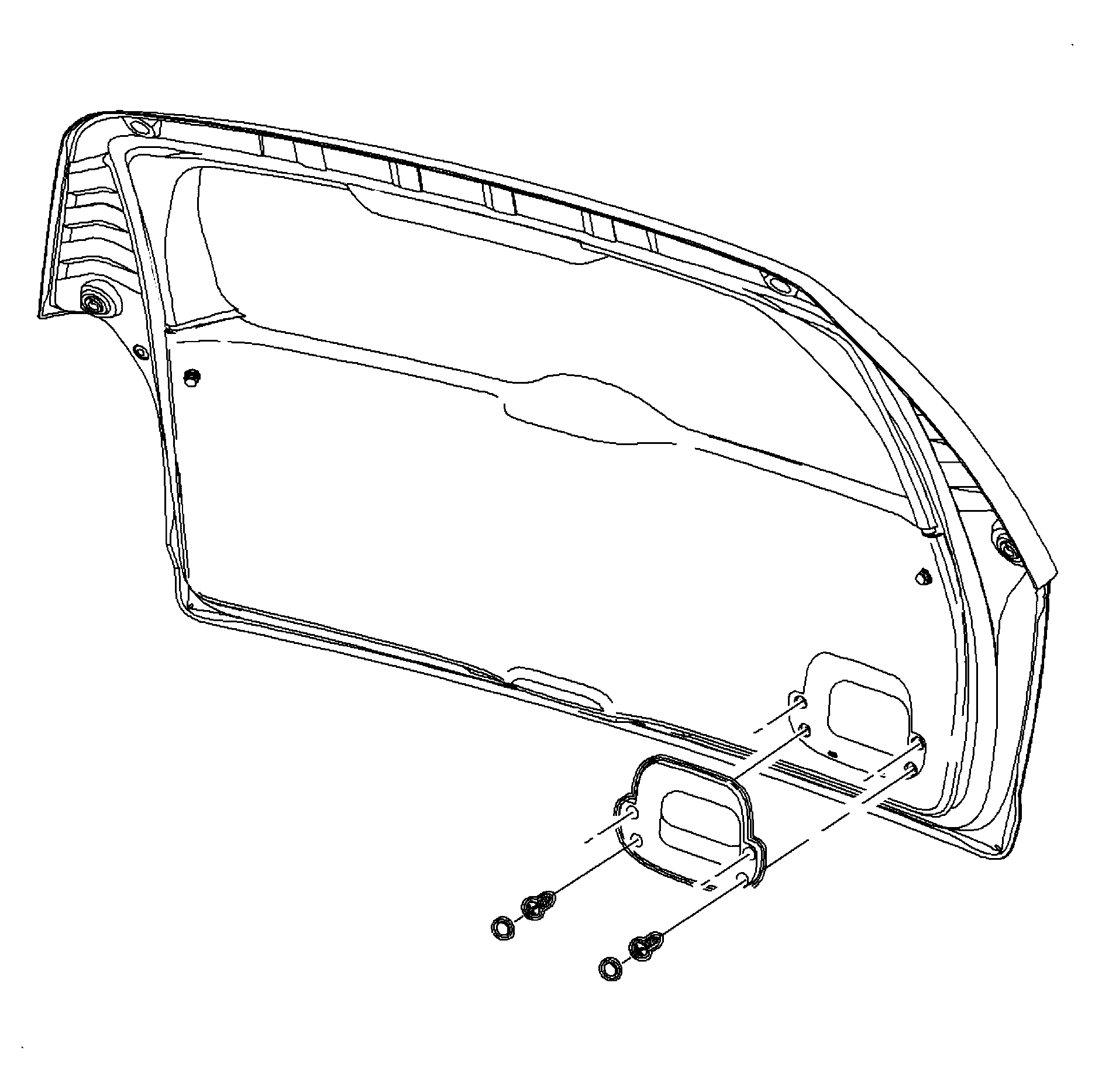

    Fig 1: Removing & Installing Liftgate Pullstrap
    GM896866Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Position the pull handle and install the pull handle fasteners.

    Tighten:  Tighten the fasteners to 5 N.m (44 lb in).

  2. Install the pull handle plugs.
