Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn LW300, 2003 Saturn LW200, 2003 Saturn L300, and 2003 Saturn L200. However, it is still accessible from the selected car via links, so may be relevant.

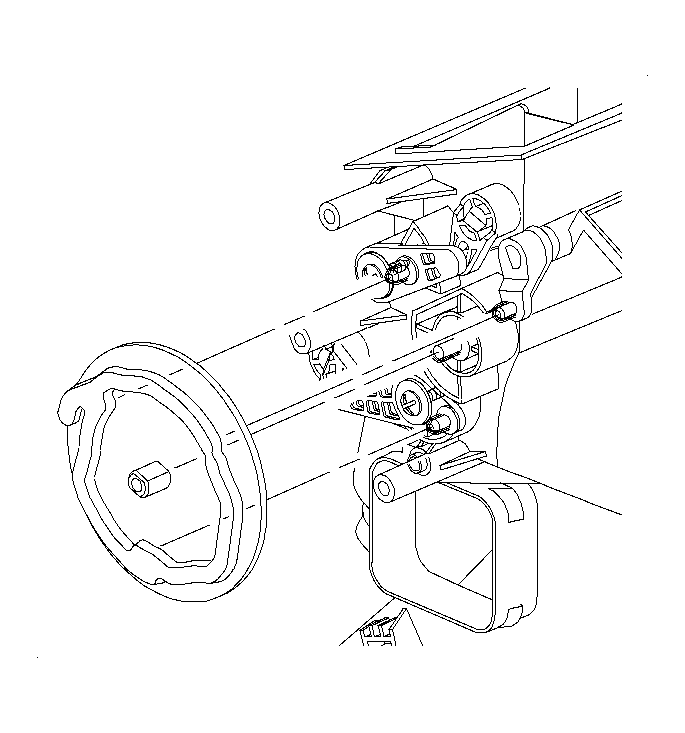

    Fig 1: Removing & Installing Mode Cam
    GM892694Courtesy of GENERAL MOTORS CORP.
  1. Install the mode cam.
  2. Rotate the cam to verify proper operation.

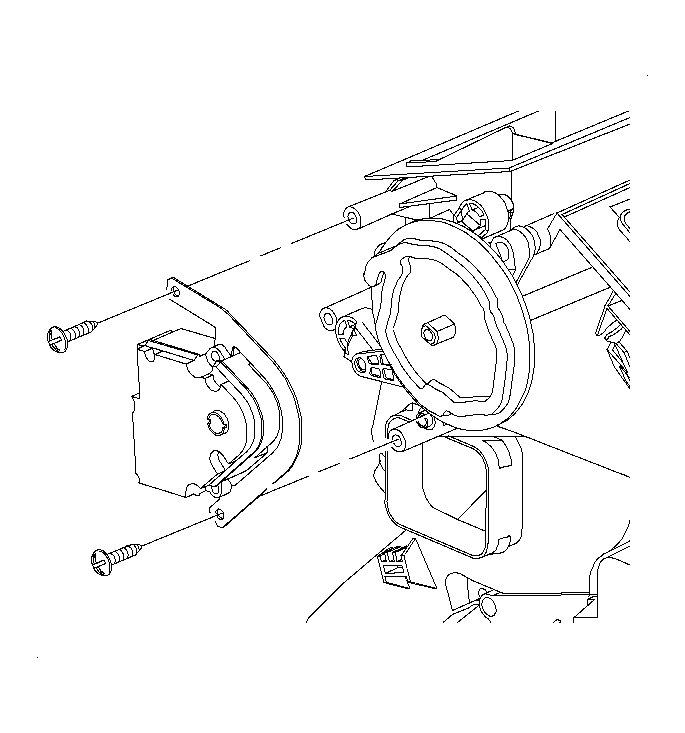

    3. Fig 2: Removing & Installing Mode Actuator
    GM892670Courtesy of GENERAL MOTORS CORP.
  3. Install the mode actuator.
    4. NOTE: Refer to FASTENER NOTIC in Cautions and Notices.
  4. Install the mode actuator screws.

    Tighten:  Tighten the screws to 1 N.m (9 lb in).

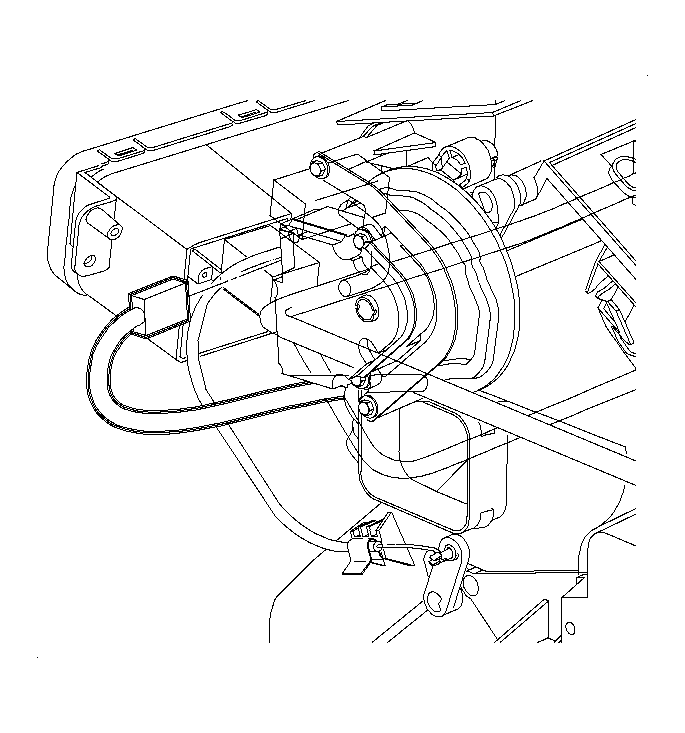

    5. Fig 3: Removing & Installing Mode Actuator Electrical Connector
    GM892662Courtesy of GENERAL MOTORS CORP.
  5. Connect the electrical connector to the mode actuator.
    6. Fig 4: Removing Retainer From Heater Outlet Assembly On Right Side To Remove Outlet
    GM897891Courtesy of GENERAL MOTORS CORP.
  6. Install the right side heater duct.
  7. Install the right side heater duct retainer.
    8. Fig 5: Installing Closeout Panel To Right Side Lower I/P
    GM896491Courtesy of GENERAL MOTORS CORP.
  8. Install the insulator support to the I/P.
  9. Install the I/P storage compartment. Refer to Compartment Replacement - Instrument Panel (I/P) in Instrument Panel, Gages and Console.
