Select Fit Piston Selection

WARNING: This page is about a different car, the 2002 Saturn LW300 and 2002 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

Select the proper size piston for each cylinder bore after cylinder has been honed.

Measure cylinder bore. Refer to the charts below for the correct size piston to use for that cylinder.

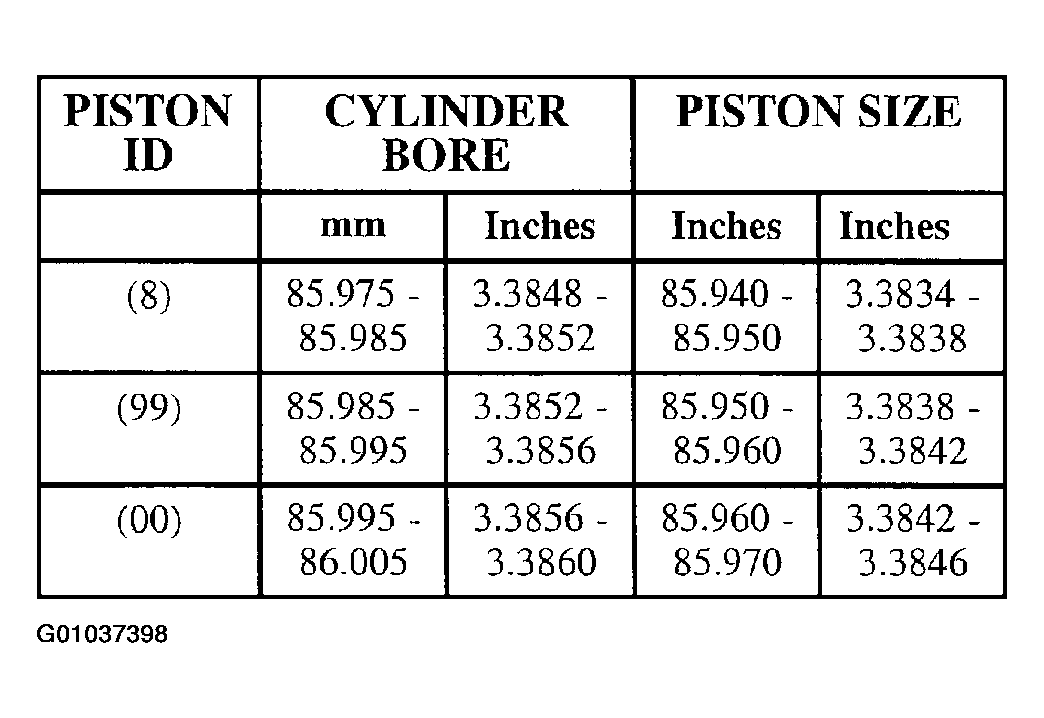

Fig 1: Piston Fit Selection Chart (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

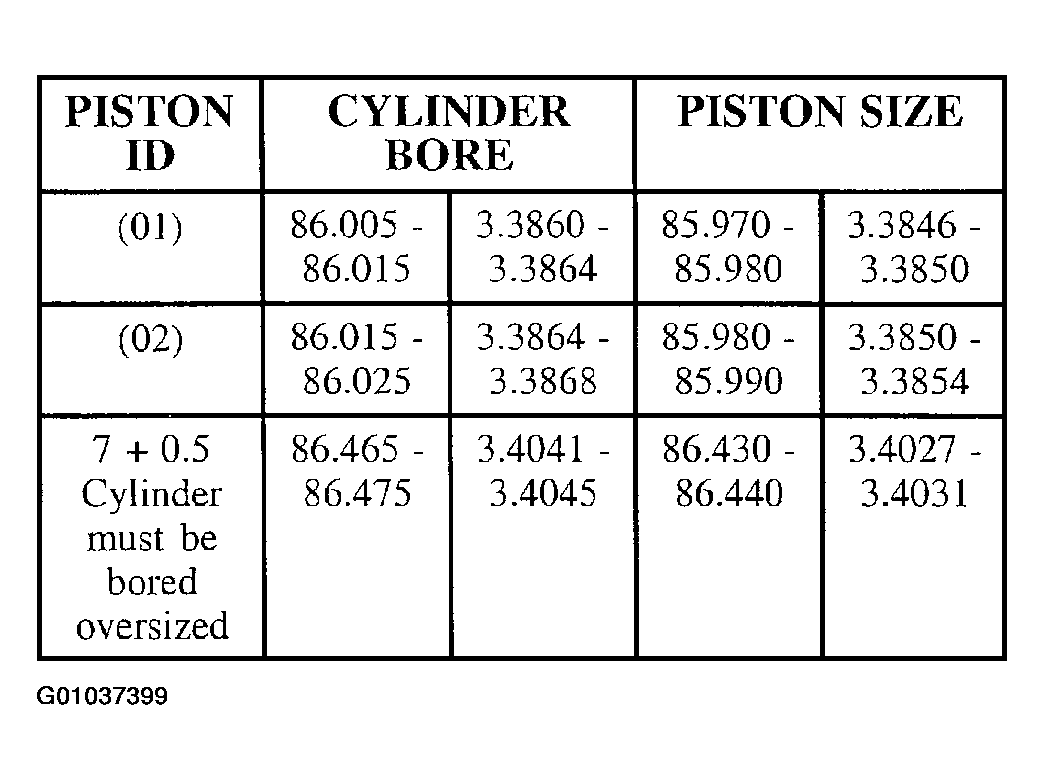

Fig 2: Piston Fit Selection Chart (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
