Intake Manifold (Unit Repair): Removal
WARNING: This page is about a different car, the 2002 Saturn LW300 and 2002 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

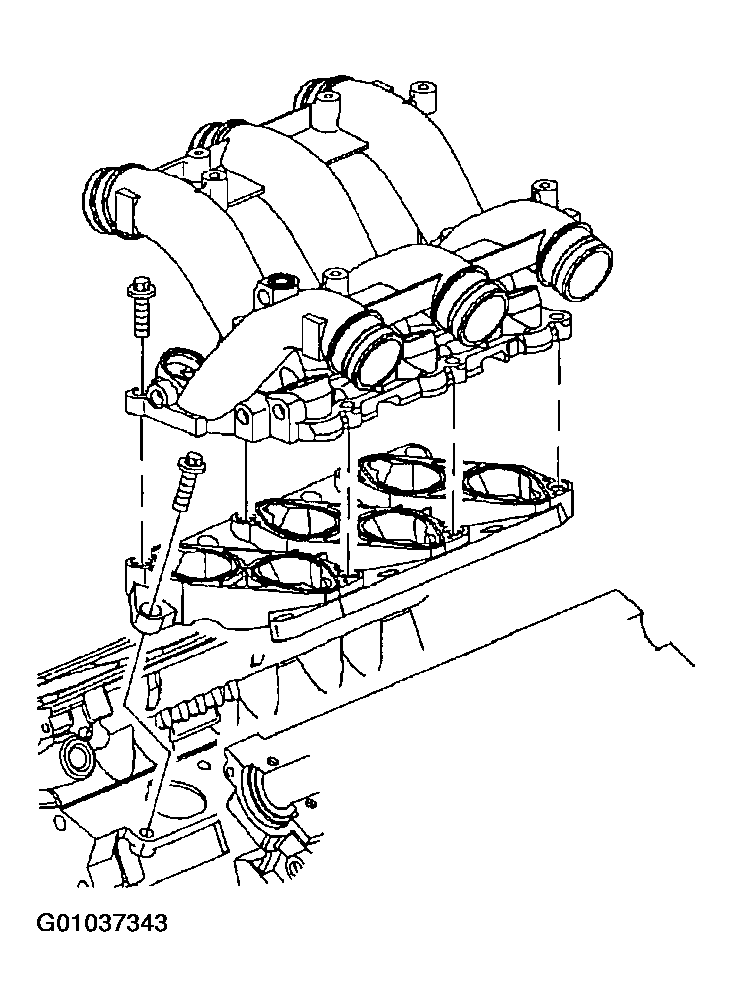

- Remove intake manifold bolts.
- Remove intake manifold.
IMPORTANT:
It is not necessary to remove fuel rail to remove intake manifold.
- Remove seals.
- Remove intake manifold spacer bolts.
- Remove intake manifold spacer.
Courtesy of GENERAL MOTORS CORP.
