Engine Rear Cover (Unit Repair): Installation

WARNING: This page is about a different car, the 2002 Saturn LW300 and 2002 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Ensure that the knock sensor and camshaft sensor wires are routed correctly before installing cover.

Install rear timing belt cover.

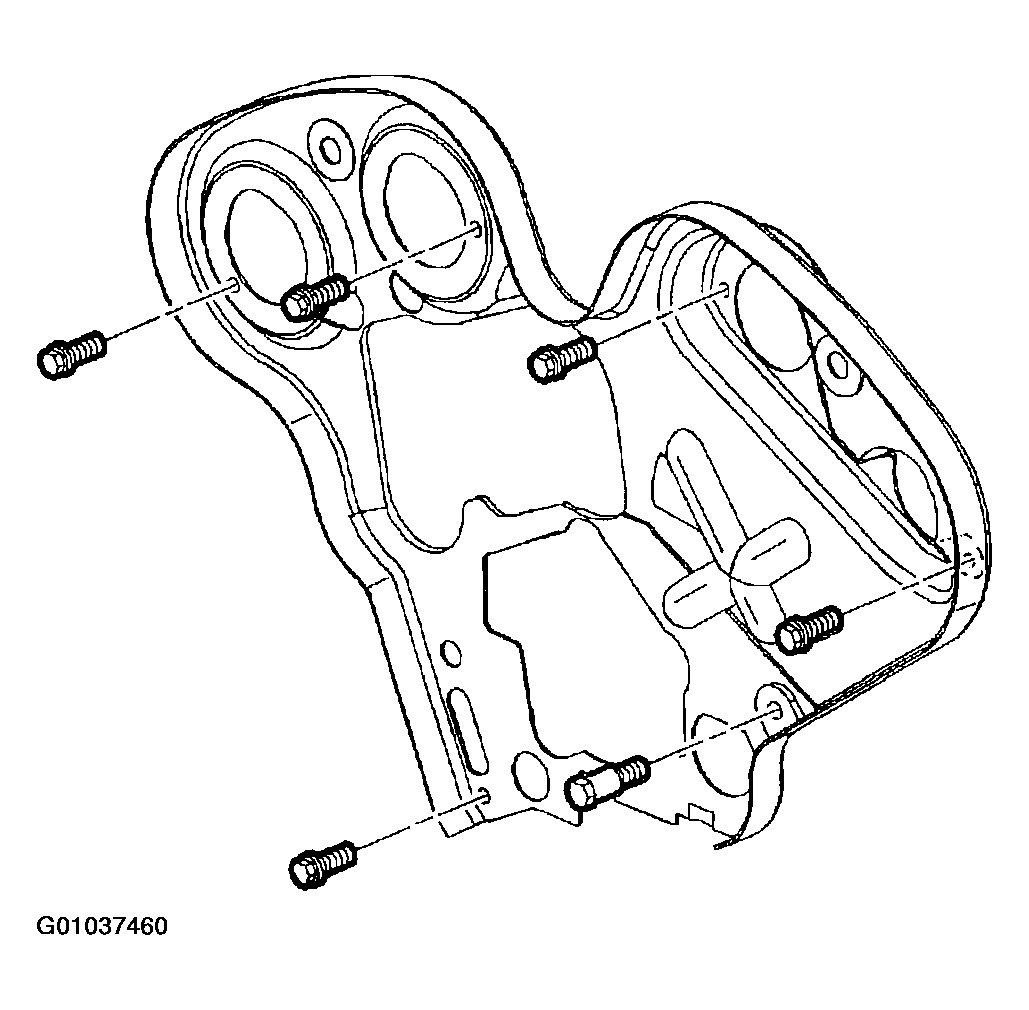

Fig 1: Installing Rear Timing Cover
Courtesy of GENERAL MOTORS CORP.
Coat engine cover bolts with Loctite 242° thread locking compound (or equivalent).
Install rear timing belt cover bolts.
Torque:

Rear Timing Belt Cover Bolt: 8 N.m (71 in-lbs)
Install rear timing belt thread pin.
Torque:

Rear Timing Belt Cover Threaded Pin: 10 N.m (89 in-lbs)
Retighten the oil pump bolts.
Torque:

Oil Pump Bolts: 9 N.m (80 in-lbs)

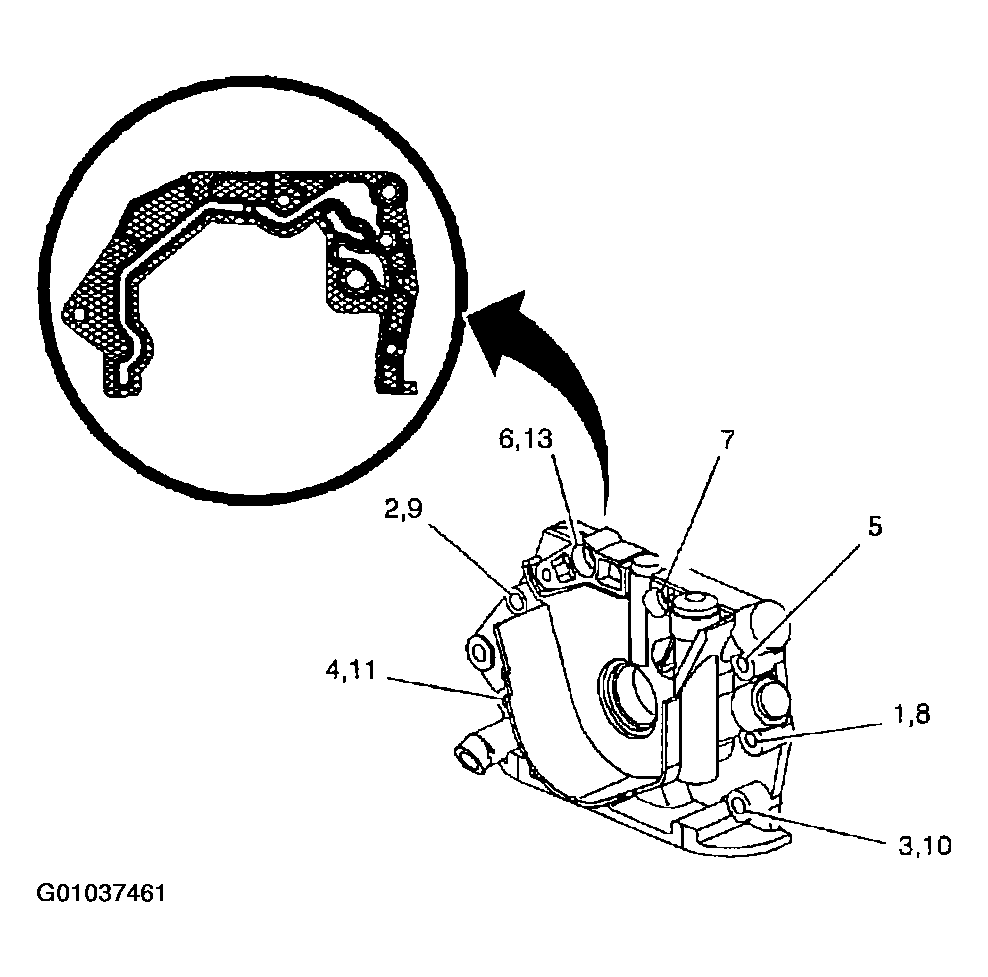

Fig 2: Retightening Oil Pump Bolts In Sequence
Courtesy of GENERAL MOTORS CORP.
