Engine FLEXPLATE Replacement (In-Vehicle): Installation

WARNING: This page is about a different car, the 2002 Saturn LW300 and 2002 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

Install the flexplate to the crankshaft.
- Use new flex plate bolts.
- Coat the new flex plate bolts with Loctite® 272 Threadlock or equivalent.
Use the crank hub Torx socket J42098 to counterhold the crankshaft and install the flexplate bolts.
Torque:

Flex Plate Bolt: 65 N.m (48 ft-lbs)+ 30° + 15°

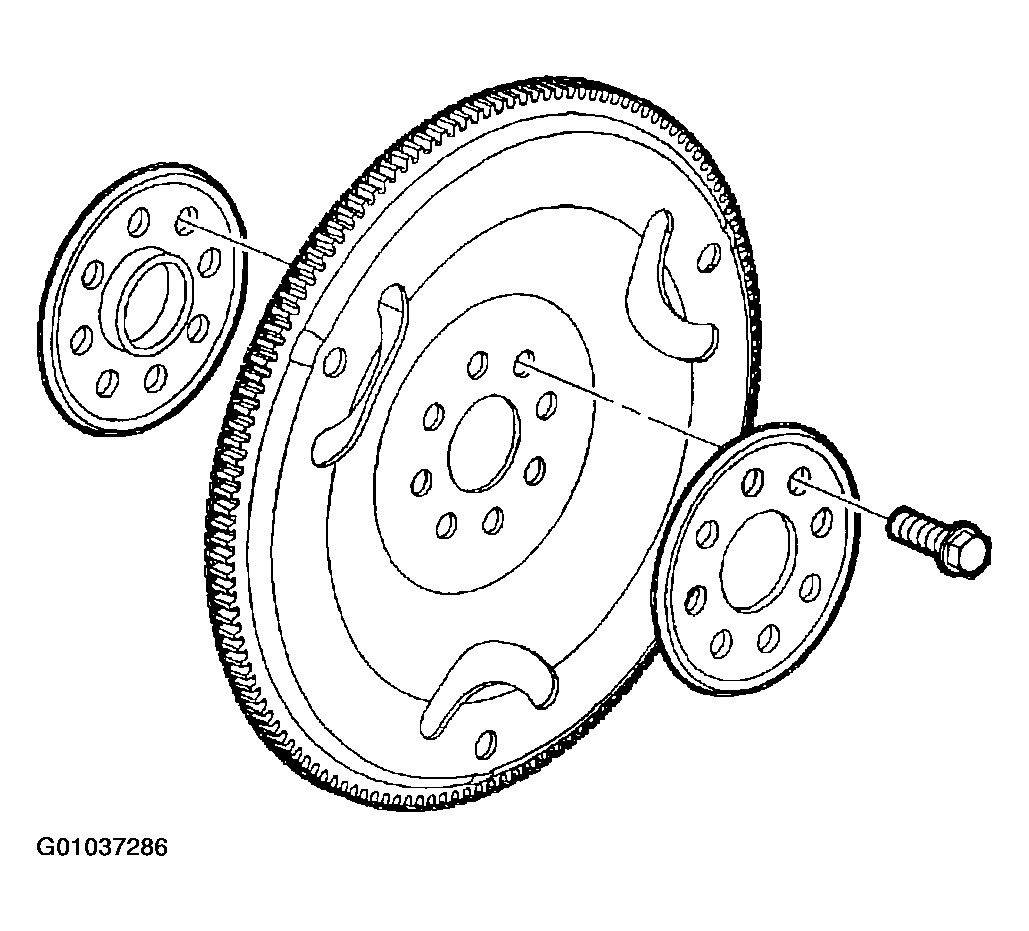

Fig 1: Installing Flexplate Spacers In Appropriate Locations
Courtesy of GENERAL MOTORS CORP.
Install the transmission. Refer to REMOVAL & INSTALLATION - A/T .
