Engine Diagnostic Chart

WARNING: This page is about a different car, the 2002 Saturn LW300 and 2002 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

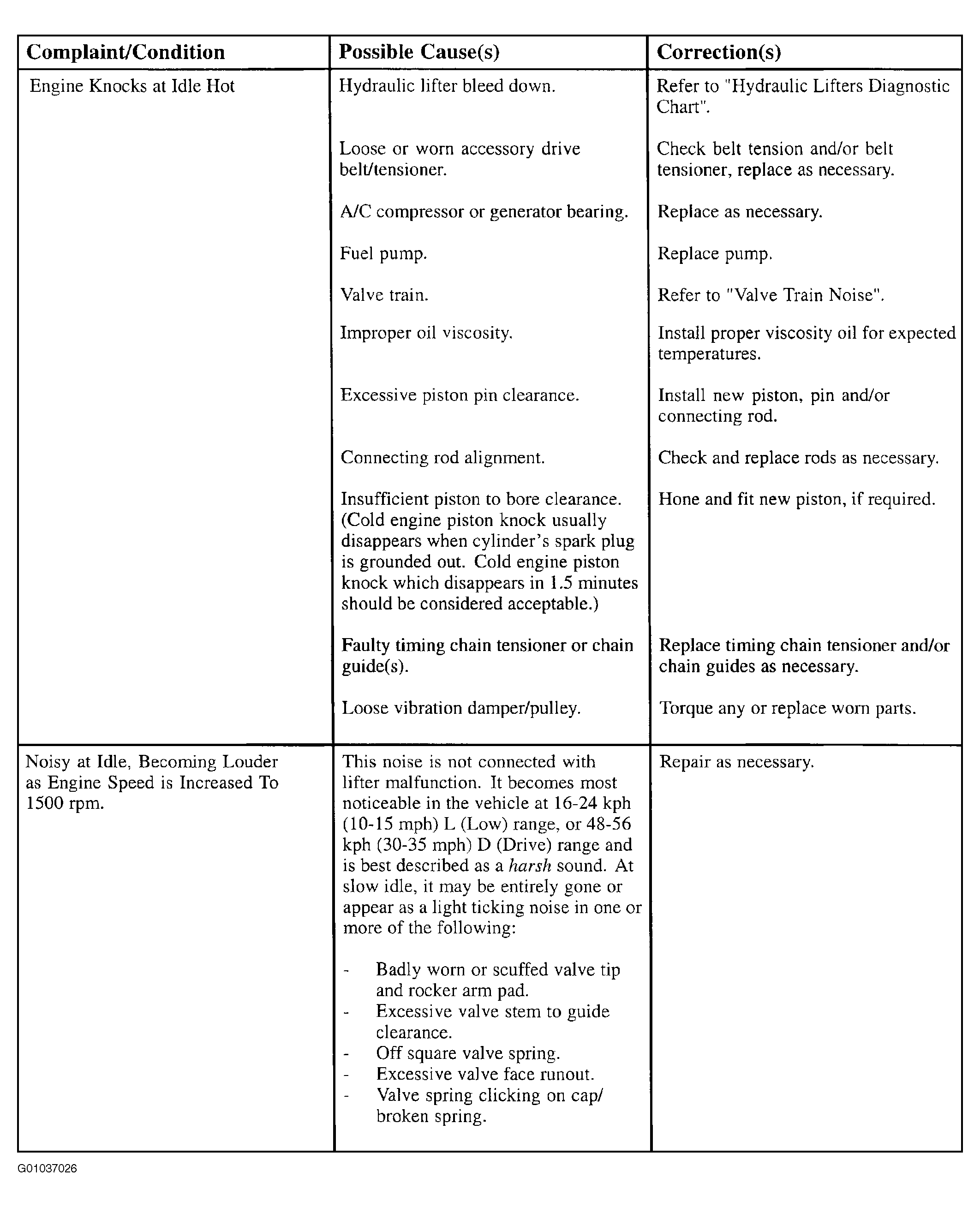

Fig 1: Engine Diagnostic Chart (1 Of 6)

Courtesy of GENERAL MOTORS CORP.

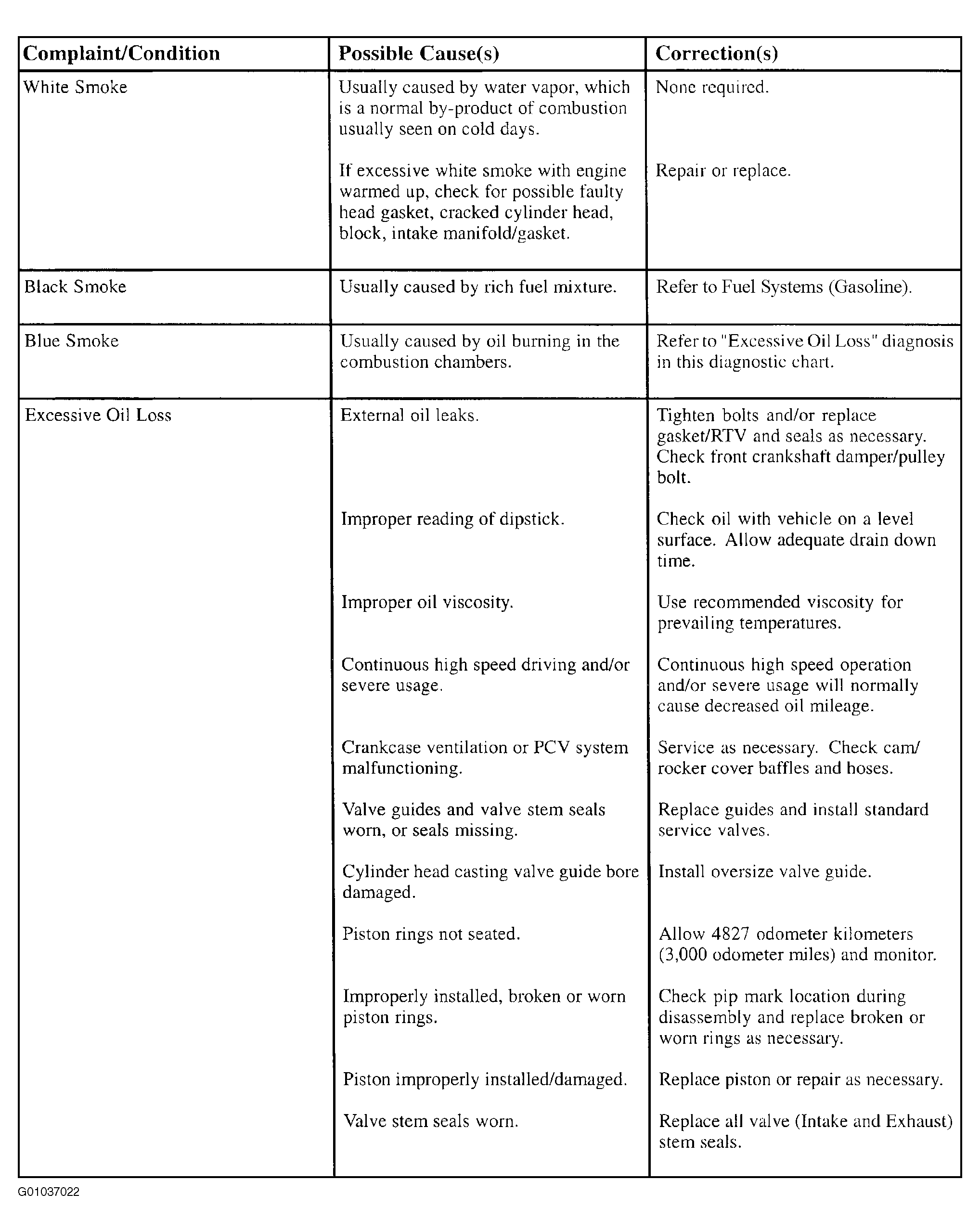

Fig 2: Engine Diagnostic Chart (2 Of 6)

Courtesy of GENERAL MOTORS CORP.

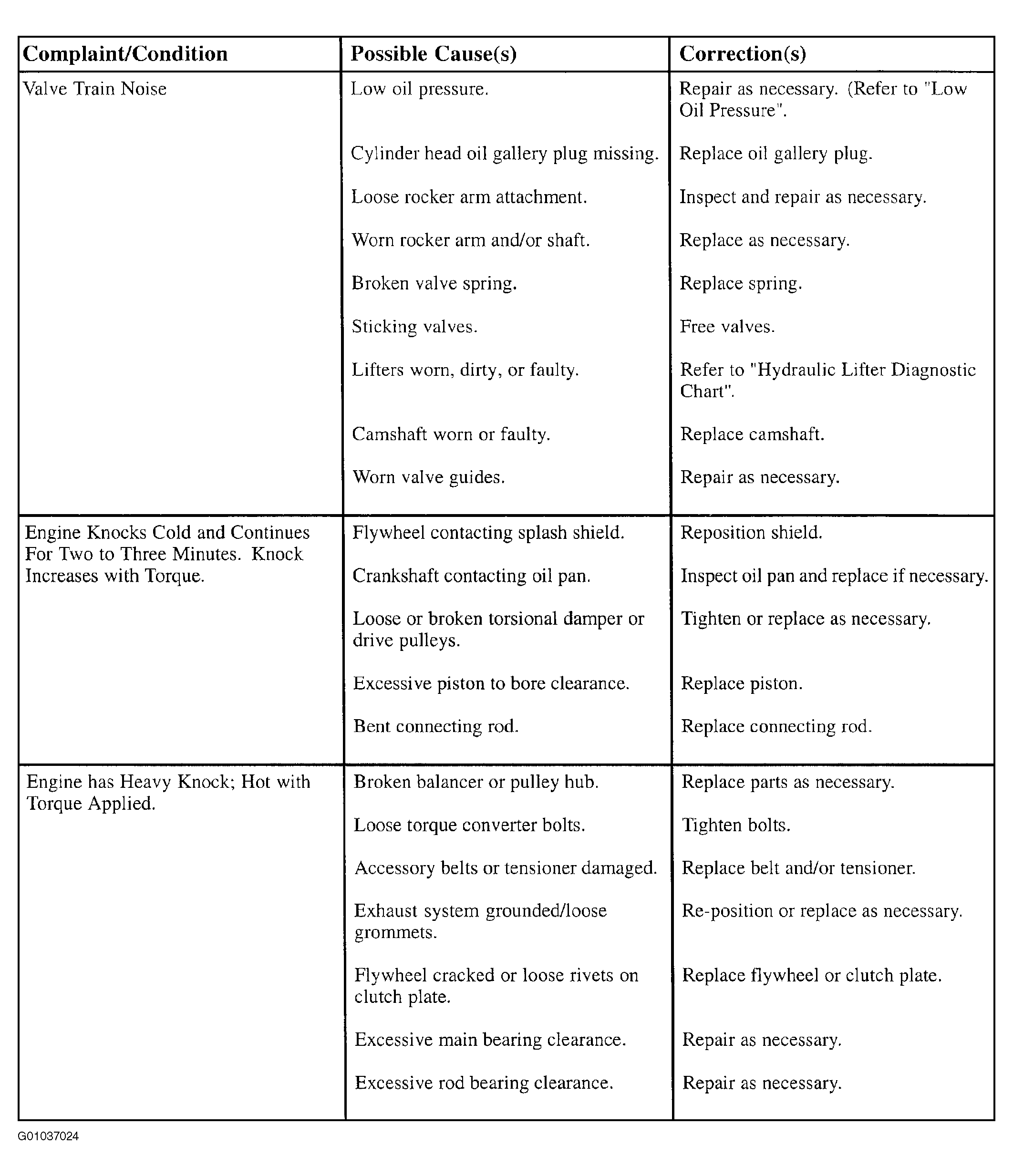

Fig 3: Engine Diagnostic Chart (3 Of 6)

Courtesy of GENERAL MOTORS CORP.

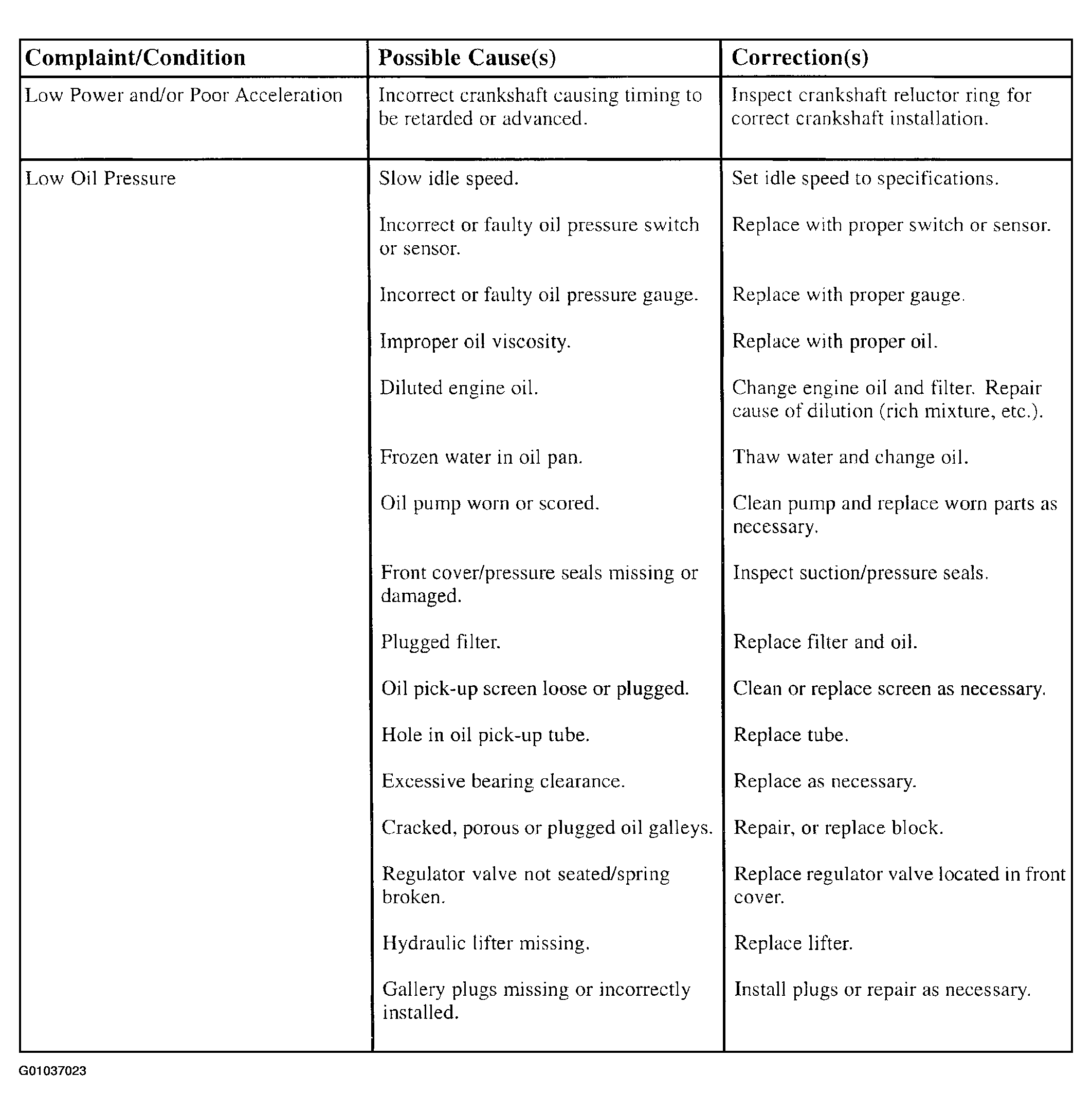

Fig 4: Engine Diagnostic Chart (4 Of 6)

Courtesy of GENERAL MOTORS CORP.

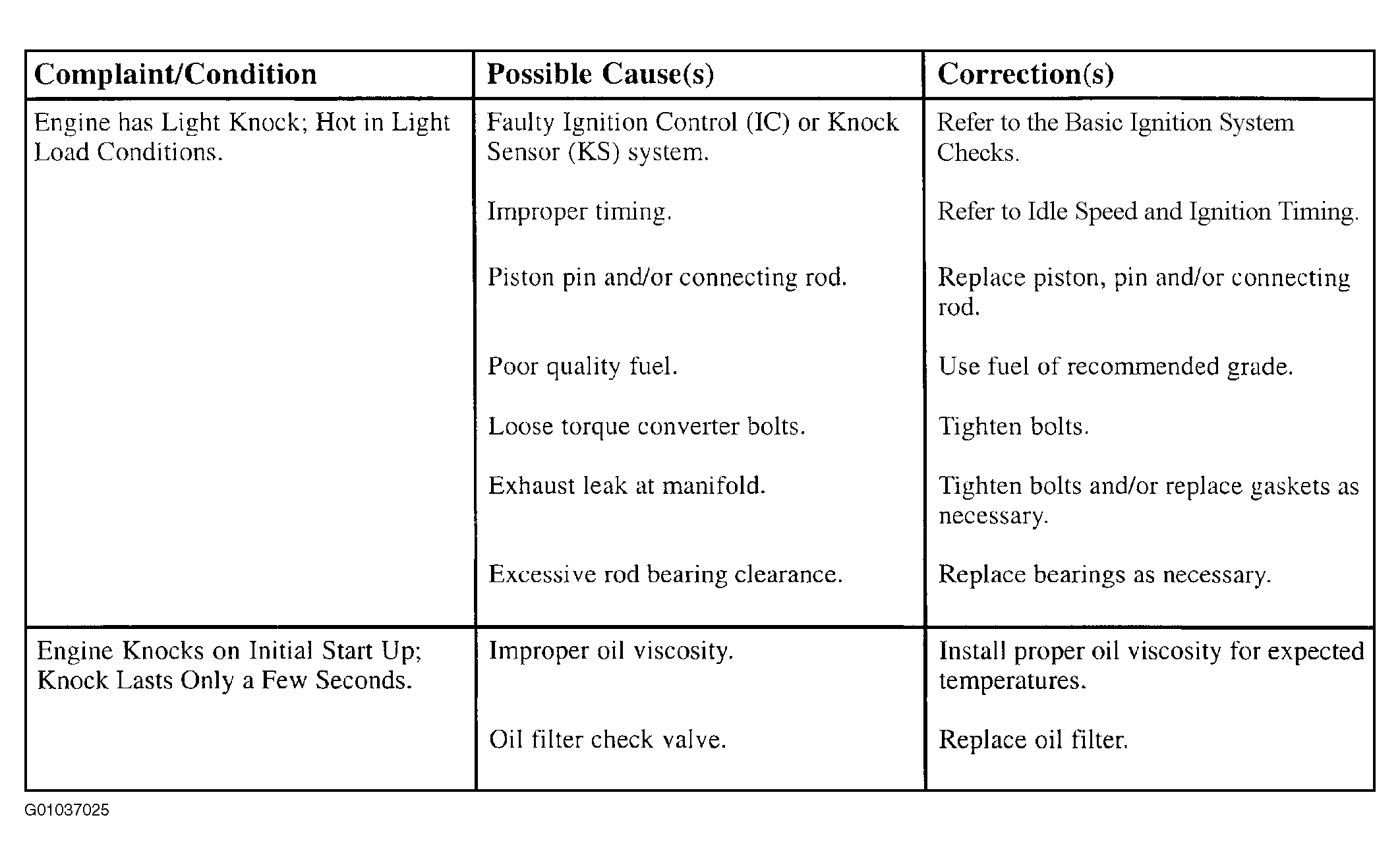

Fig 5: Engine Diagnostic Chart (5 Of 6)

Courtesy of GENERAL MOTORS CORP.

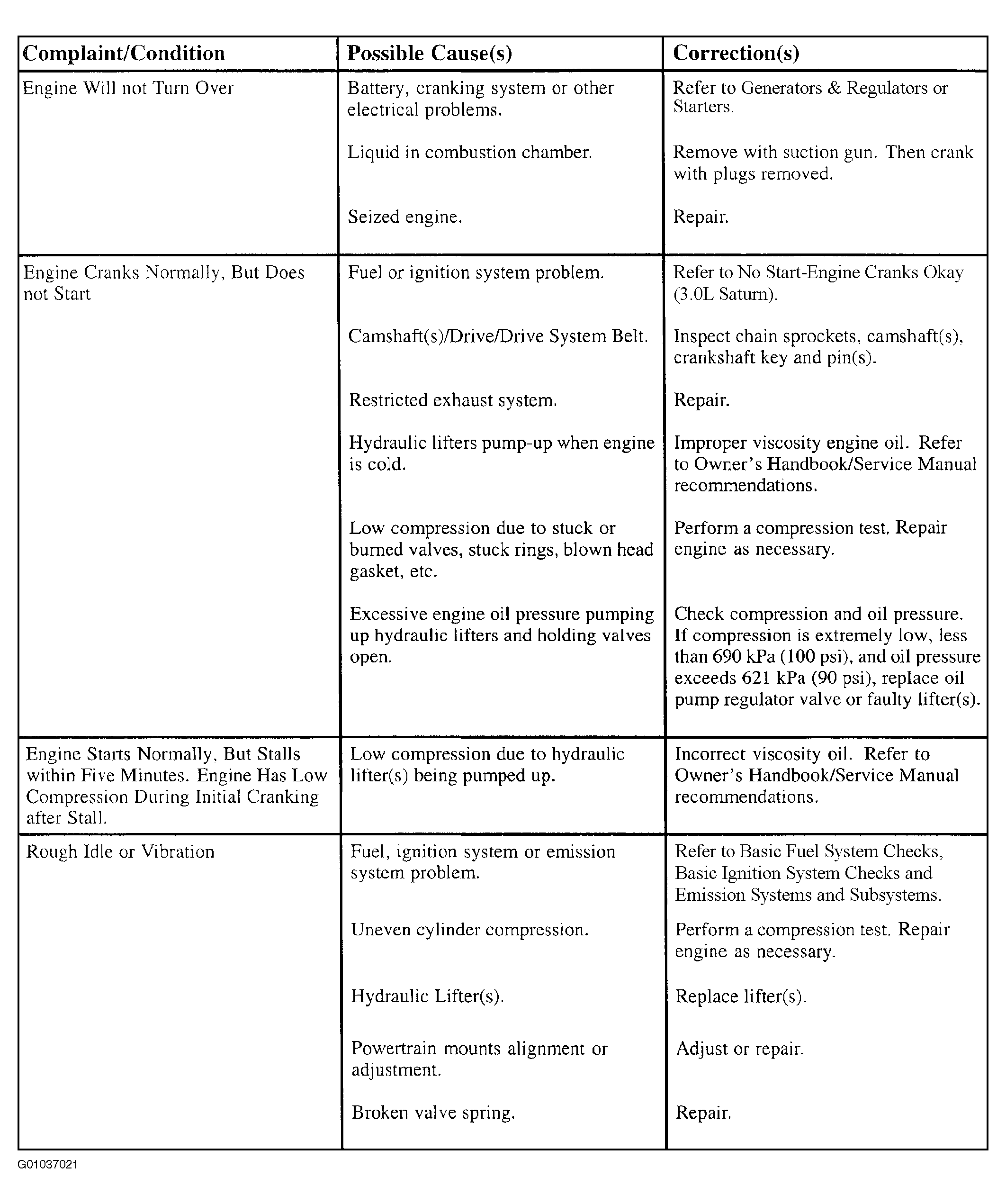

Fig 6: Engine Diagnostic Chart (6 Of 6)

Courtesy of GENERAL MOTORS CORP.
