Fuel Tank Heat Shield: Installation

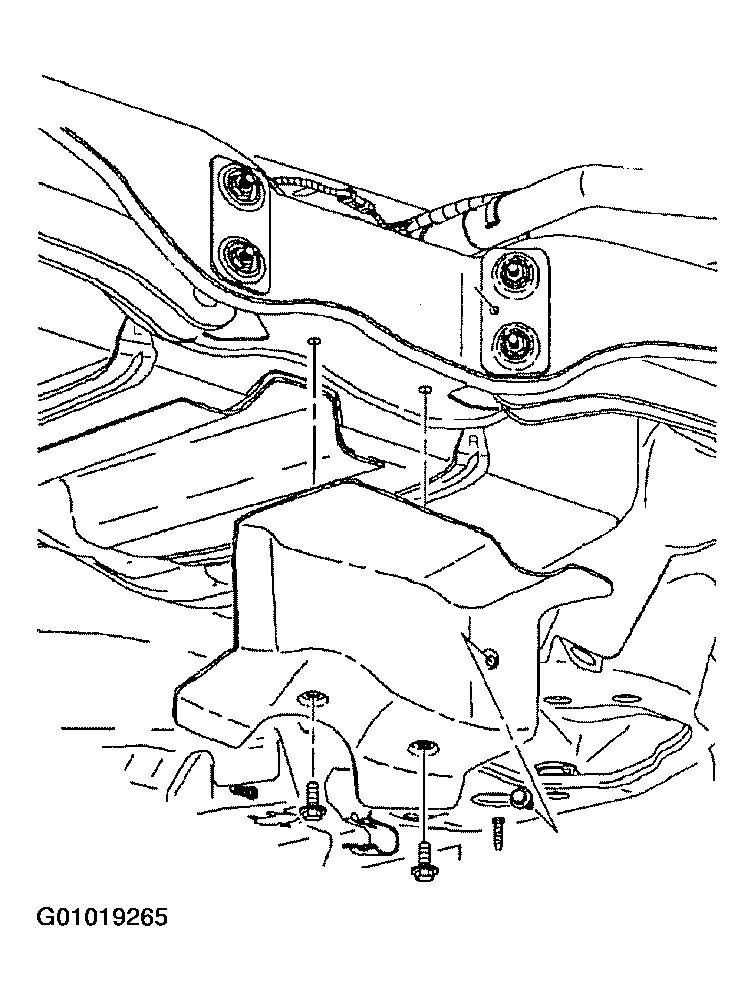

  1. Install heat shield and tighten fasteners. Tighten heat shield-to-rear cross member to 8 N.m (71 in-lbs). See Figure .
  2. Lower vehicle from hoist.
