Engine Cooling Fan Schematics

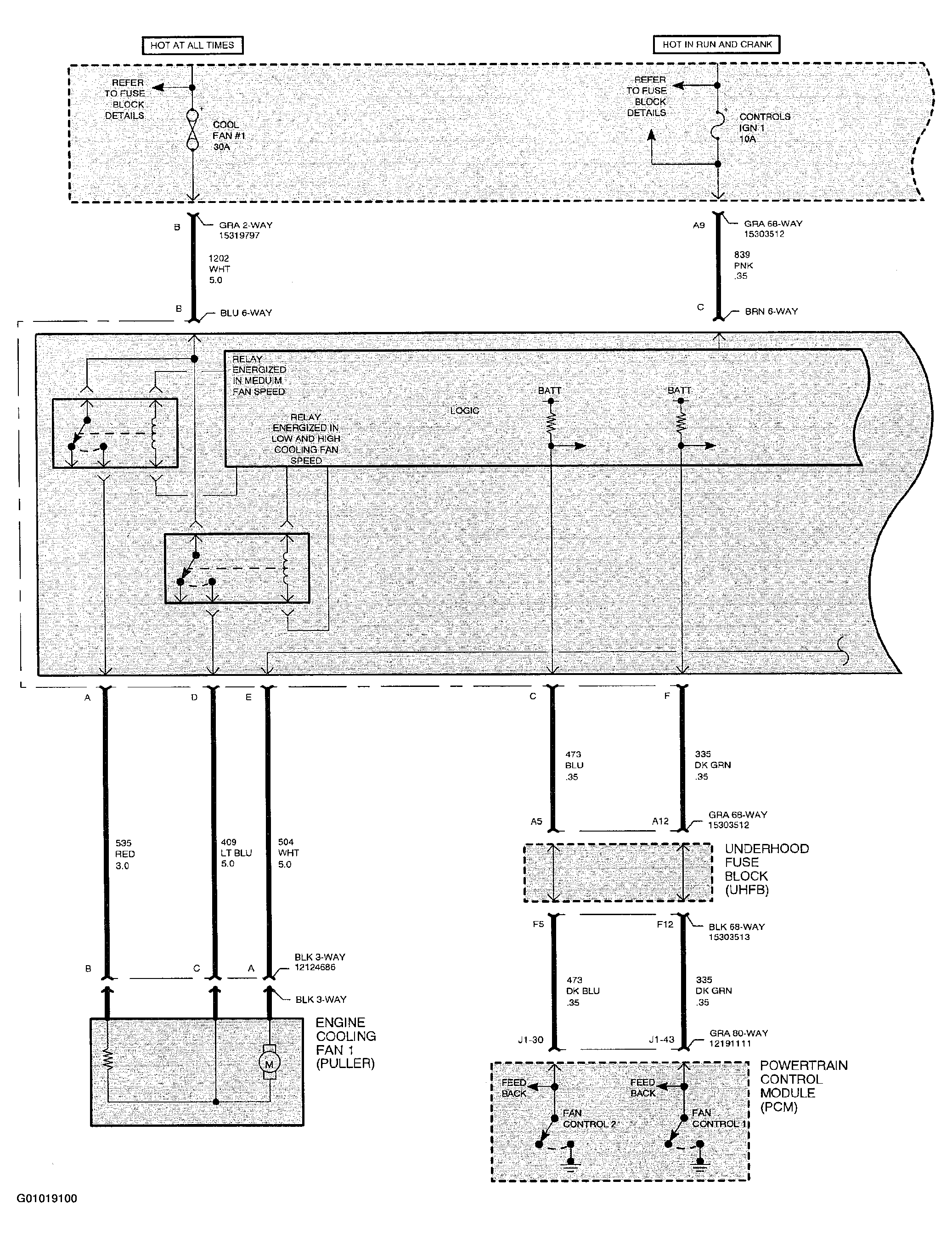

Fig 1: Engine Cooling Fan Schematic (1 Of 2)

G01019100

Courtesy of GENERAL MOTORS CORP.

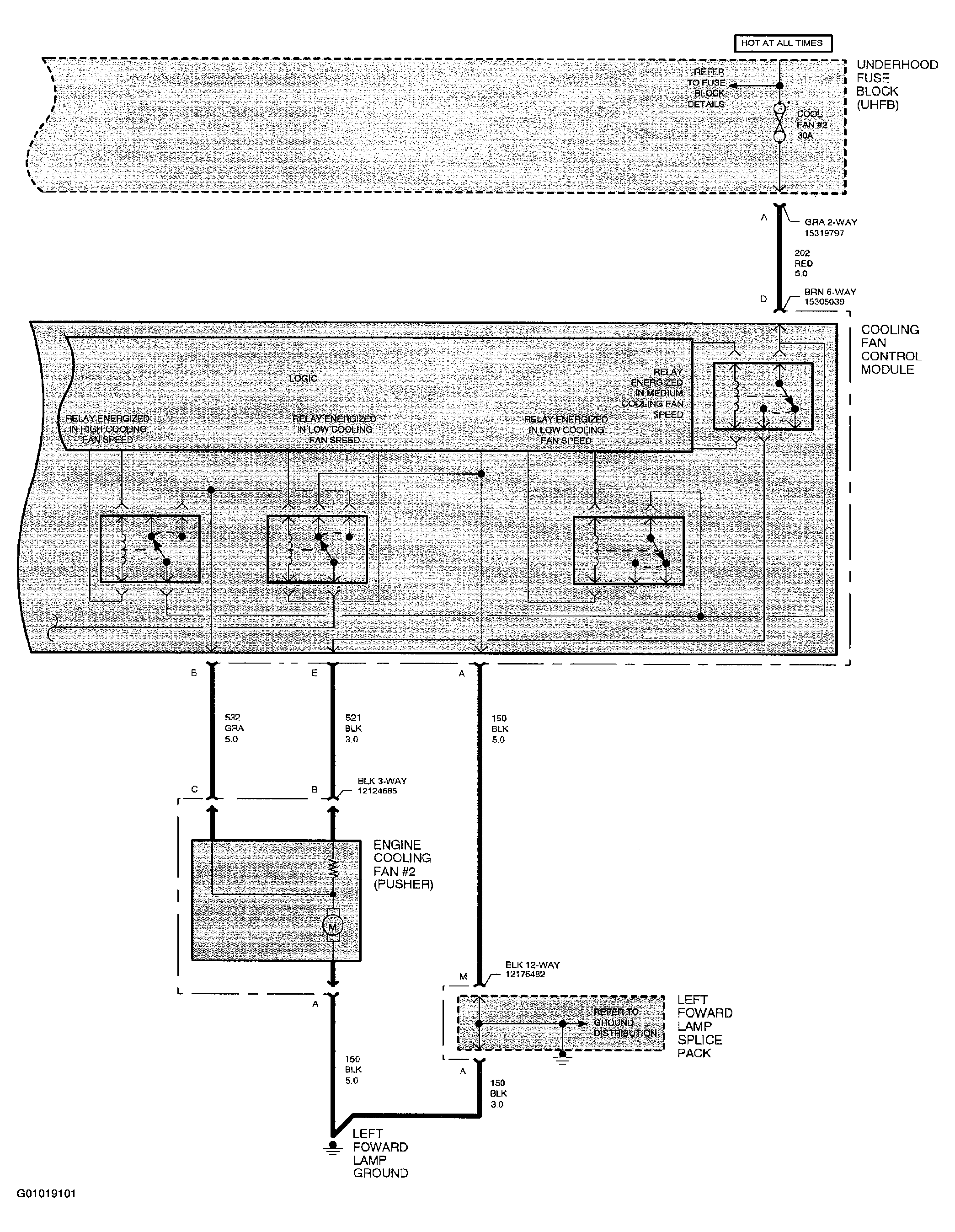

Fig 2: Engine Cooling Fan Schematic (2 Of 2)

G01019101

Courtesy of GENERAL MOTORS CORP.
