DTC B0936: Coolant Level Sensor Circuit Malfunction: Notes

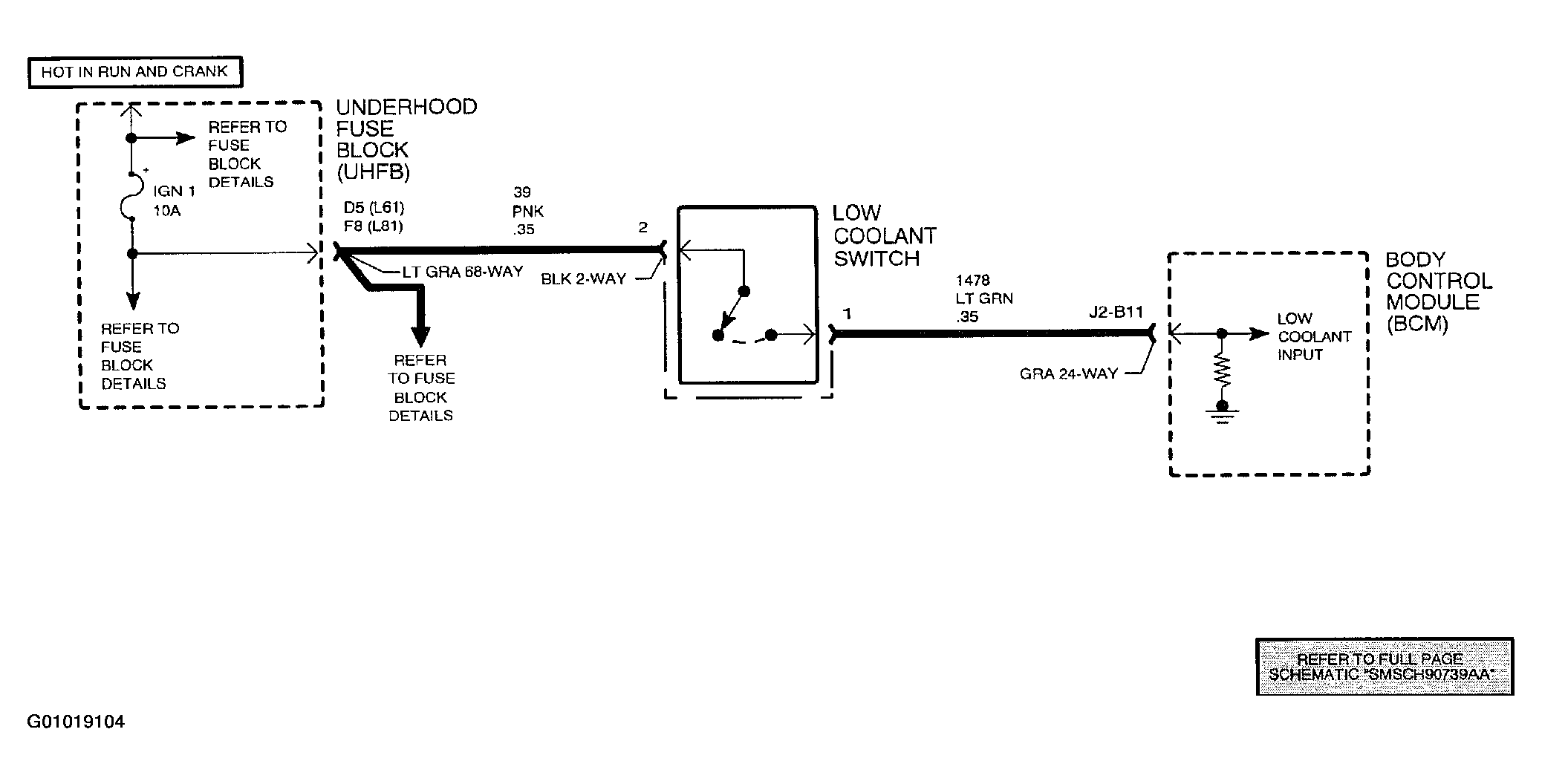

Fig 1: Coolant Level Sensor Circuit Schematic

G01019104

Courtesy of GENERAL MOTORS CORP.
