Home >> Saturn >> 2002 >> LW200 Automatic >> Repair and Diagnosis >> Electrical >> Charging Systems >> Diagnostic Tests >> DTC P1637: Generator L-Terminal Control Circuit >> Diagnostic Procedures

Diagnostic Procedures

To diagnose DTC, see Fig 1 .

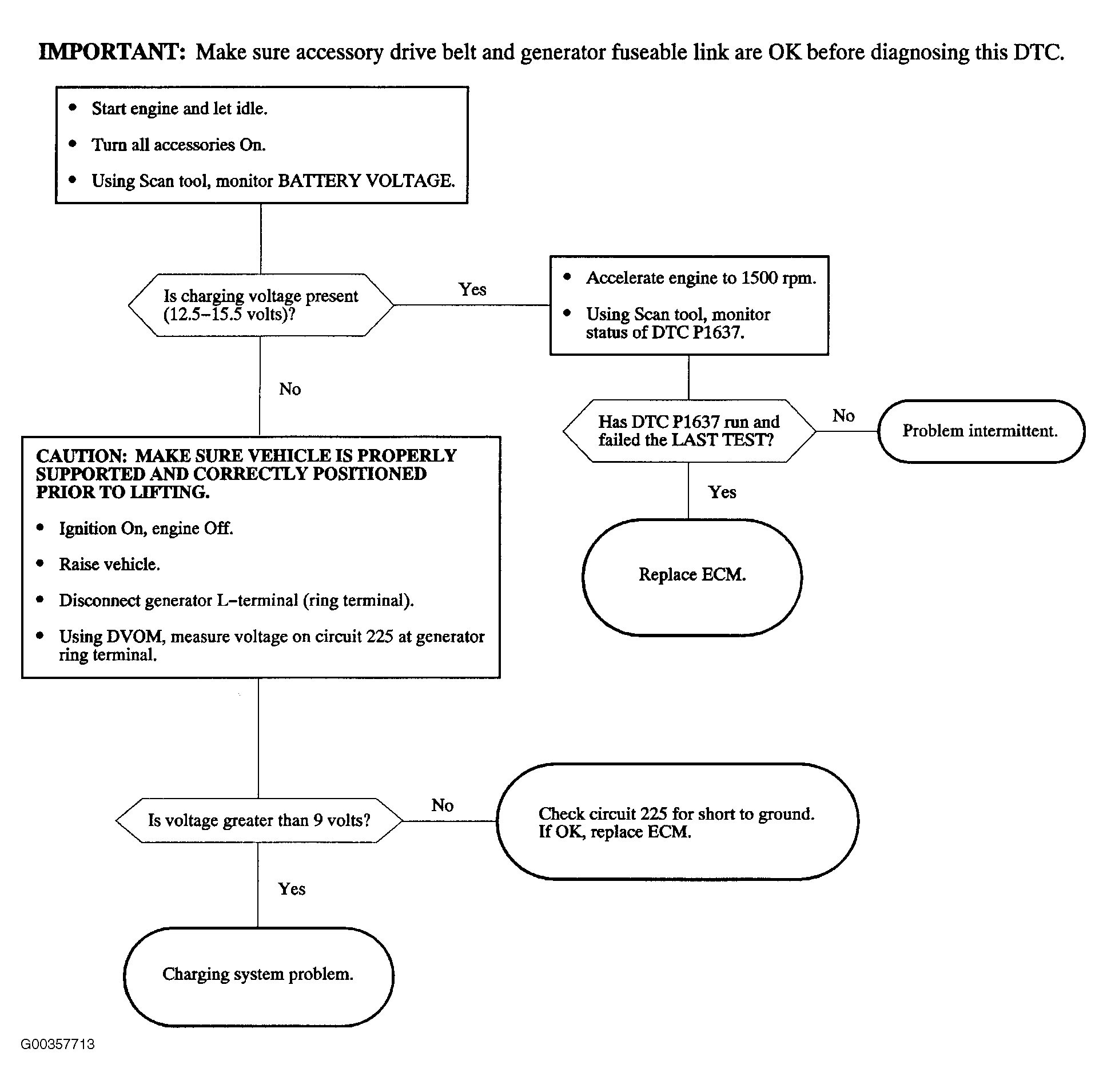

Fig 1: DTC P1637: Generator L-Terminal Circuit

G00357713

Courtesy of GENERAL MOTORS CORP.
