Home >> Saturn >> 2002 >> LW200 Automatic >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System >> Diagnostics >> DTC C0161: Abs/TCS Brake Switch Circuit Malfunction >> C0161

DTC C0161: Abs/TCS Brake Switch Circuit Malfunction: C0161

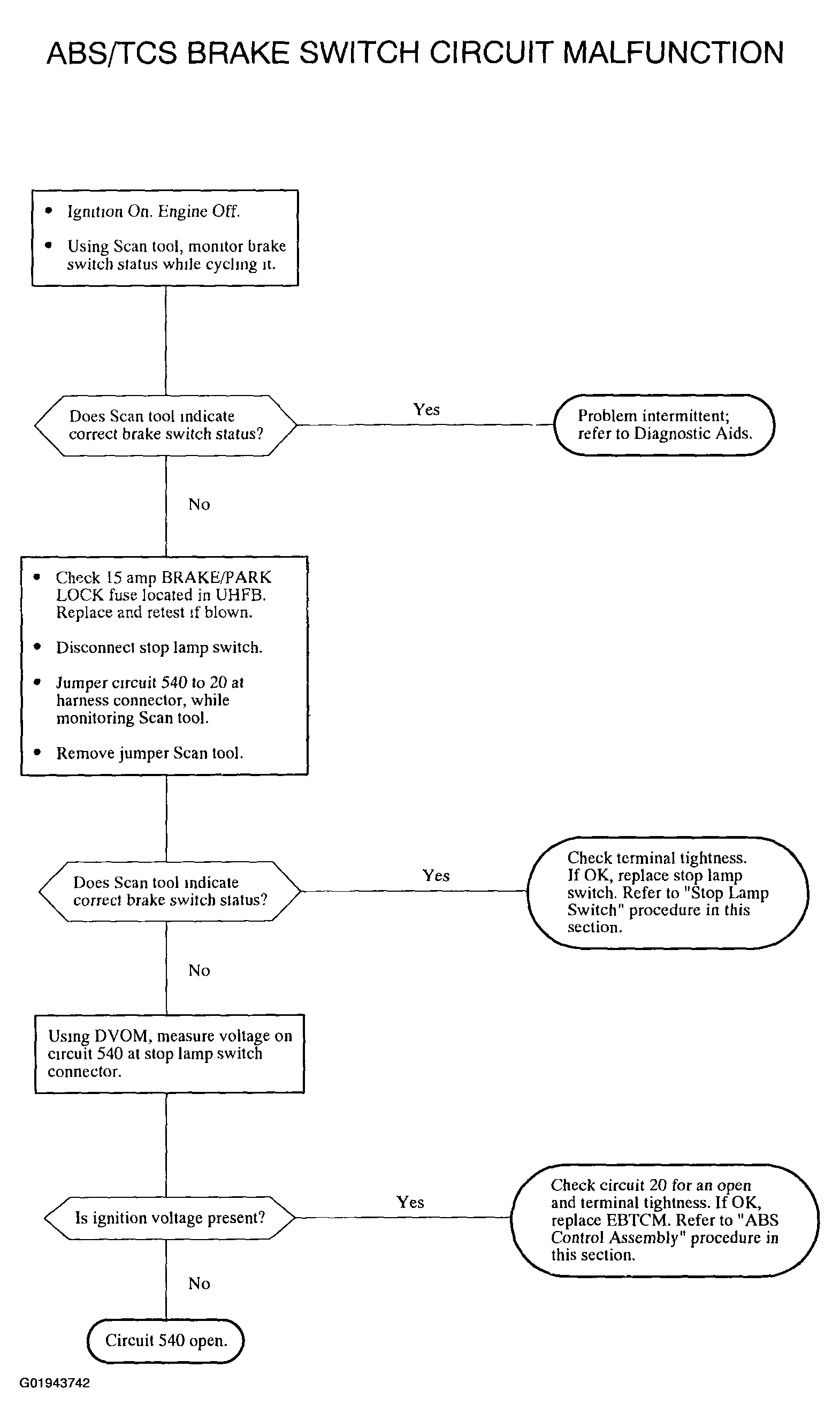

Fig 1: ABS/TCS Brake Switch Circuit Malfunction Chart

G01943742

Courtesy of GENERAL MOTORS CORP.
