Removal Procedure

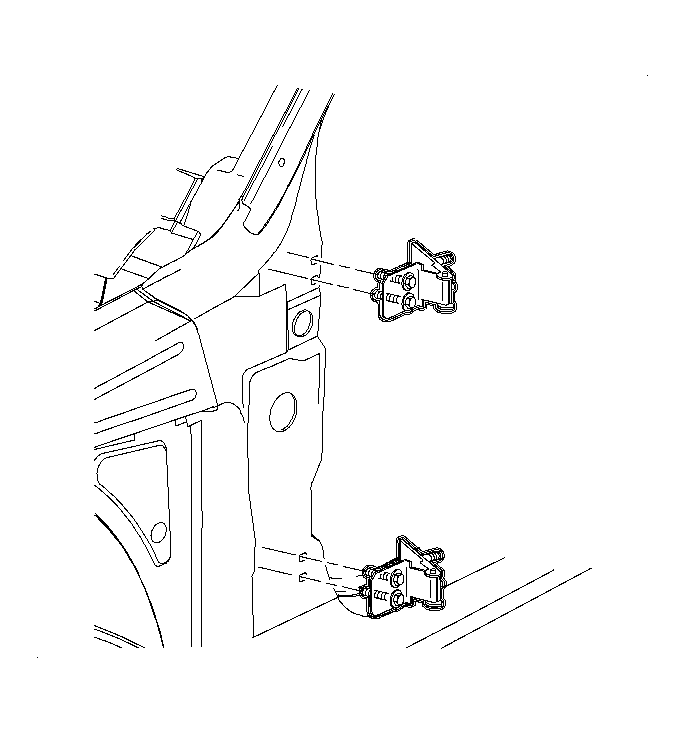

    Fig 1: Removing & Installing Front Door Hinges
    GM893754Courtesy of GENERAL MOTORS CORP.
  1. Remove the front door. Refer to Door Replacement - Front .
  2. Mark around the hinge location with a grease pencil for installation alignment purposes.
  3. Remove the hinge to hinge pillar bolts.
  4. Remove the hinge from the vehicle.
