Removal Procedure

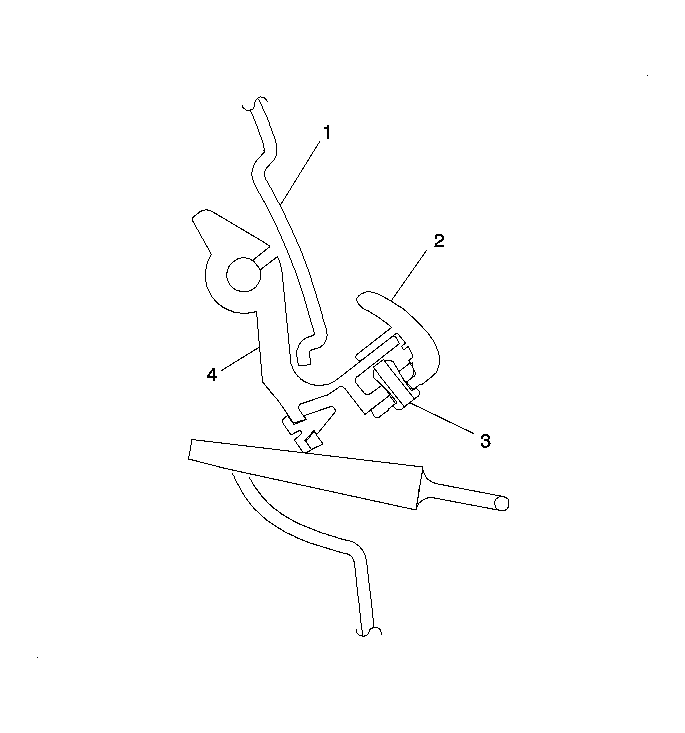

    Fig 1: Removing & Installing Outside Door Handle Push Pin
    GM864366Courtesy of GENERAL MOTORS CORP.
  1. Lift the handle and remove the push pin.
    2. Fig 2: Installing Outside Door Handle To Pivot Assembly
    GM894101Courtesy of GENERAL MOTORS CORP.
  2. Slide the door handle to remove from the pivot assembly.
