Ignition Switch: Installation

  1. Connect electrical connectors.
    2. Fig 1: Connecting Electrical Connectors
    G01833067Courtesy of GENERAL MOTORS CORP.
  2. Position ignition switch.
  3. Install ignition switch fasteners. Tighten ignition switch fasteners to 1.5 N.m (13 in-lbs).
  4. Install steering column upper shroud panel.
  5. Install lock cylinder bezel.

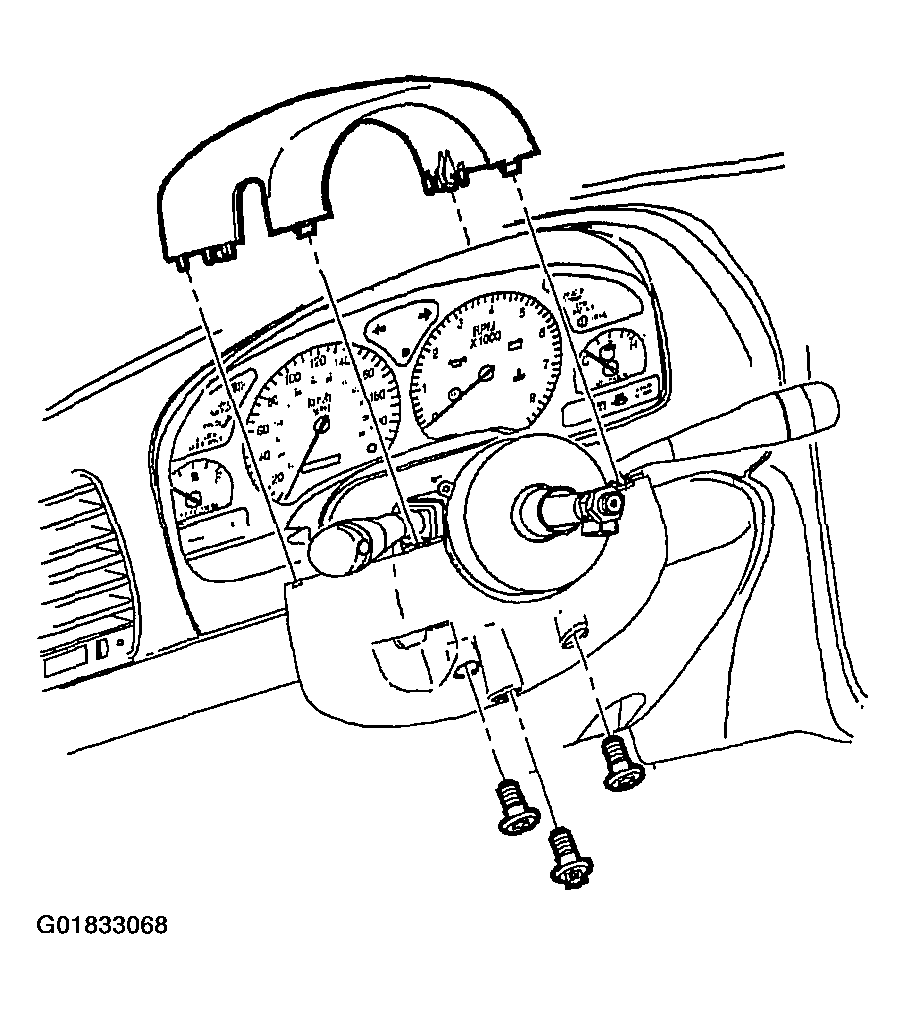

    6. Fig 2: Installing Lock Cylinder Bezel
    G01833068Courtesy of GENERAL MOTORS CORP.
