Scan Tool Display

The following tables lists the data directly related to the RKE/security system only.

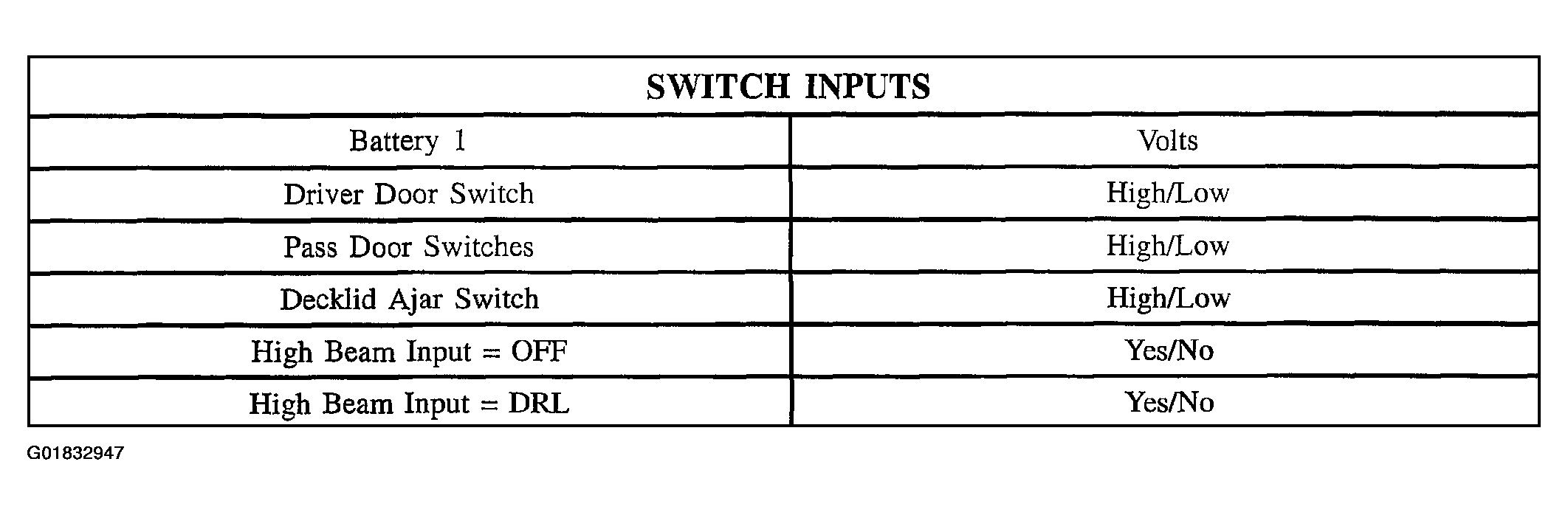

Fig 1: Switch Inputs

Courtesy of GENERAL MOTORS CORP.

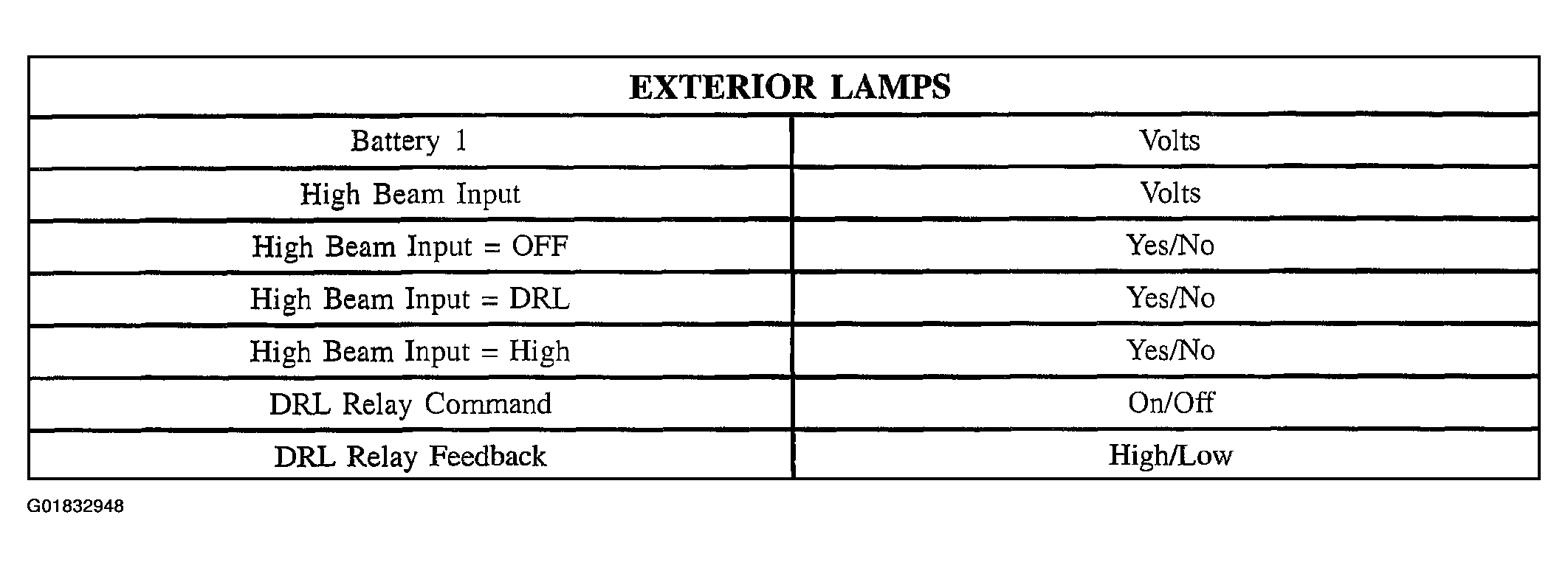

Fig 2: Exterior Lamps

Courtesy of GENERAL MOTORS CORP.

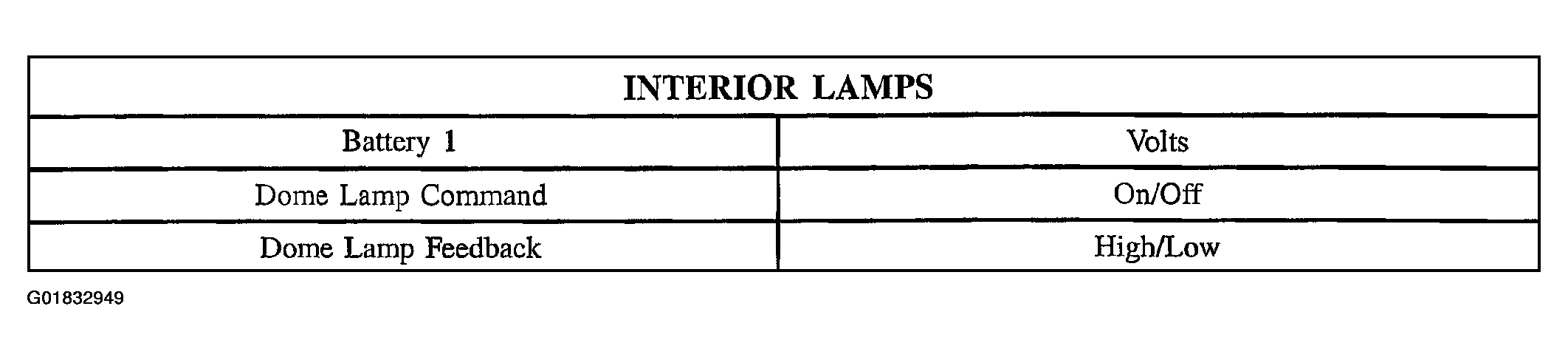

Fig 3: Interior Lamps

Courtesy of GENERAL MOTORS CORP.

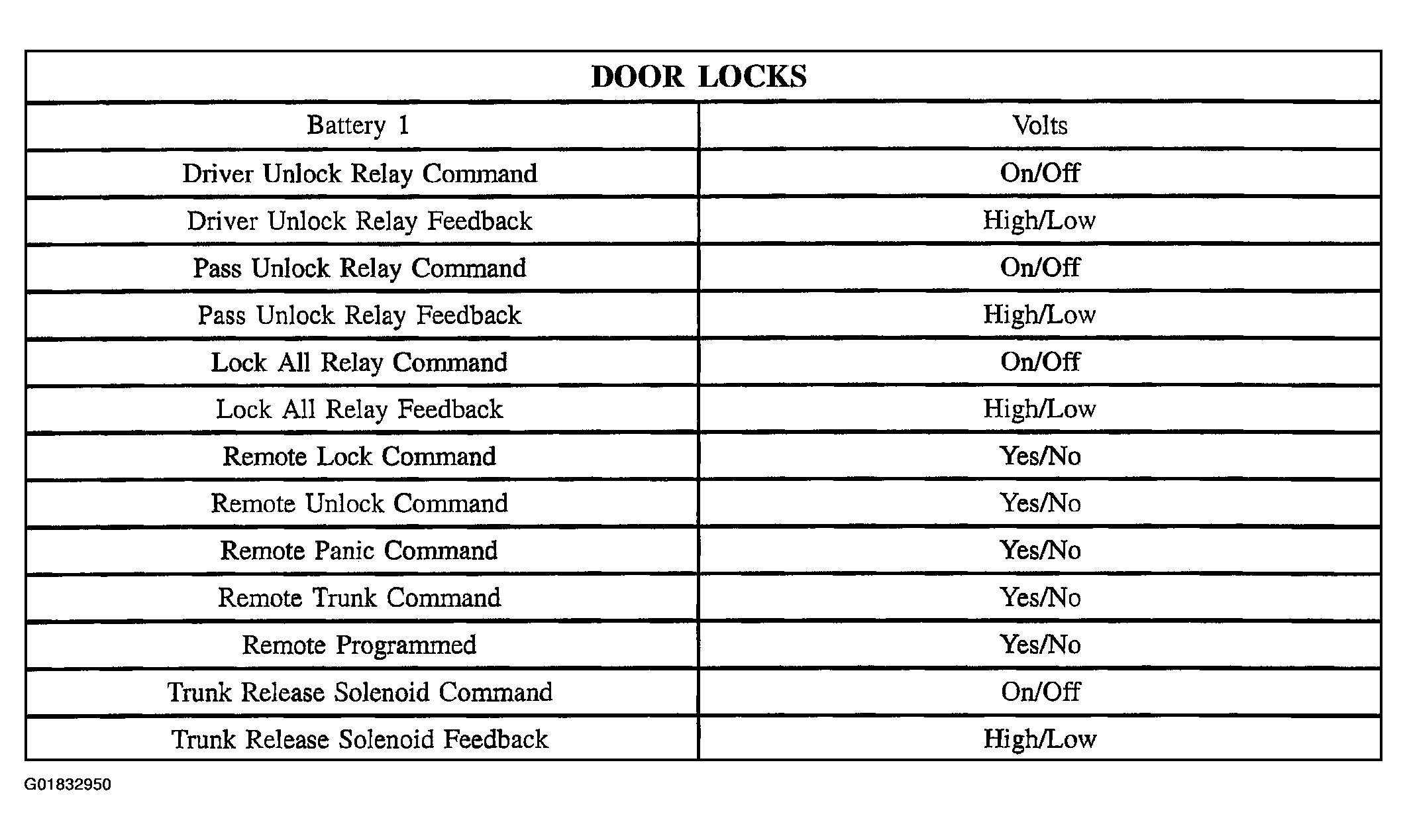

Fig 4: Door Locks

Courtesy of GENERAL MOTORS CORP.

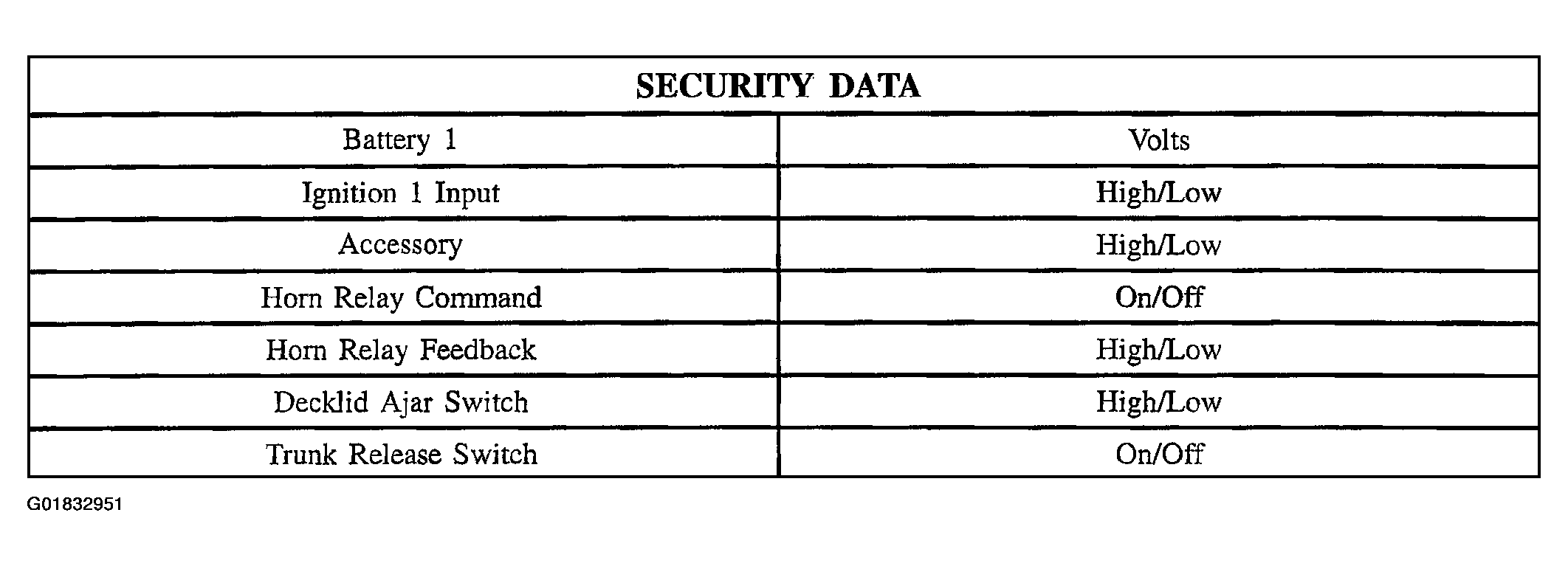

Fig 5: Security Data

Courtesy of GENERAL MOTORS CORP.
