DTC B2958: Security System Sensor Data Circuit High: B2958

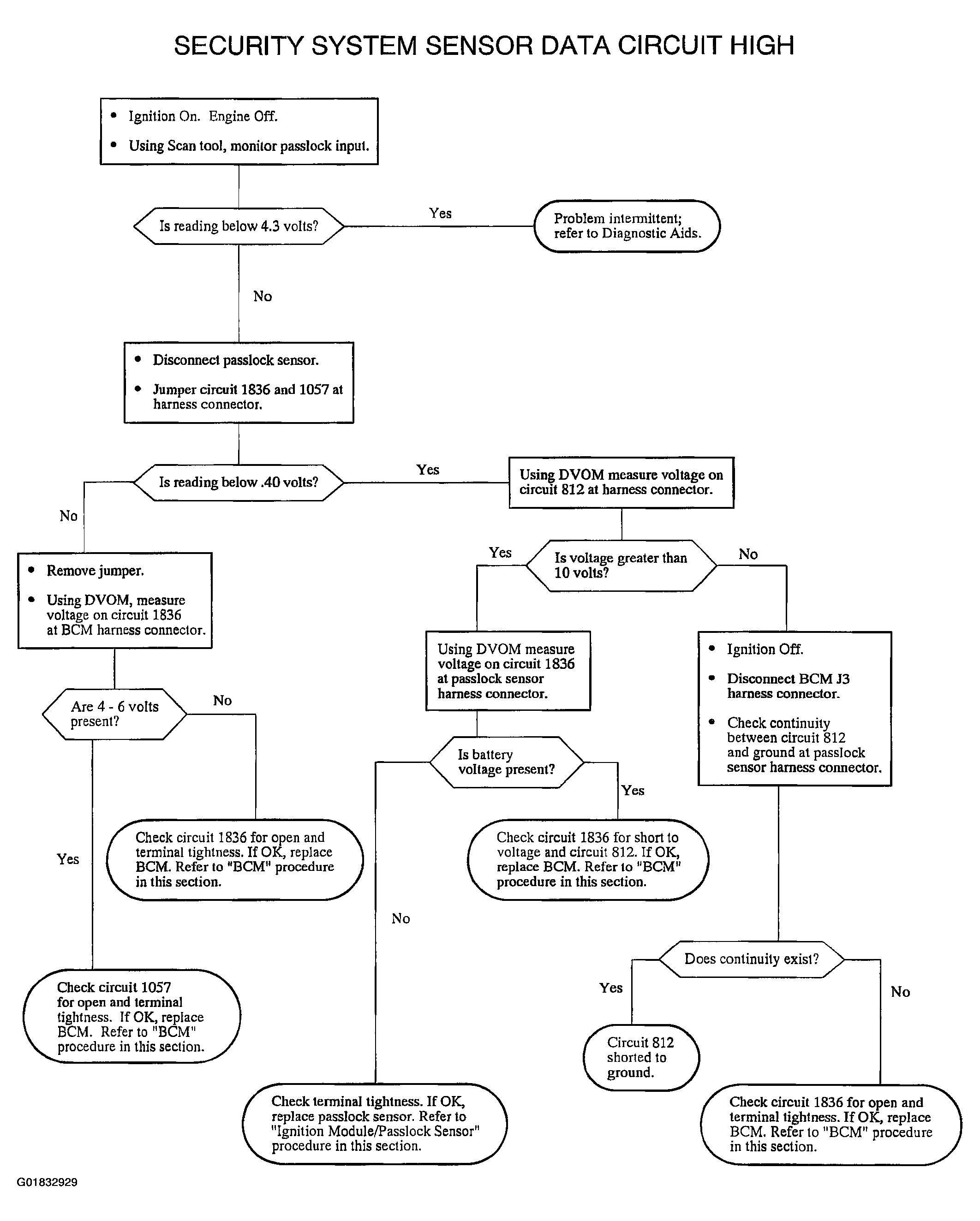

Fig 1: Security System Sensor Data Circuit High Chart

G01832929

Courtesy of GENERAL MOTORS CORP.
