Home >> Saturn >> 2002 >> LW200 Automatic >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Locks & Security >> Diagnostics >> DTC B2957: Security System Sensor Data Circuit Low >> B2957

DTC B2957: Security System Sensor Data Circuit Low: B2957

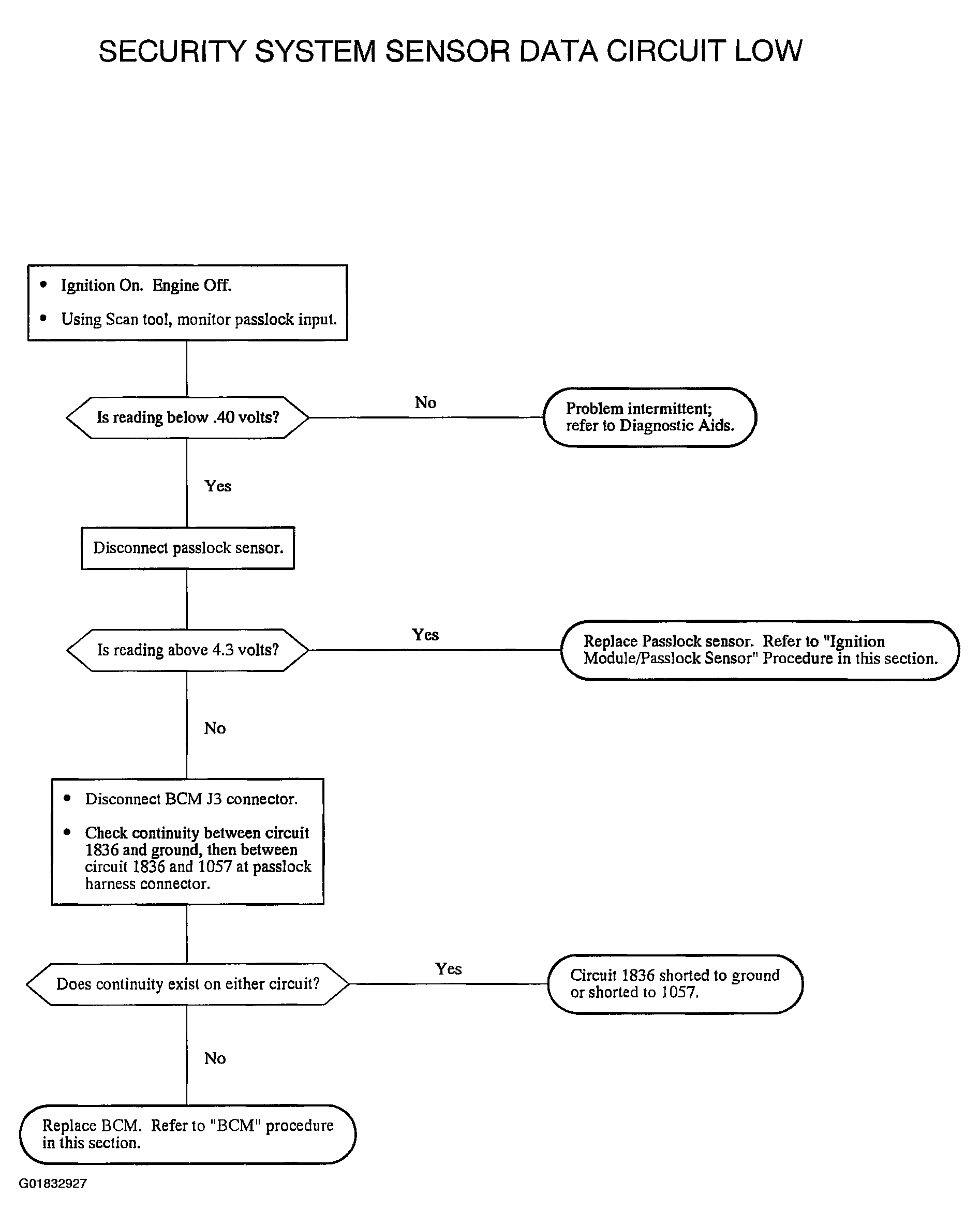

Fig 1: Security System Sensor Data Circuit Low Chart

G01832927

Courtesy of GENERAL MOTORS CORP.
