Home >> Saturn >> 2002 >> LW200 Automatic >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Locks & Security >> Diagnostics >> DTC B2948: Security System Sensor Power Circuit High >> B2948

DTC B2948: Security System Sensor Power Circuit High: B2948

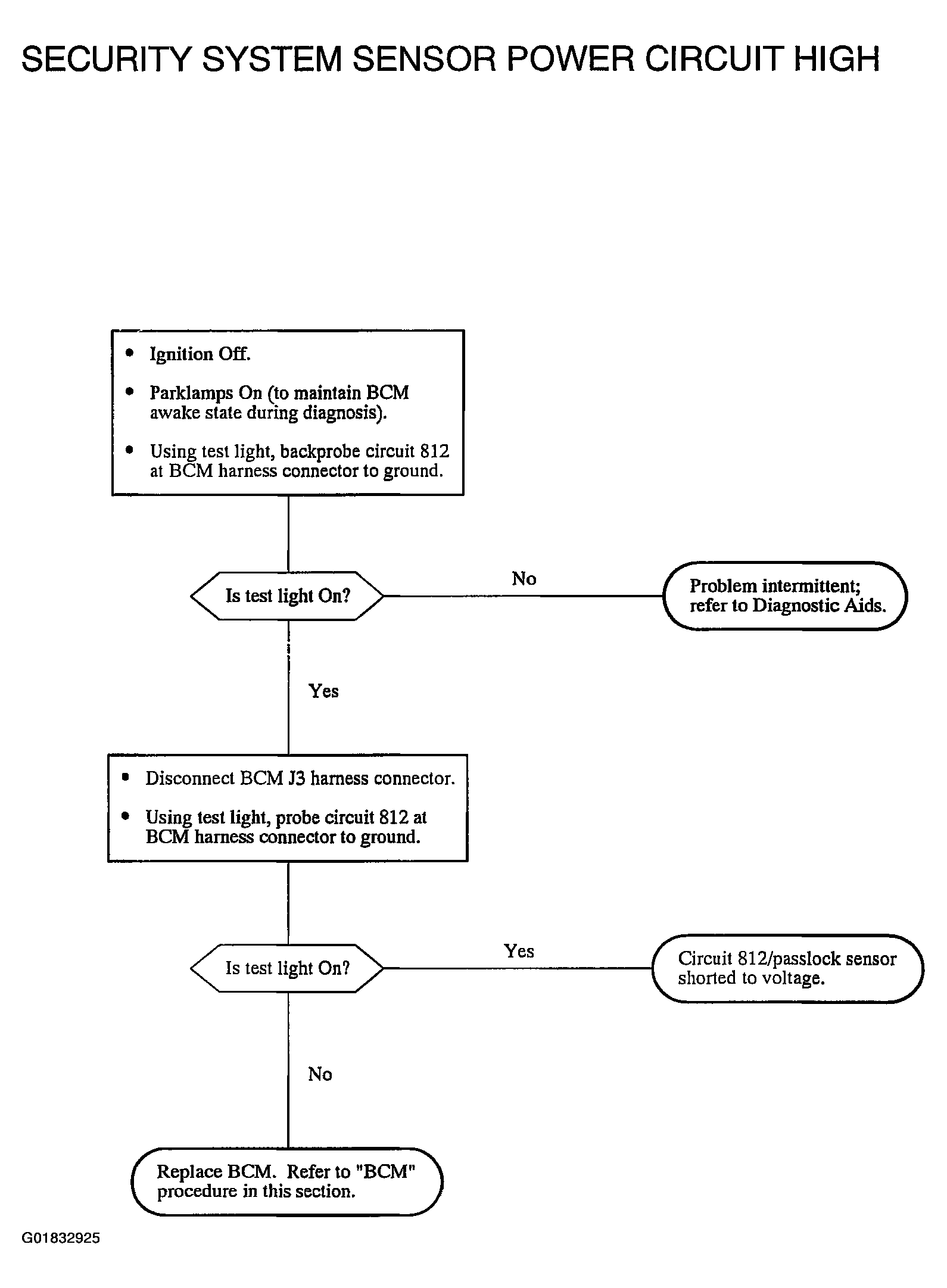

Fig 1: Security System Sensor Power Circuit High Chart

G01832925

Courtesy of GENERAL MOTORS CORP.
