Chart 1 - DECKLID/Liftgate Inoperative Lock & Unlock Operate Normally

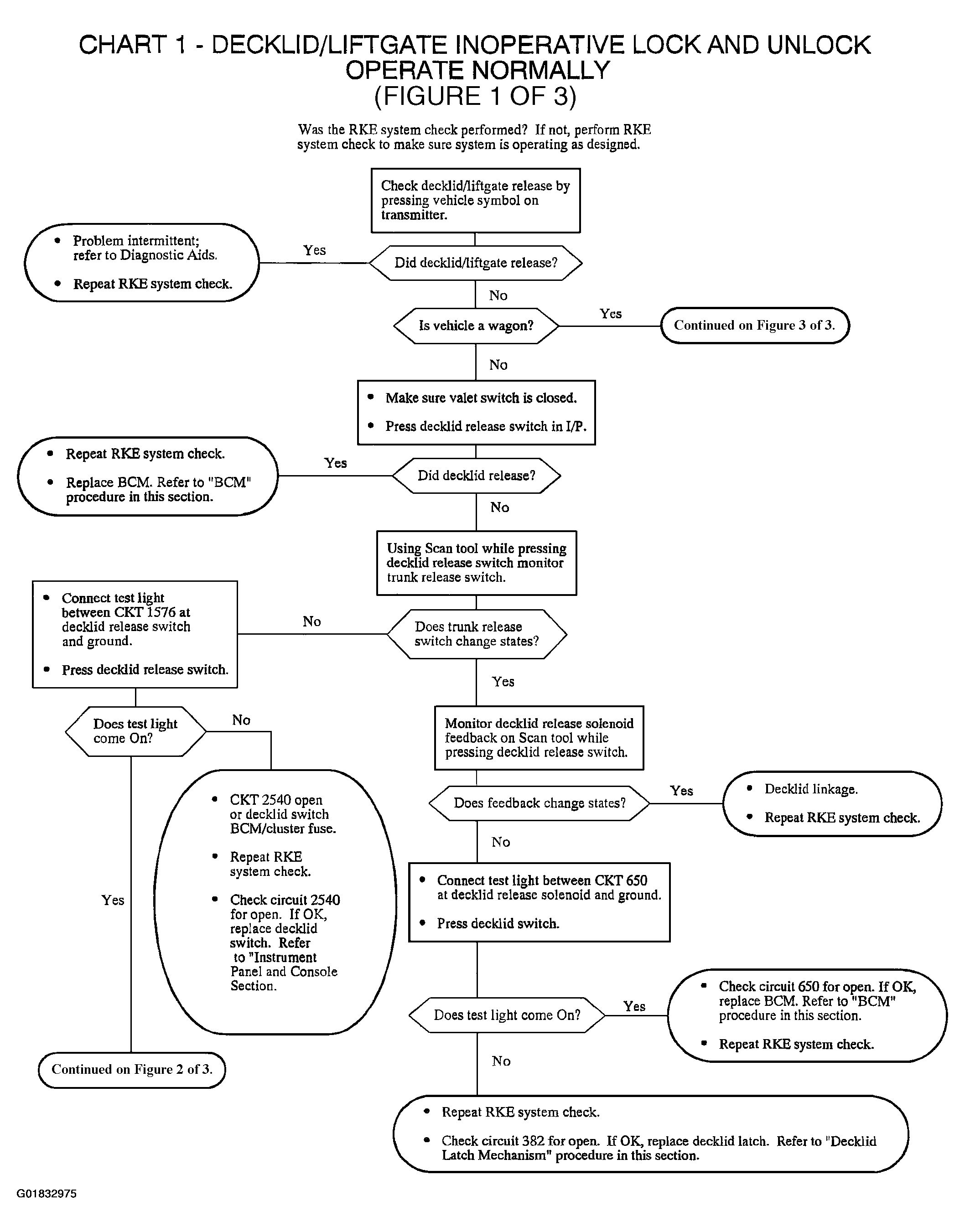

Fig 1: Chart 1 - Decklid/Liftgate Inoperative Lock & Unlock Operate Normally (1 Of 3)
G01832975Courtesy of GENERAL MOTORS CORP.

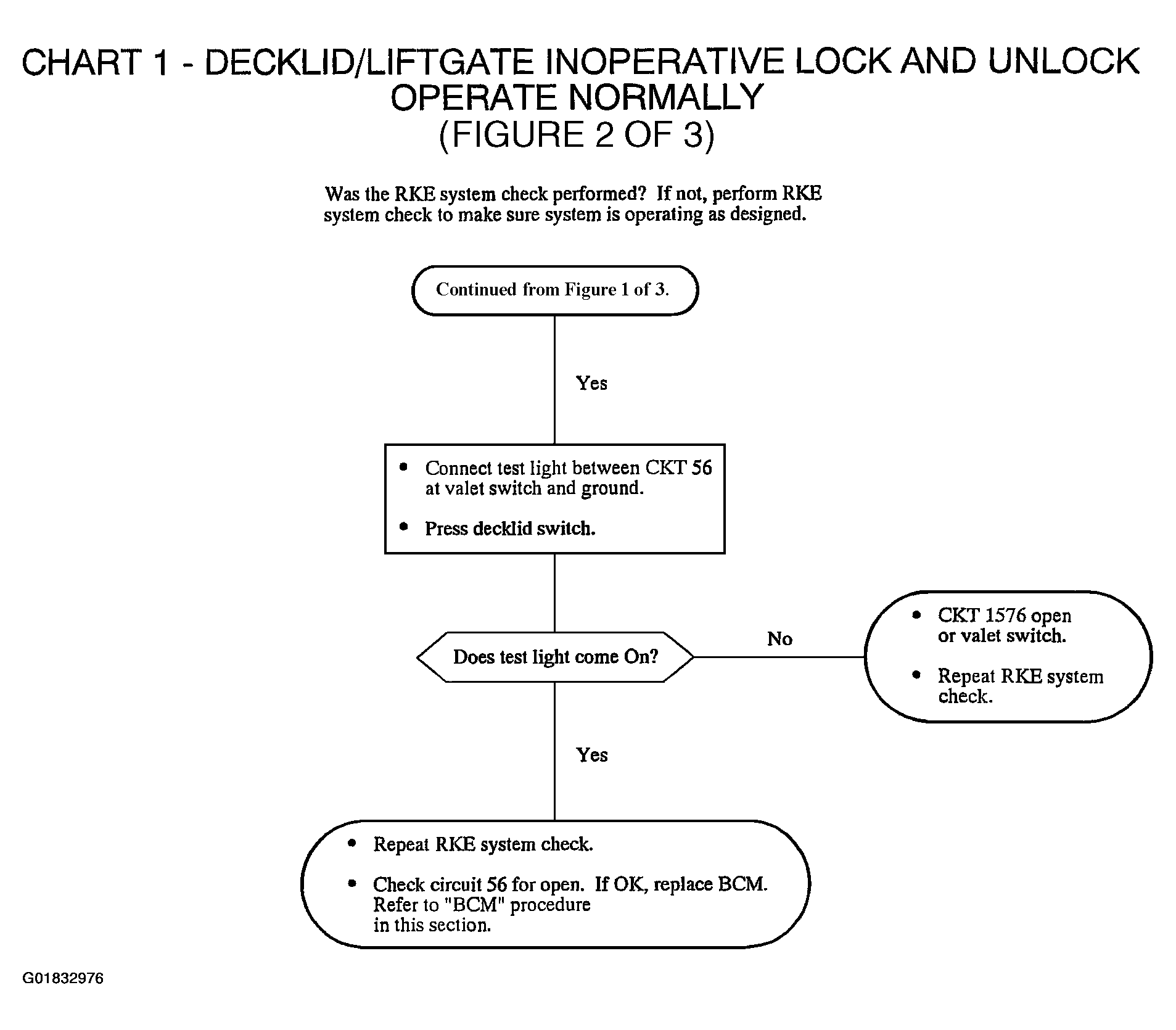

Fig 2: Chart 1 - Decklid/Liftgate Inoperative Lock & Unlock Operate Normally (2 Of 3)
G01832976Courtesy of GENERAL MOTORS CORP.

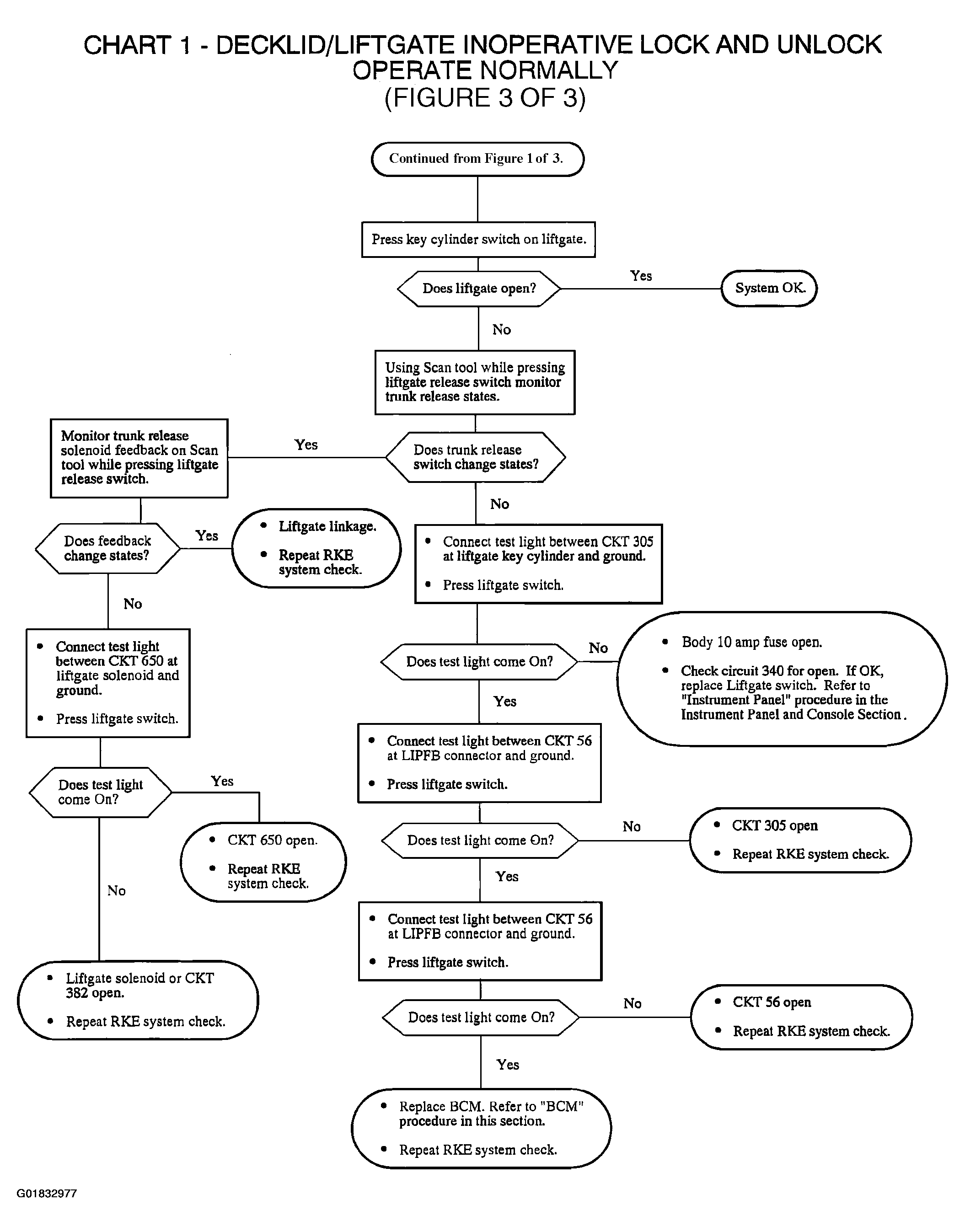

Fig 3: Chart 1 - Decklid/Liftgate Inoperative Lock & Unlock Operate Normally (3 Of 3)
G01832977Courtesy of GENERAL MOTORS CORP.
