Home >> Saturn >> 2002 >> LW200 Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Infotainment >> Entertainment System >> Diagnostics >> System Checks >> AM/FM Stereo With In-Dash CD Player

AM/FM Stereo With In-Dash CD Player

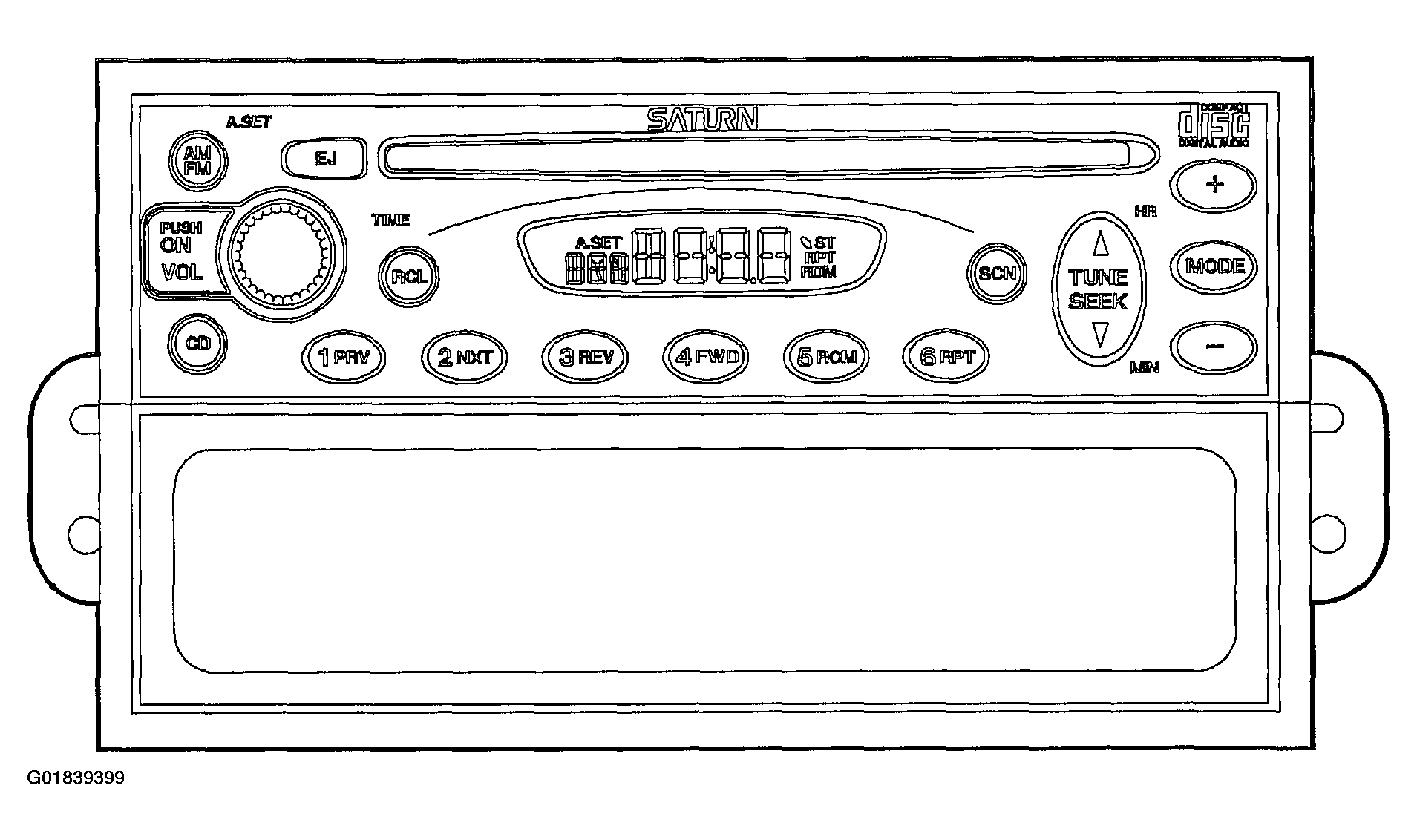

Fig 1: AM/FM Stereo With In-Dash CD Player Face
G01839399Courtesy of GENERAL MOTORS CORP.

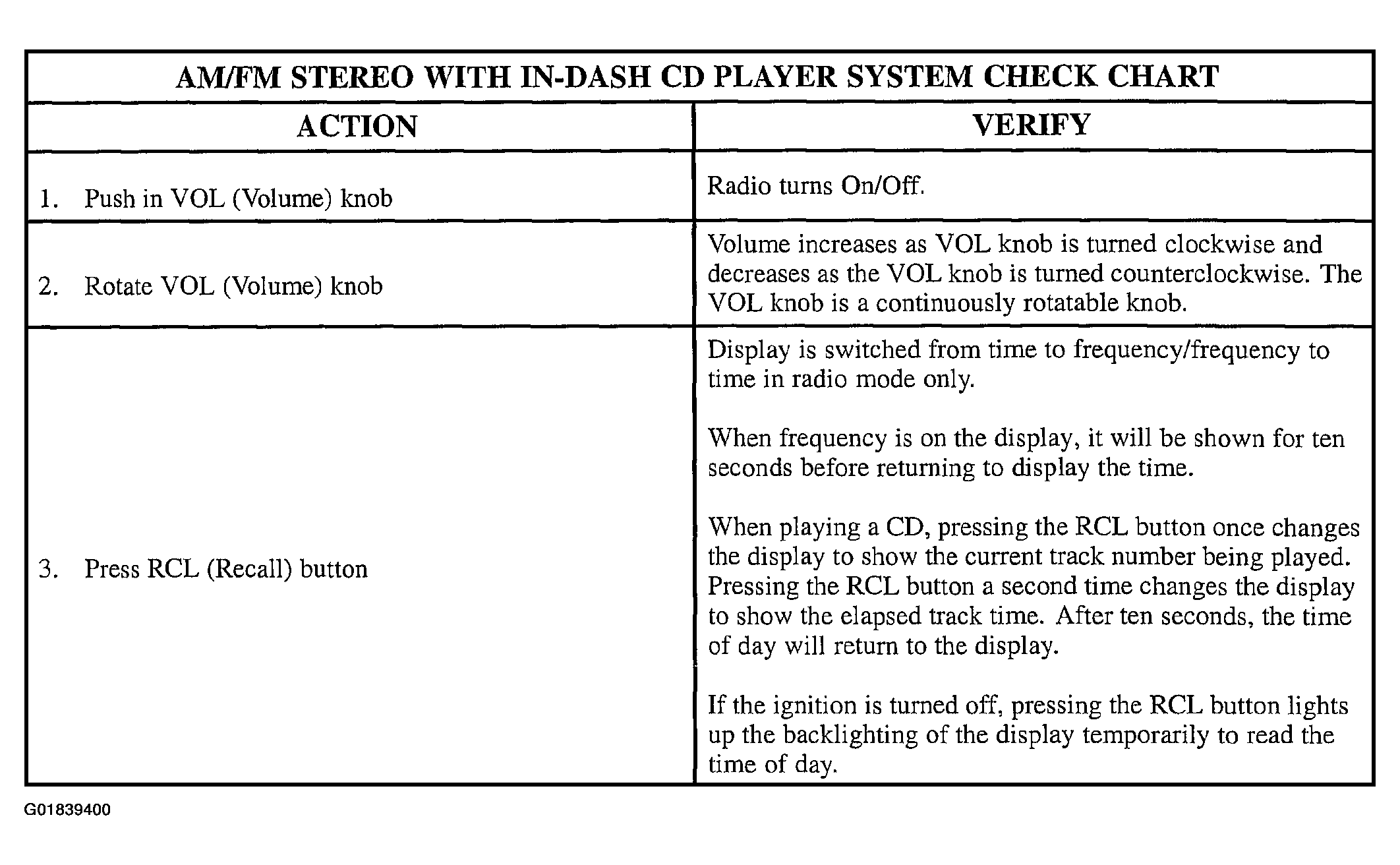

Fig 2: AM/FM Stereo With In-Dash CD Player System Check Chart (1 Of 5)
G01839400Courtesy of GENERAL MOTORS CORP.

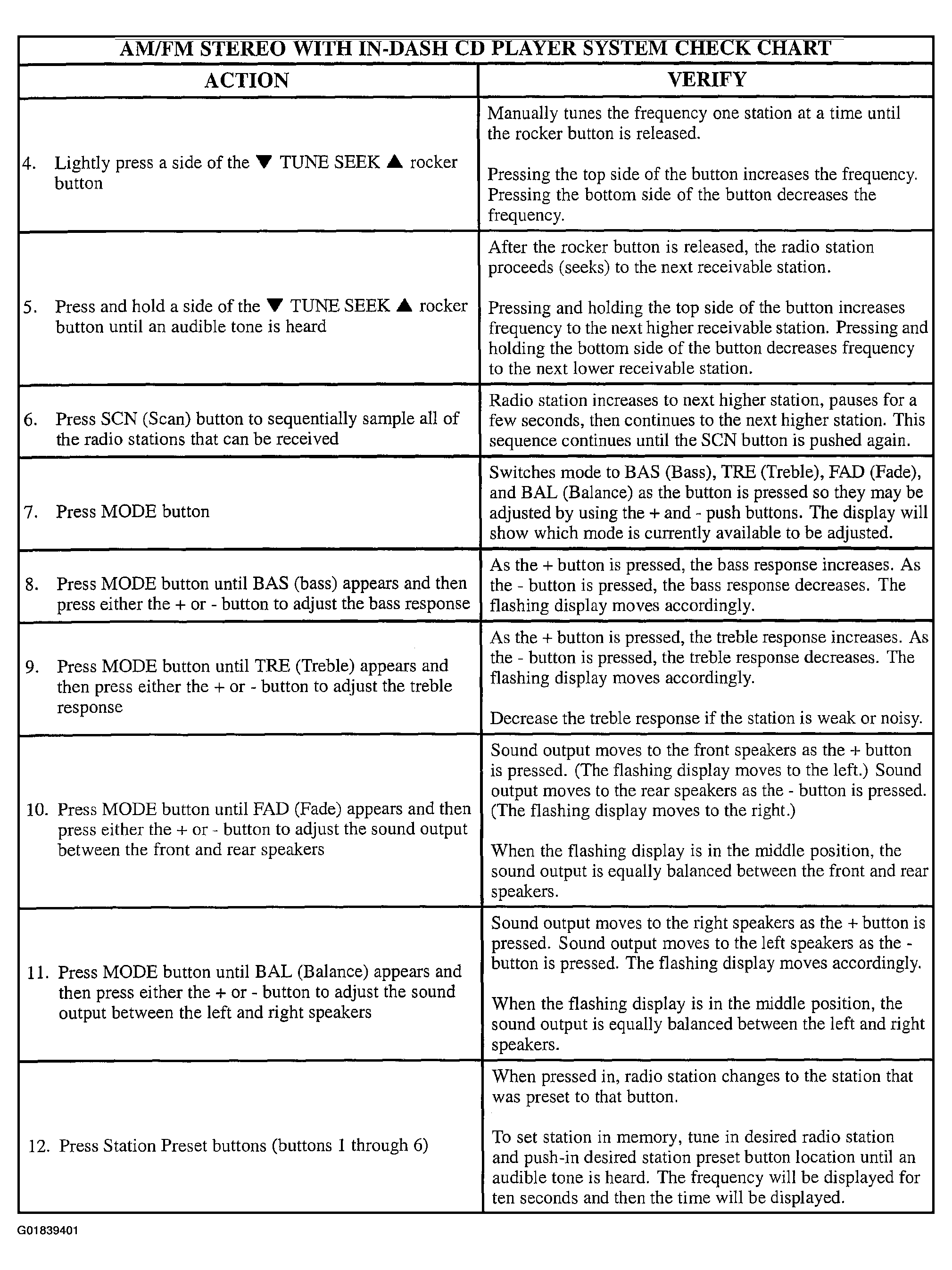

Fig 3: AM/FM Stereo With In-Dash CD Player System Check Chart (2 Of 5)
G01839401Courtesy of GENERAL MOTORS CORP.

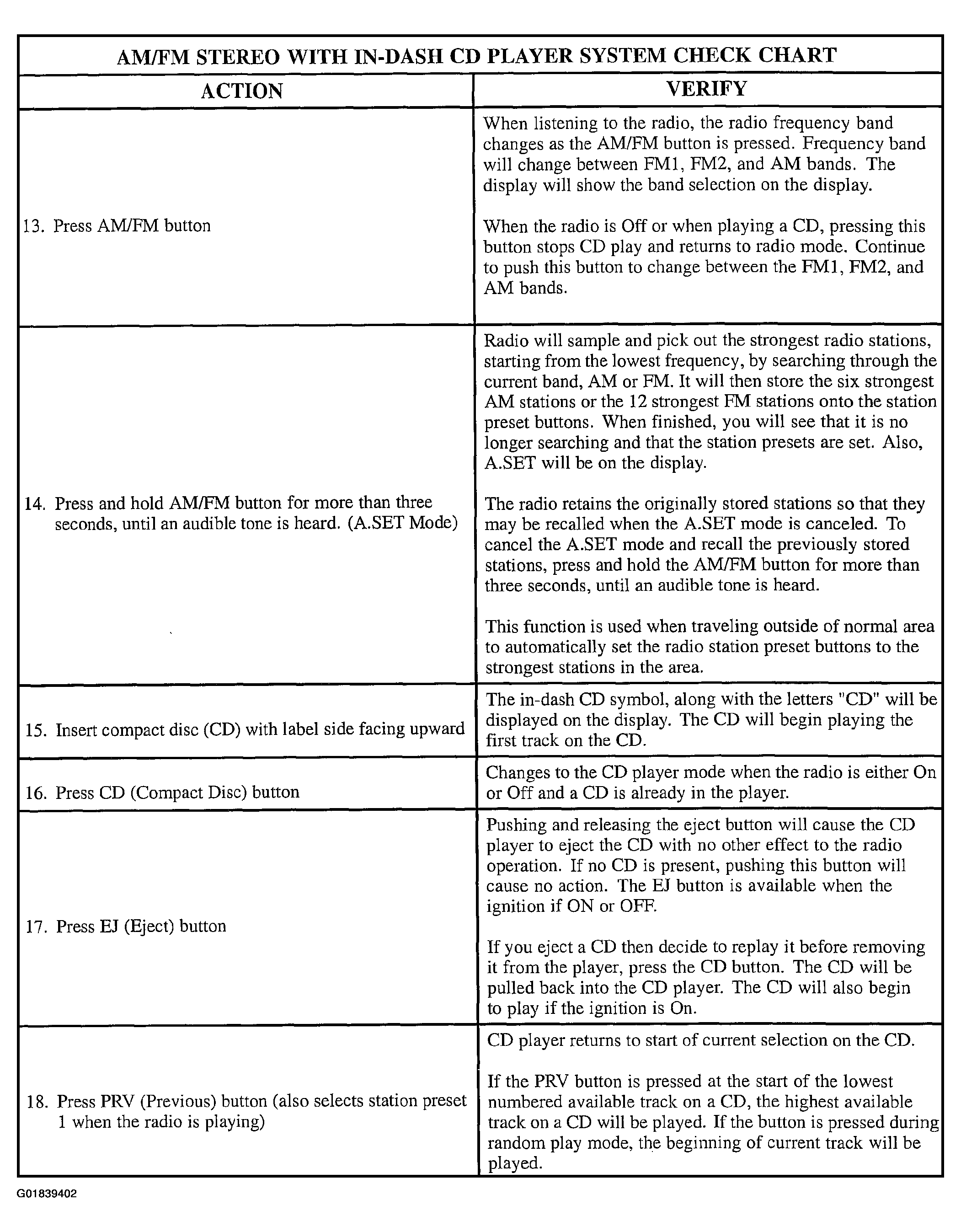

Fig 4: AM/FM Stereo With In-Dash CD Player System Check Chart (3 Of 5)
G01839402Courtesy of GENERAL MOTORS CORP.

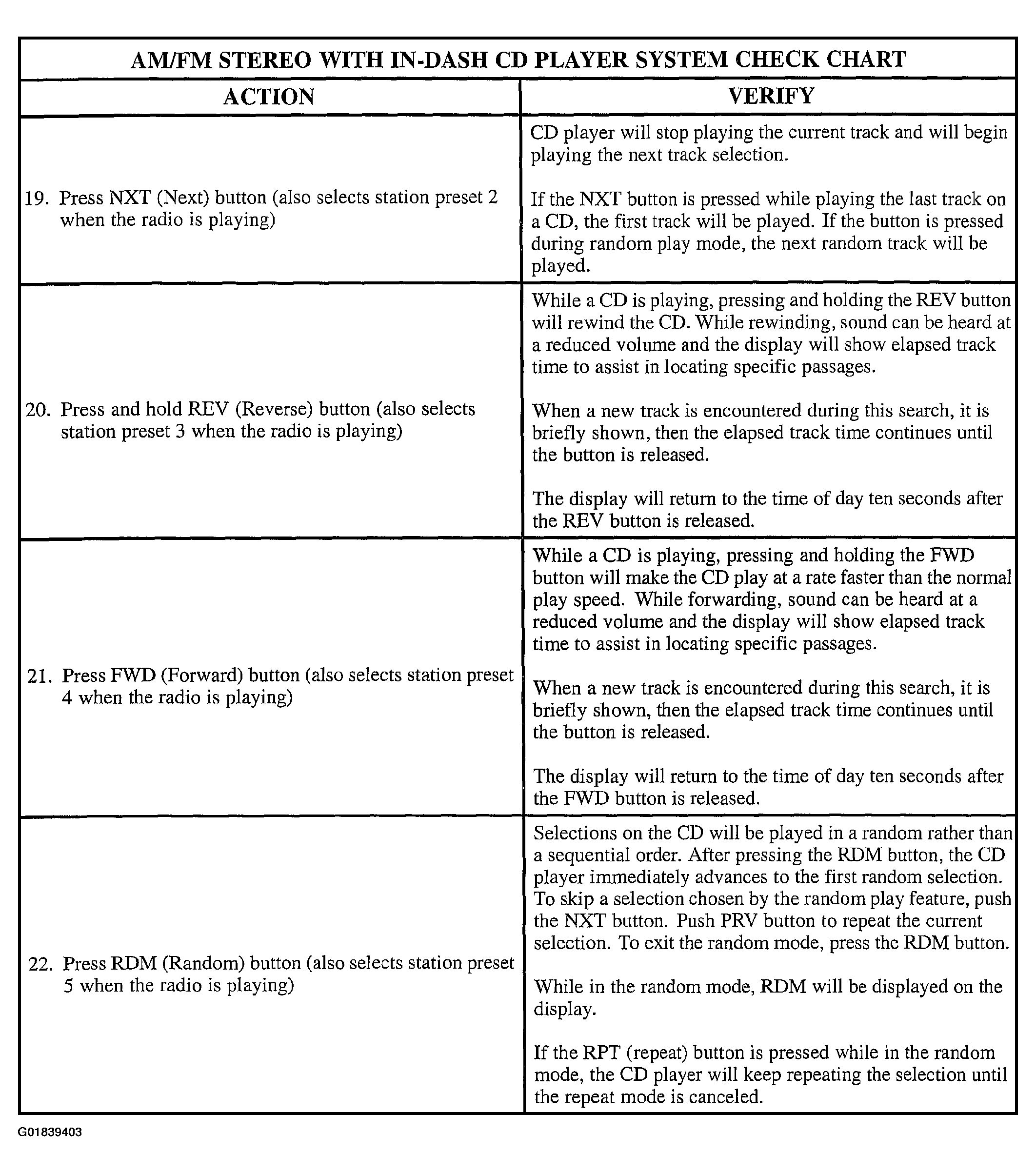

Fig 5: AM/FM Stereo With In-Dash CD Player System Check Chart (4 Of 5)
G01839403Courtesy of GENERAL MOTORS CORP.

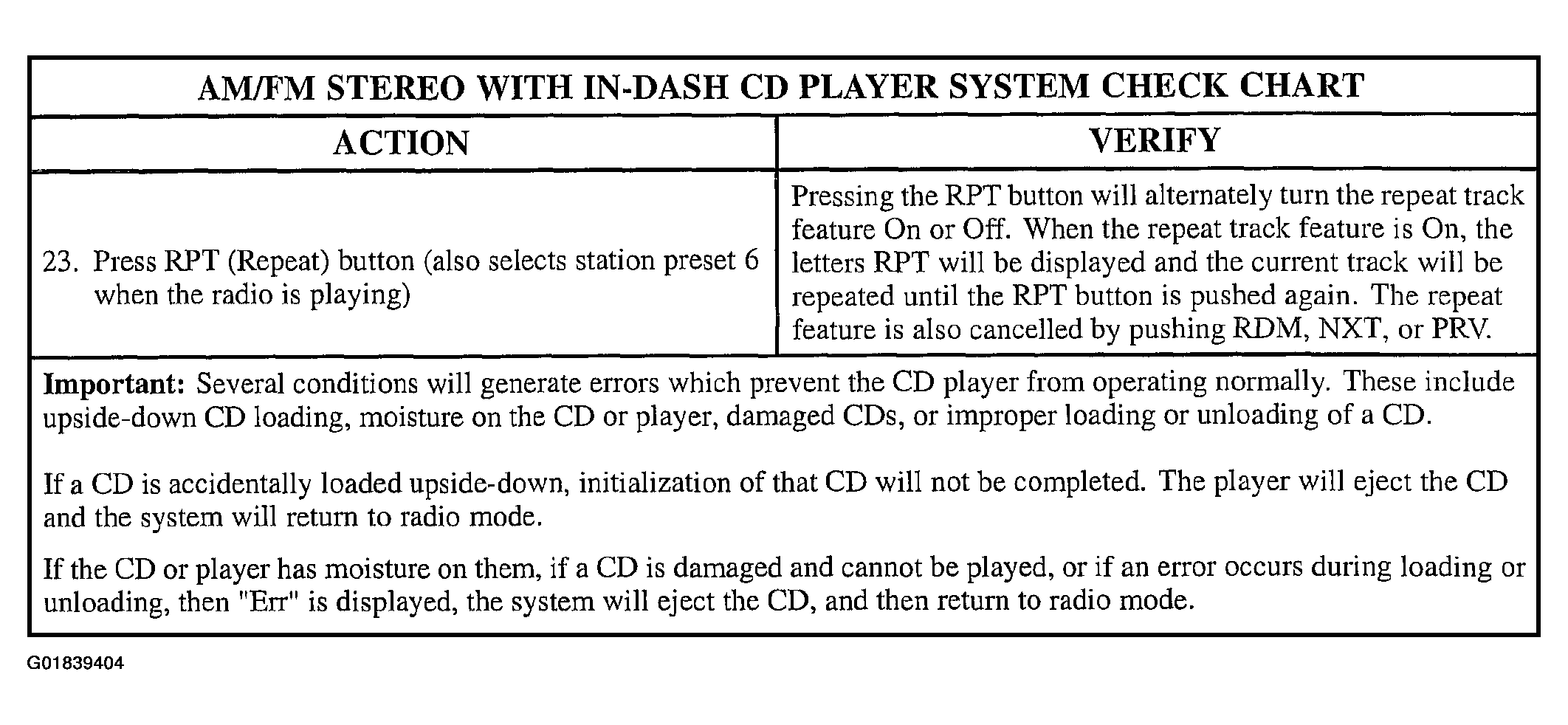

Fig 6: AM/FM Stereo With In-Dash CD Player System Check Chart (5 Of 5)
G01839404Courtesy of GENERAL MOTORS CORP.
