Dimmer Control/Trunk Release Switch: Installation

Slide dimmer control/Trunk Release Switch into A/C vent until retaining tabs engage.

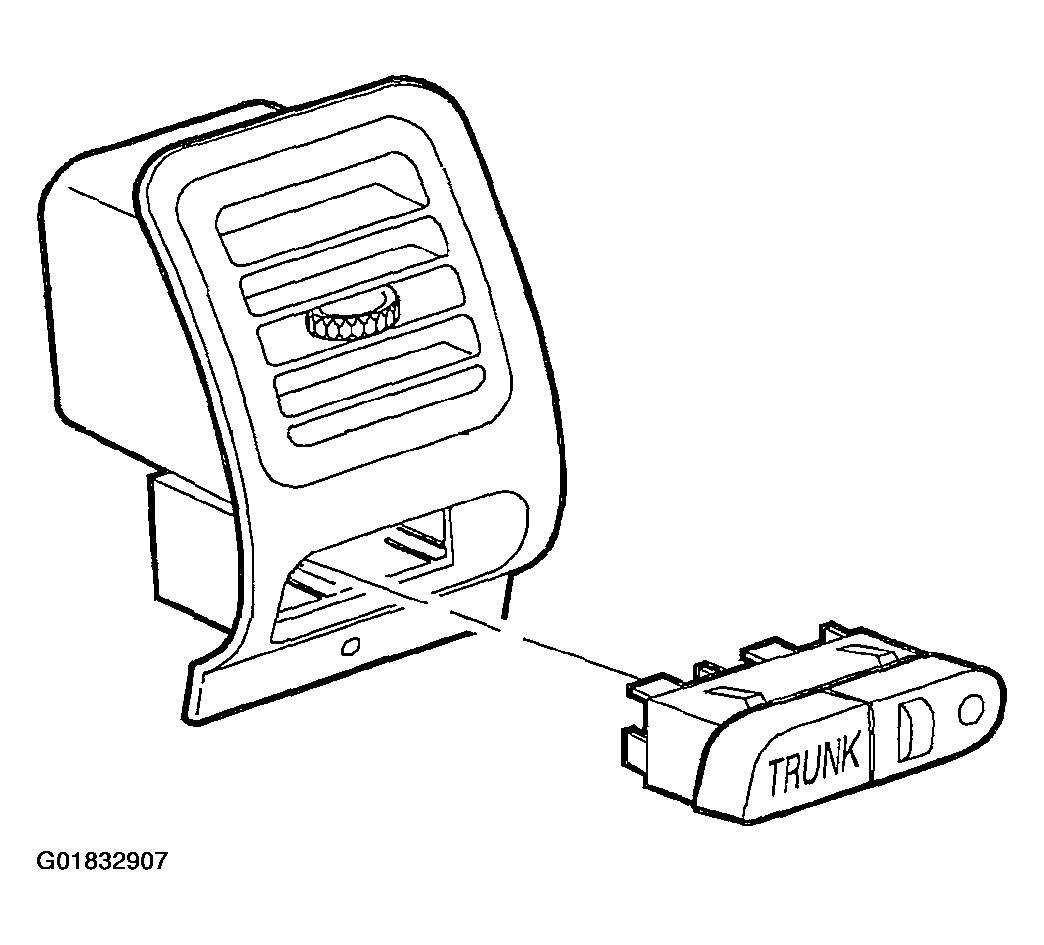

Fig 1: Sliding Dimmer Control/Trunk Release Switch Into A/C Vent

Courtesy of GENERAL MOTORS CORP.

Connect electrical connector to dimmer control/Trunk Release Switch.
Install A/C vent assembly and install fastener. Tighten A/C Outlet-to-I/P Fastener to 2.5 N.m (22 in lbs).
