DTC B1482: Battery Rundown Protection Shorted To Ground: Notes

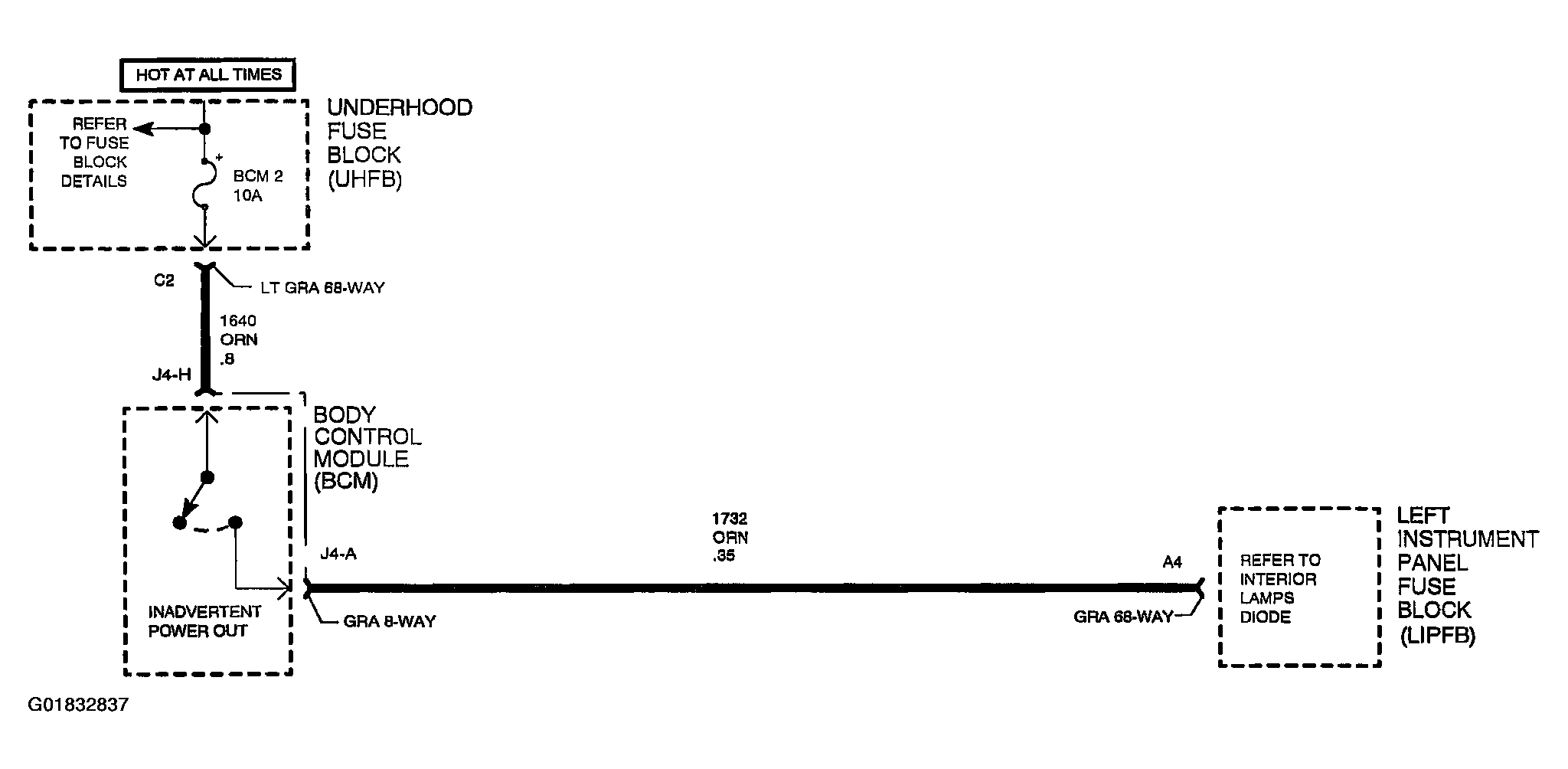

Fig 1: B1482 - Battery Rundown Protection Shorted To Ground Schematic

G01832837

Courtesy of GENERAL MOTORS CORP.
