Instrument Panel Gauges

The instrument panel gauges are controlled by the Body Control Module (BCM) via the serial data link to the Instrument Panel Cluster (IPC).

The following table gives the information source for each gauge:

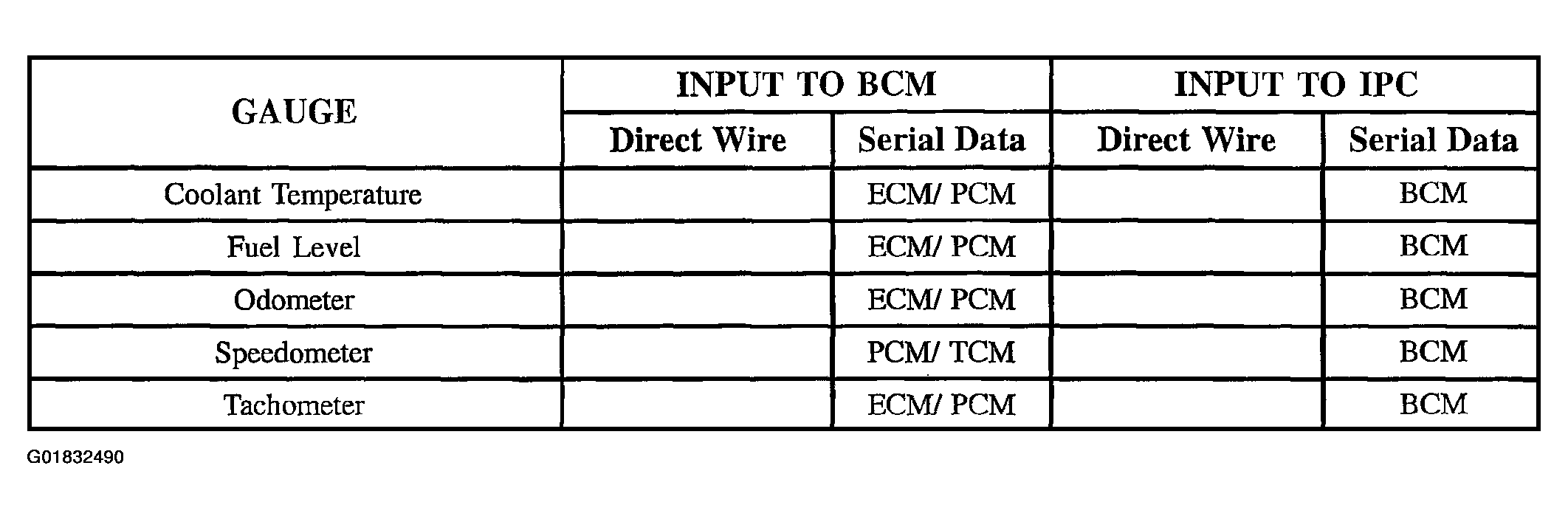

Fig 1: Instrument Panel Gauges Table
G01832490Courtesy of GENERAL MOTORS CORP.
