Front Shoulder Belt Guide: Removal

Move front seat to forward position.
Remove carpet retainer molding in area surrounding center pillar lower molding by pulling at attaching clip locations.

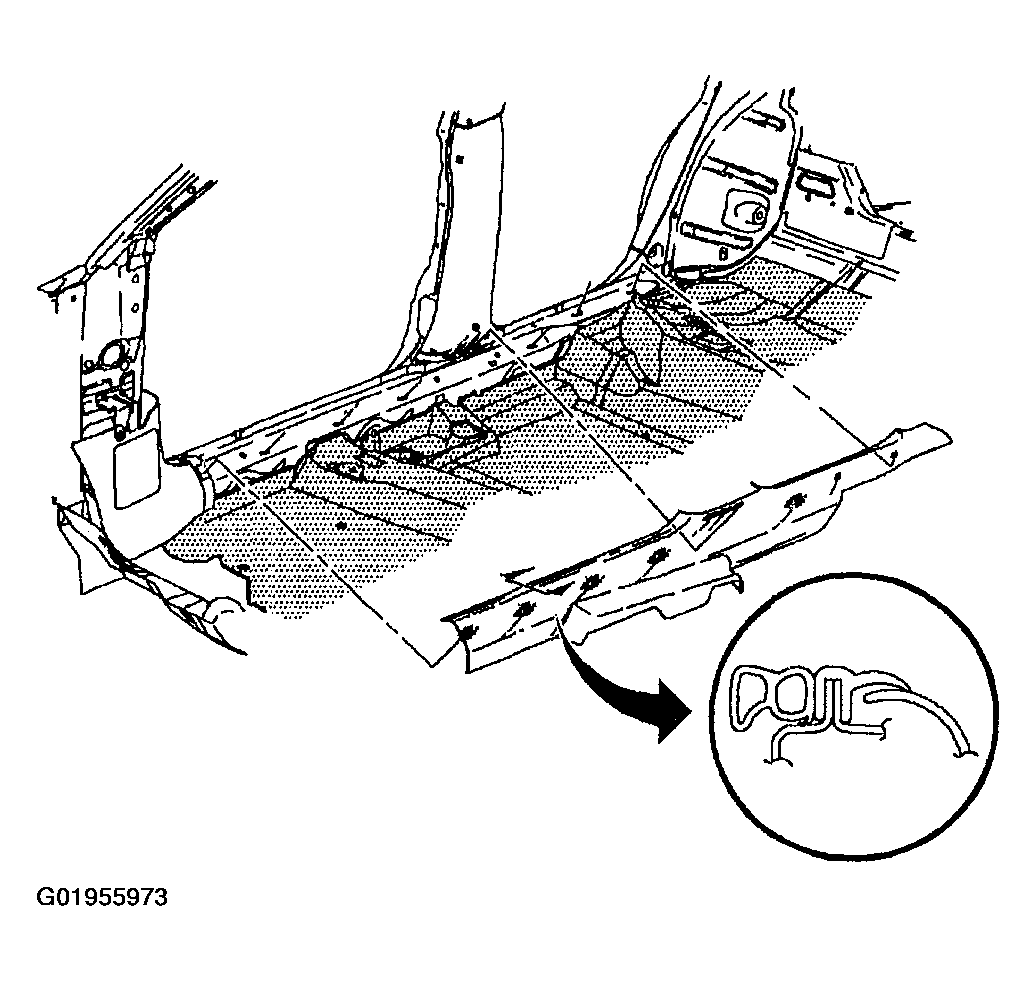

Fig 1: Removing Carpet Retainer Molding

Courtesy of GENERAL MOTORS CORP.

Using a trim tool, remove outside center pillar weatherstrip.

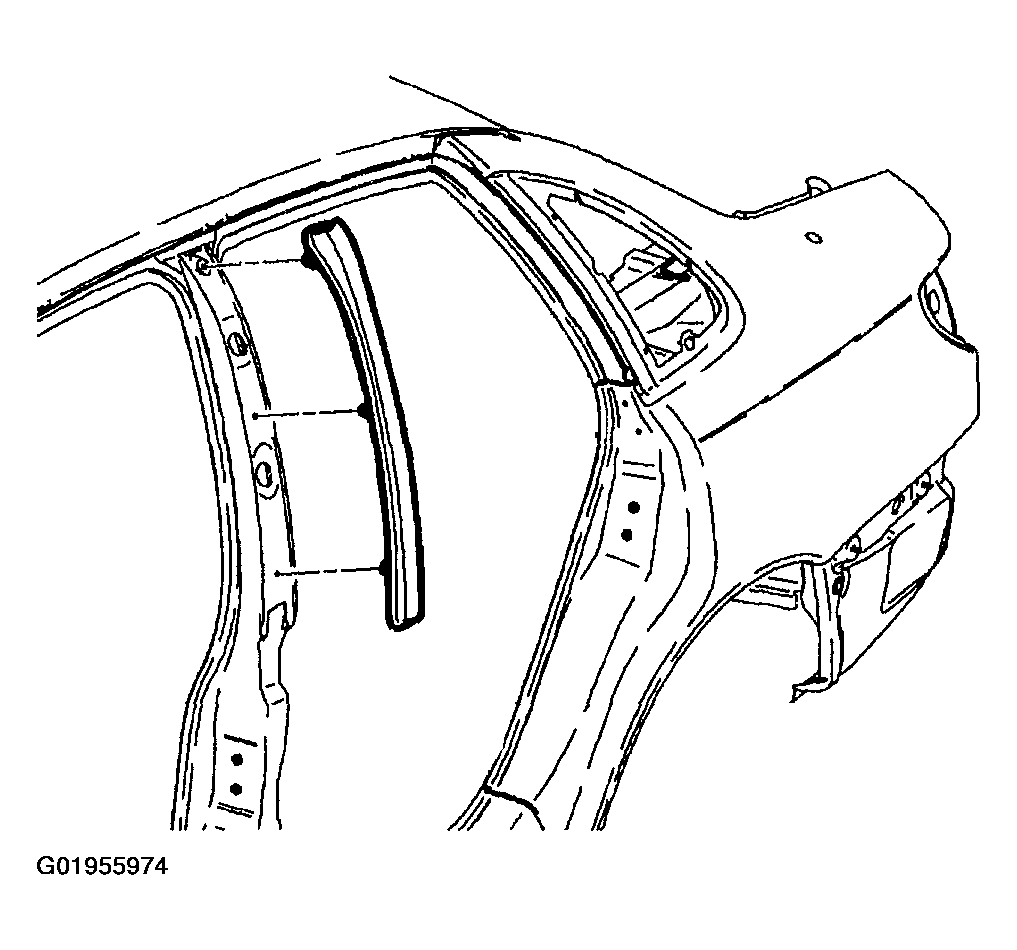

Fig 2: Removing Outside Center Pillar Weatherstrip
Courtesy of GENERAL MOTORS CORP.

CAUTION: Care must be taken not to drop fasteners in center pillar structure.
Remove shoulder belt height adjuster fasteners.

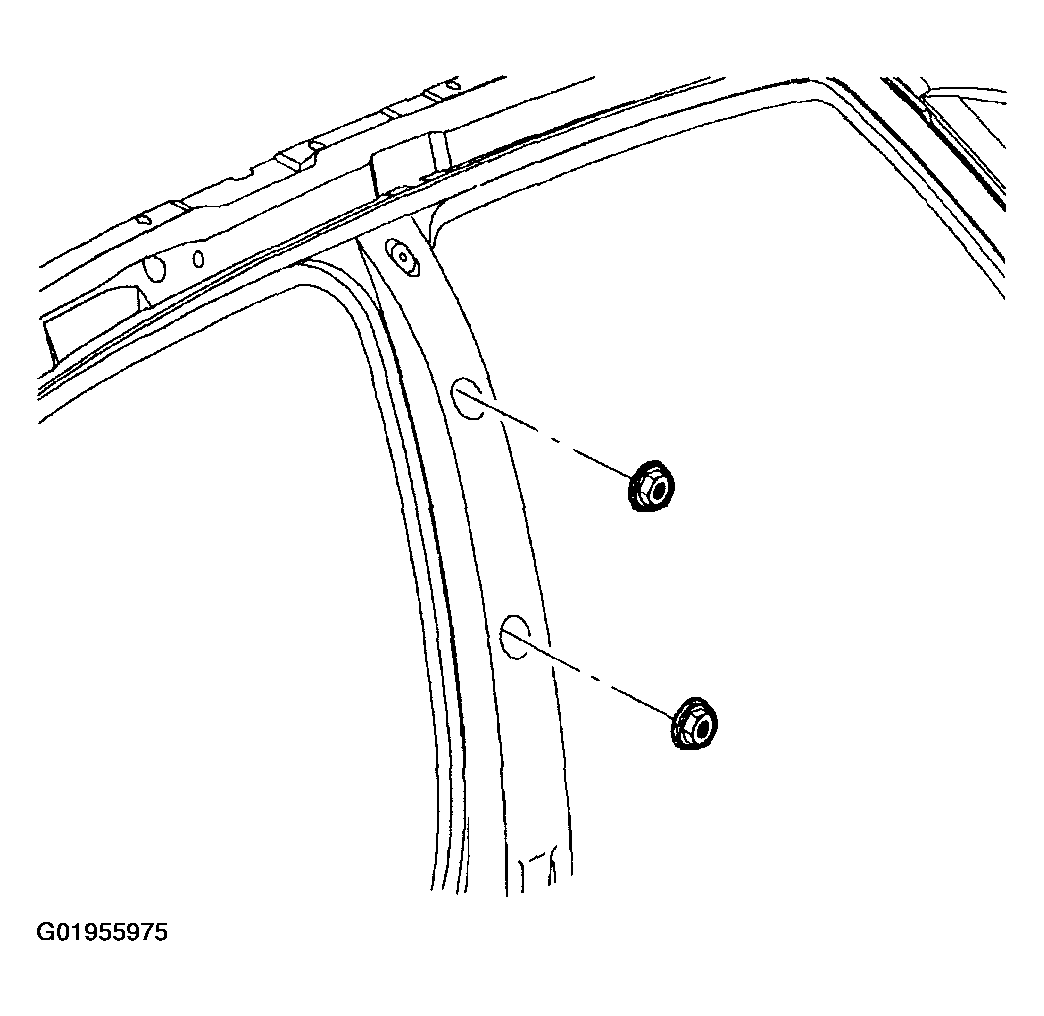

Fig 3: Removing Shoulder Belt Height Adjuster Fasteners
Courtesy of GENERAL MOTORS CORP.

CAUTION: Care must be taken not to drop fasteners in center pillar structure.

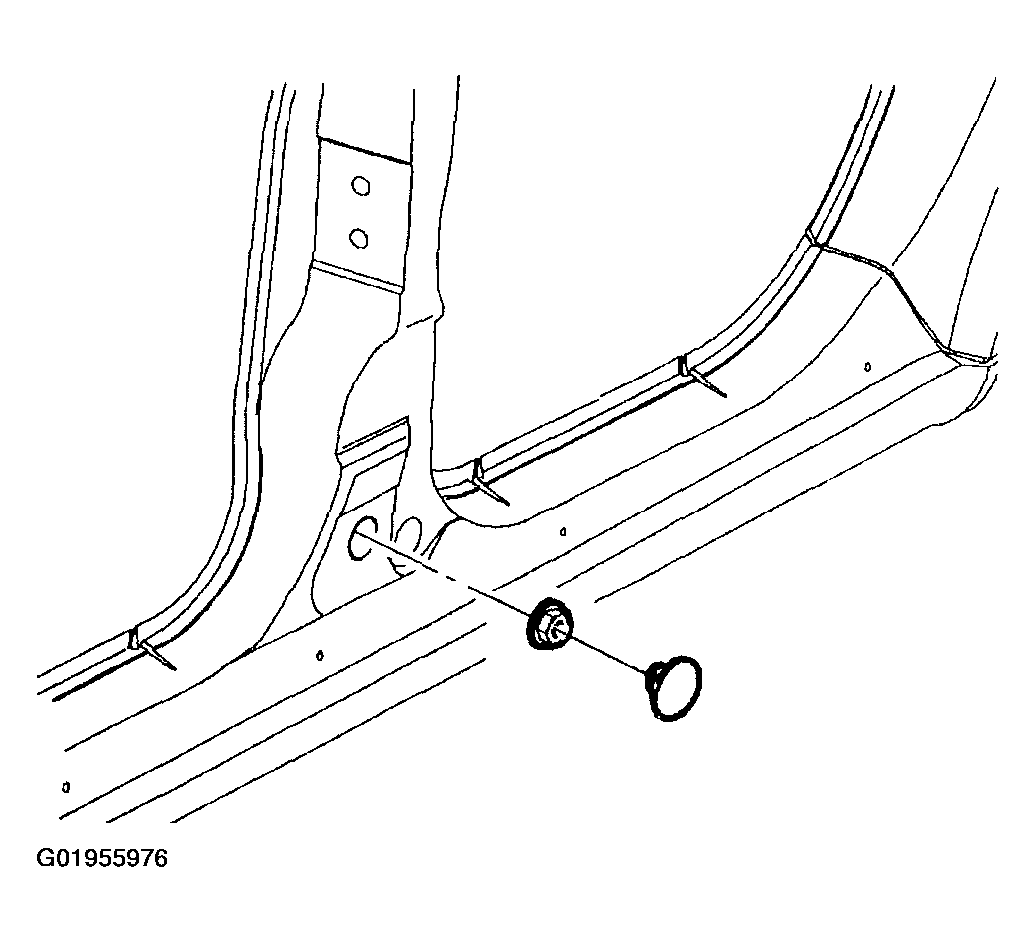

Remove shoulder belt retractor fastener access plug.
Remove shoulder belt retractor fastener.

Fig 4: Removing Shoulder Belt Retractor Fastener
Courtesy of GENERAL MOTORS CORP.

CAUTION: Upper and lower moldings will stay attached to each other while being removed.

CAUTION: Shoulder belt assembly and height adjuster unit will stay attached to the center pillar upper and lower moldings when the moldings are removed.
Starting at the top, gently pull on center pillar upper molding to disengage attaching clips.
Remove B-pillar molding plug and fastener.
Pull on center pill lower molding to disengage attaching clips.

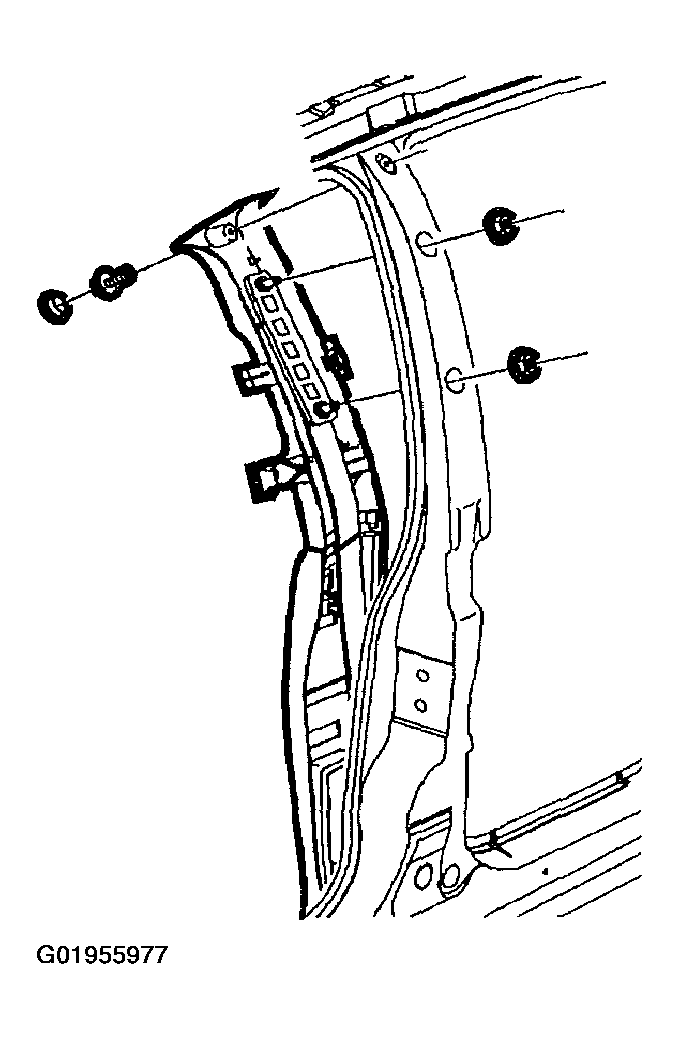

Fig 5: Disengaging Center Pill Lower Molding Attaching Clips

Courtesy of GENERAL MOTORS CORP.

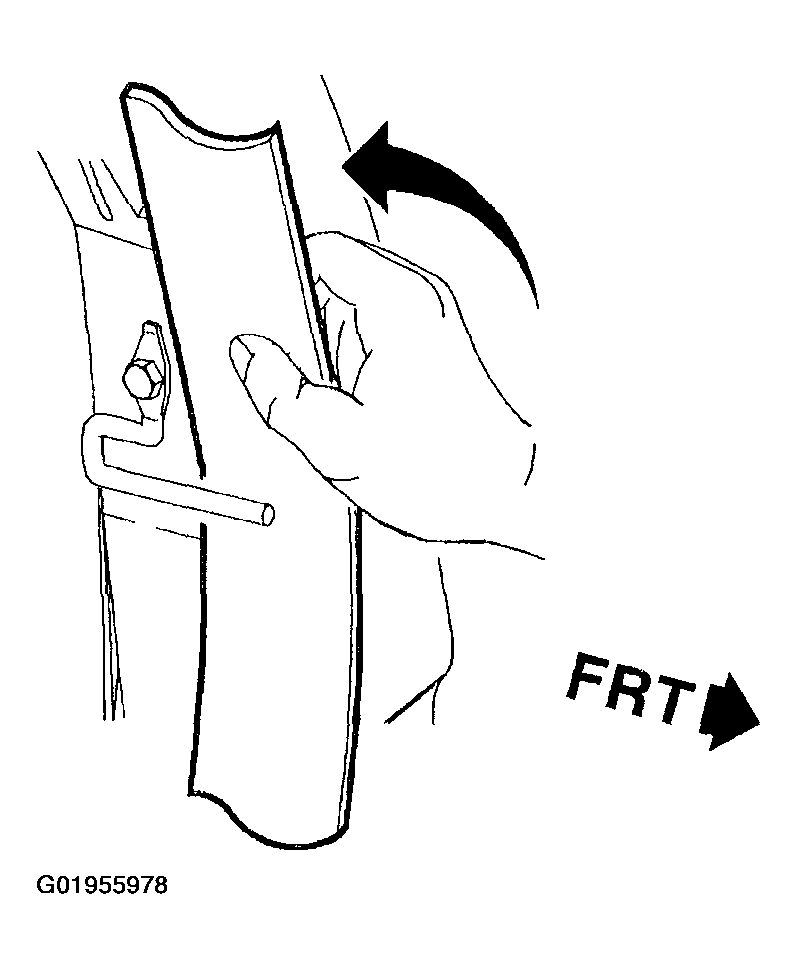

Fig 6: Removing Shoulder Belt From Retainer

Courtesy of GENERAL MOTORS CORP.
