Front Shoulder Belt Guide: Installation

  1. Install safety belt guide with fastener. Tighten safety belt guide fasteners to 1.5 N.m (13 in-lbs).

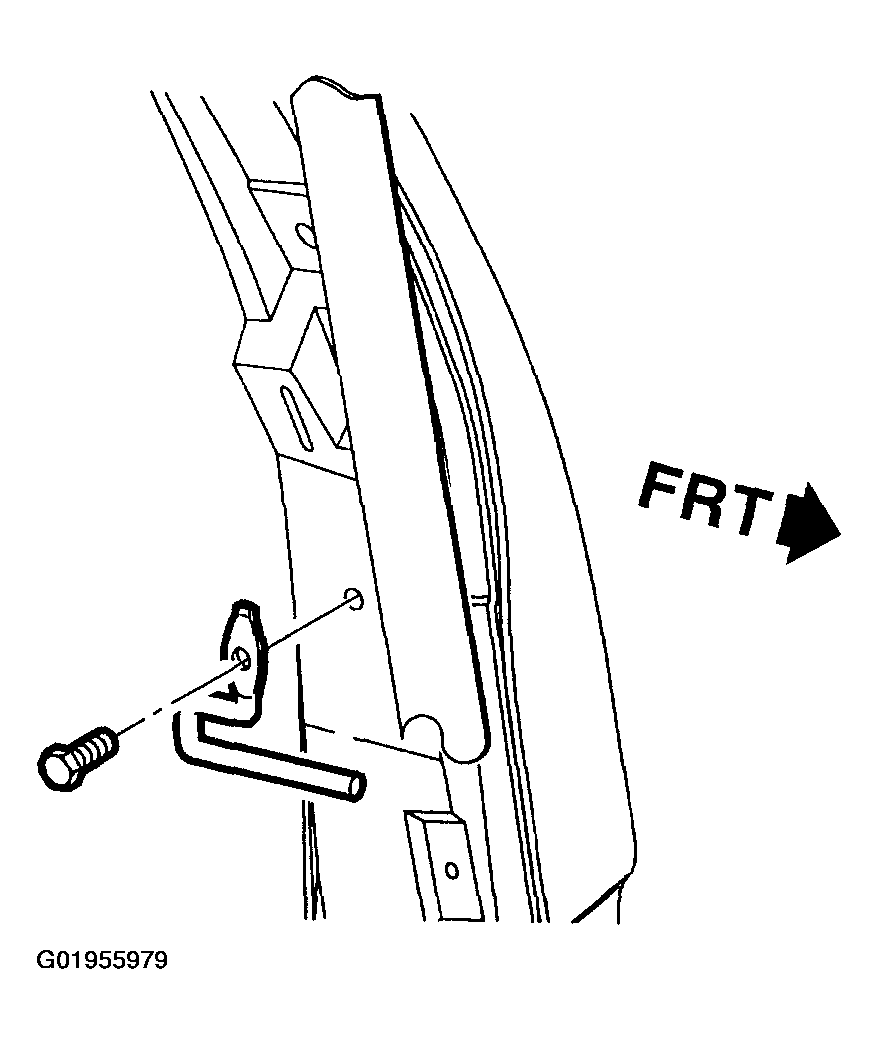

    2. Fig 1: Installing Safety Belt Guide
    G01955979Courtesy of GENERAL MOTORS CORP.
  2. Position shoulder belt behind shoulder belt retainer.
    3. Fig 2: Positioning Shoulder Belt Behind Shoulder Belt Retainer
    G01955980Courtesy of GENERAL MOTORS CORP.
  3. Attach center pillar molding assemblies to vehicle by firmly pushing at clip locations.
  4. Install B-pillar molding fastener and plug. Tighten b-pillar molding fastener to 10 N.m (89 in-lbs).

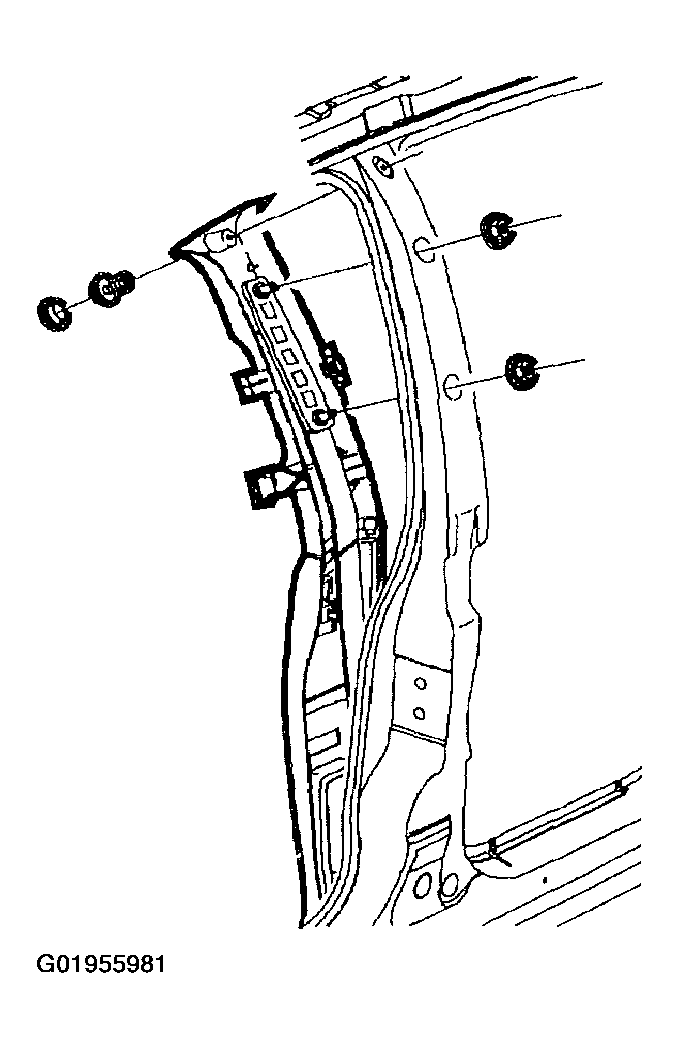

    5. Fig 3: Installing B-Pillar Molding Fastener & Plug
    G01955981Courtesy of GENERAL MOTORS CORP.
  5. Install retractor fastener. Tighten retractor fastener to 35 N.m (26 ft-lbs).
  6. Install retractor plug.

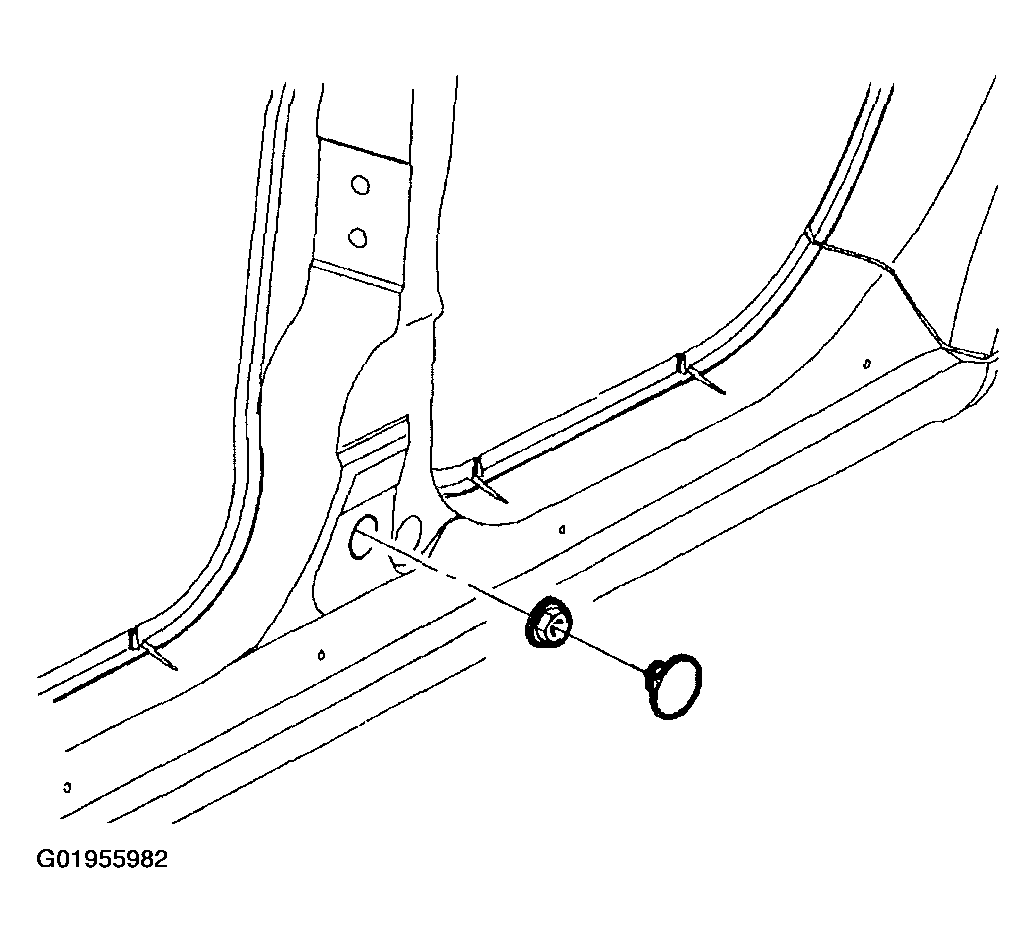

    7. Fig 4: Installing Retractor Plug
    G01955982Courtesy of GENERAL MOTORS CORP.
  7. Install height adjuster fasteners. Tighten height adjuster fasteners to 35 N.m (26 ft-lbs).

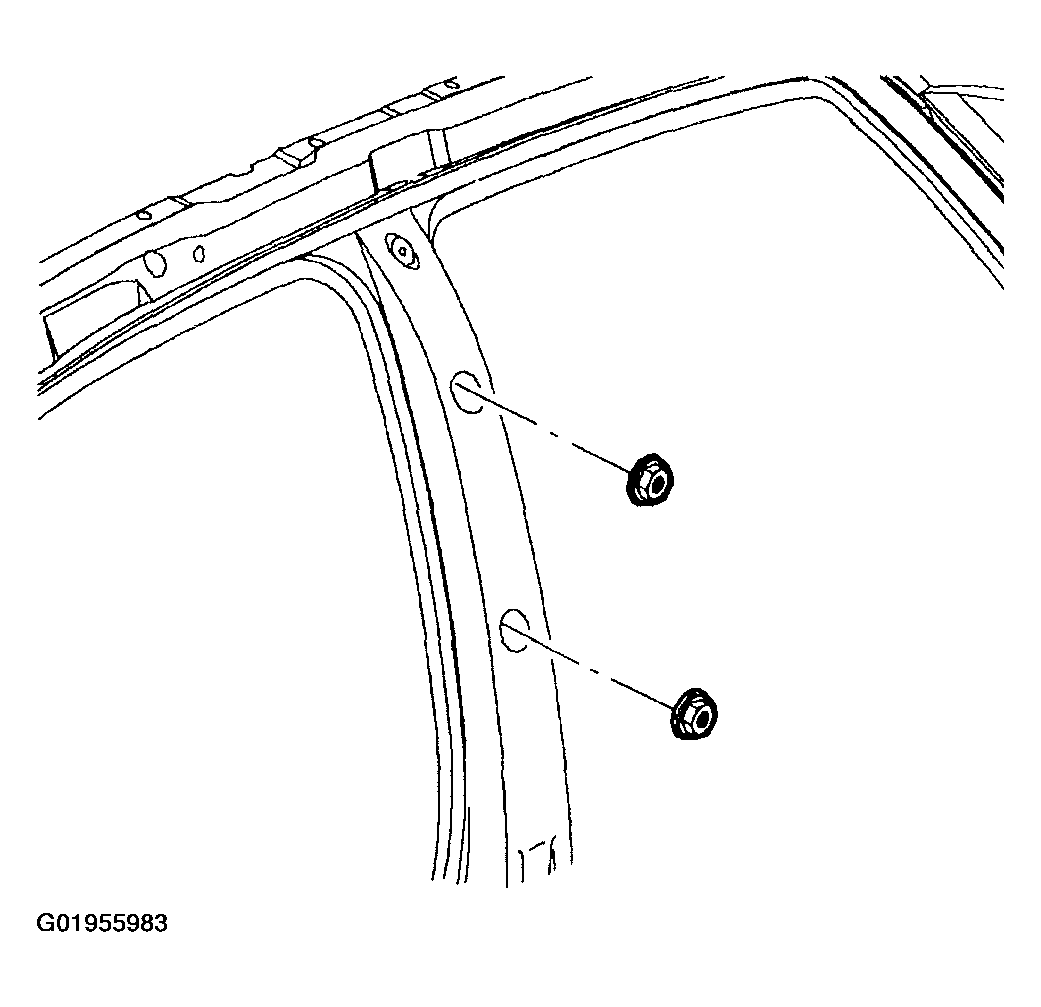

    8. Fig 5: Installing Height Adjuster Fasteners
    G01955983Courtesy of GENERAL MOTORS CORP.
  8. Install center pillar outside weatherstrip.

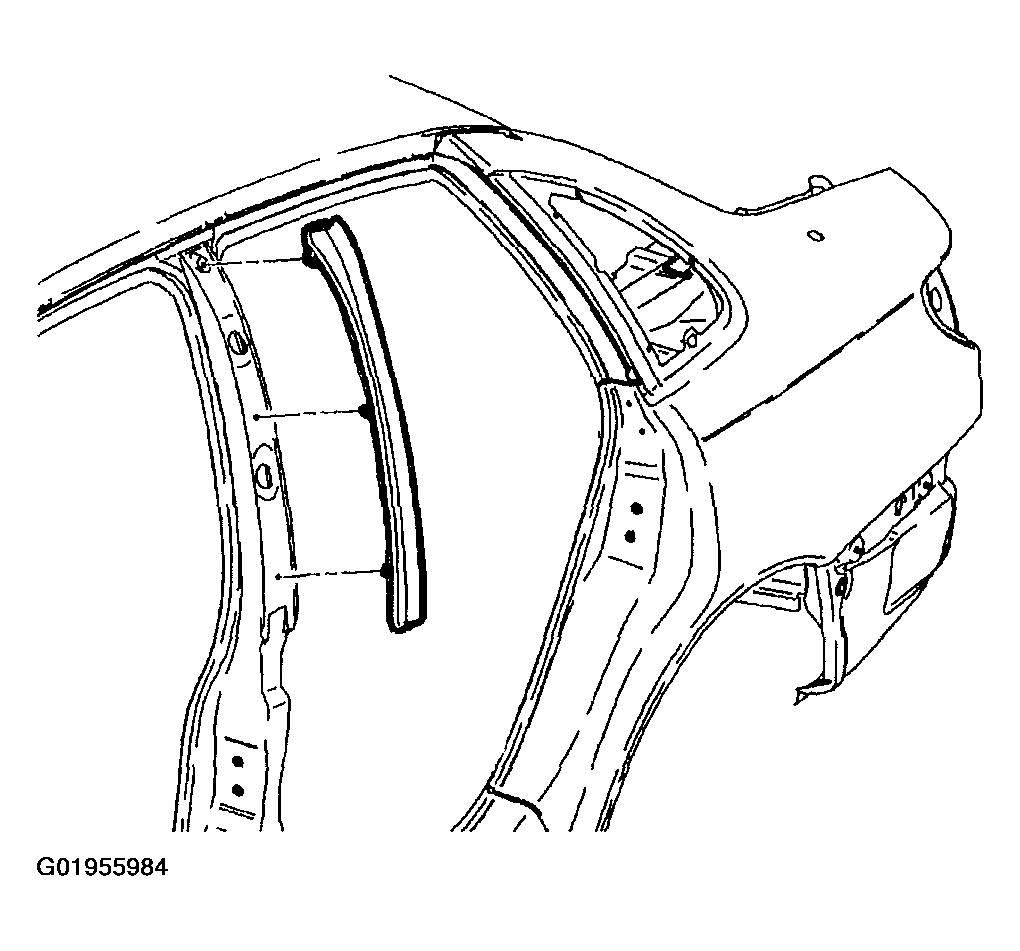

    9. Fig 6: Installing Center Pillar Outside Weatherstrip
    G01955984Courtesy of GENERAL MOTORS CORP.
  9. Install carpet retainer by gently pushing at attaching clip locations.

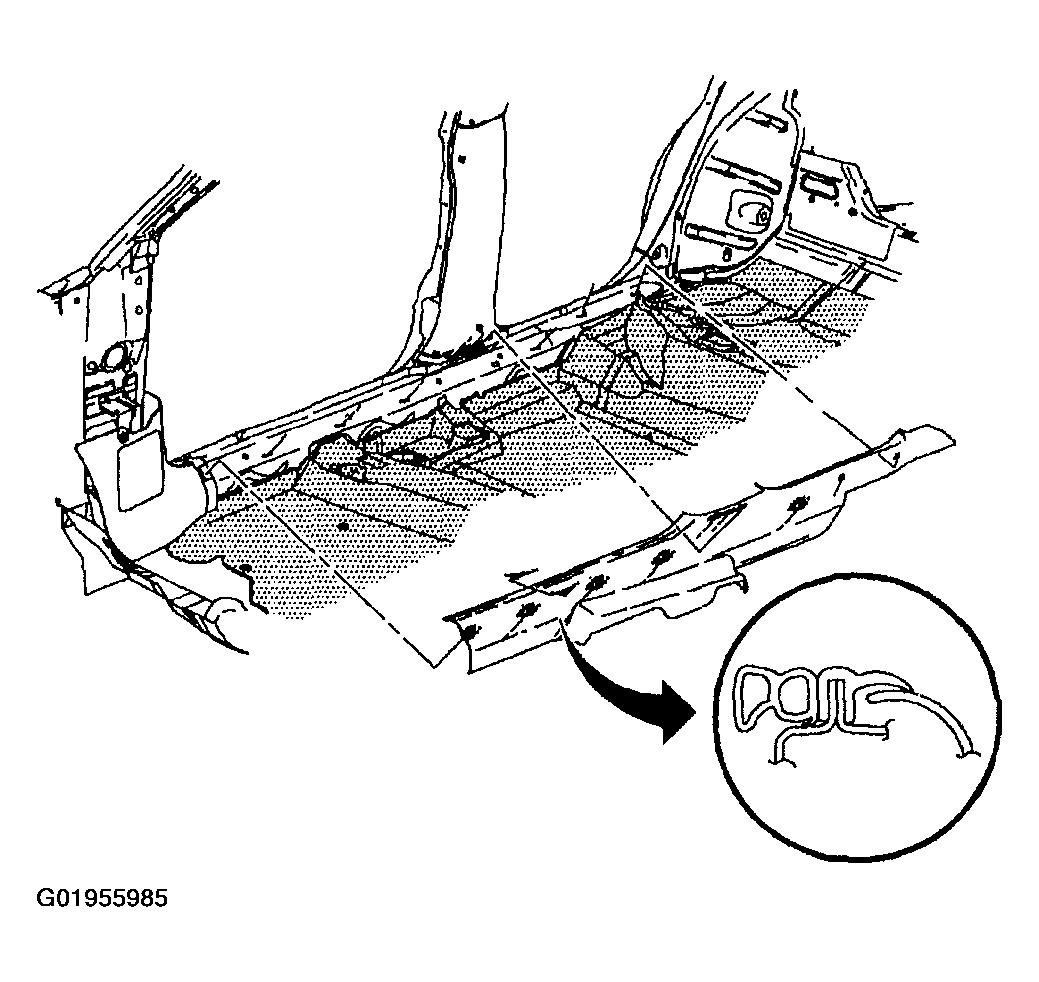

    10. Fig 7: Installing Carpet Retainer
    G01955985Courtesy of GENERAL MOTORS CORP.
  10. Install weatherstrip over center pillar lower molding and rocker panel molding using a flat blade tool.

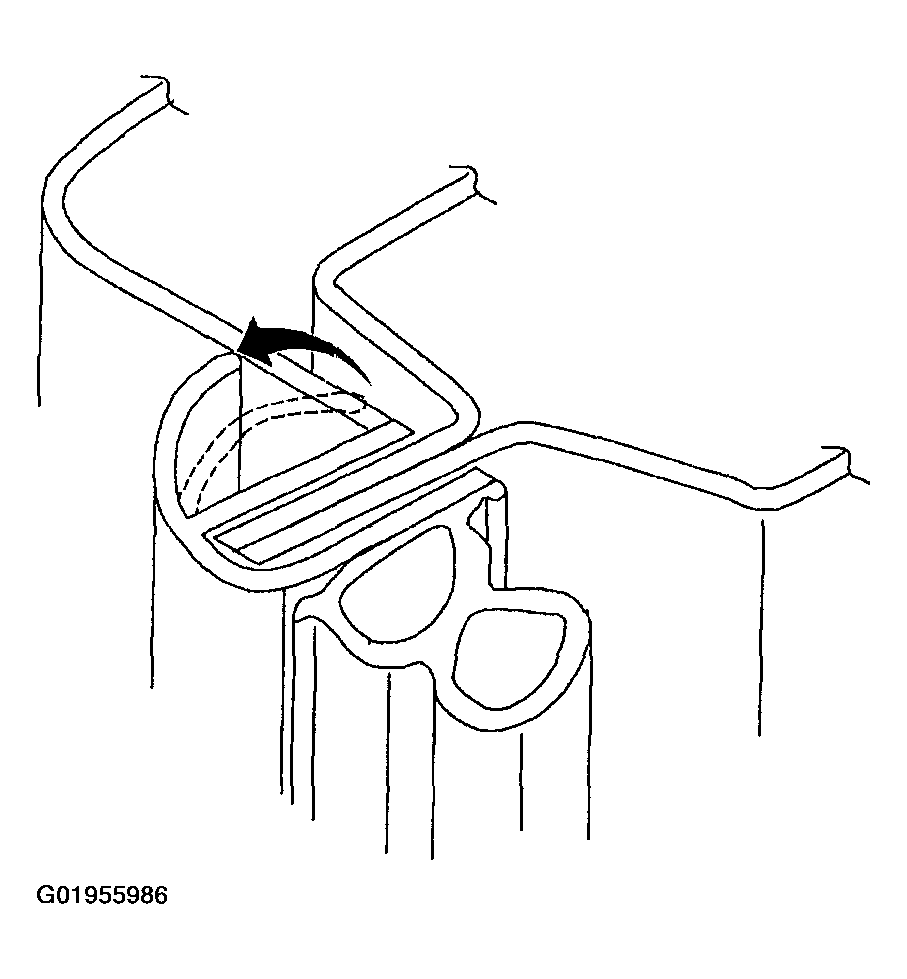

    11. Fig 8: Installing Weatherstrip Over Center Pillar Lower Molding & Rocker Panel Molding
    G01955986Courtesy of GENERAL MOTORS CORP.
  11. Function shoulder belt to ensure proper operation.
  12. Place front seat in original position.
