Child Comfort Guide: Installation

  1. Install comfort guide with comfort guide retainer.
  2. Install comfort guide to shoulder belt.

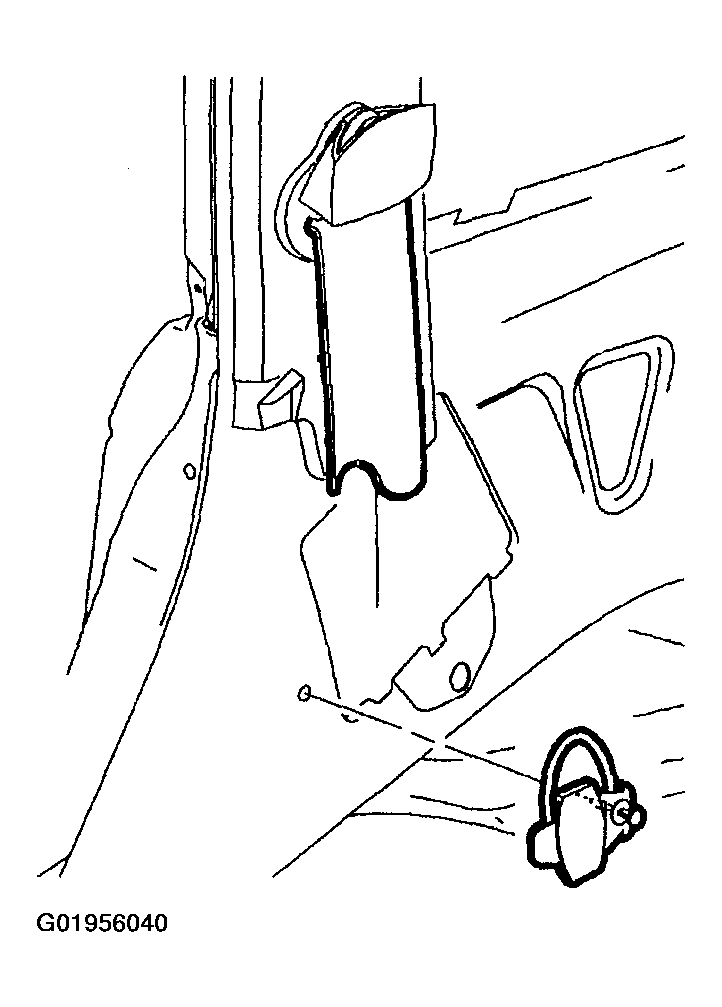

    Fig 1: Installing Comfort Guide To Shoulder Belt
    G01956040Courtesy of GENERAL MOTORS CORP.
    WARNING: Make sure rear seat shoulder belt is not caught behind bolster when installing bolster.
  3. Install rear seat bolster.

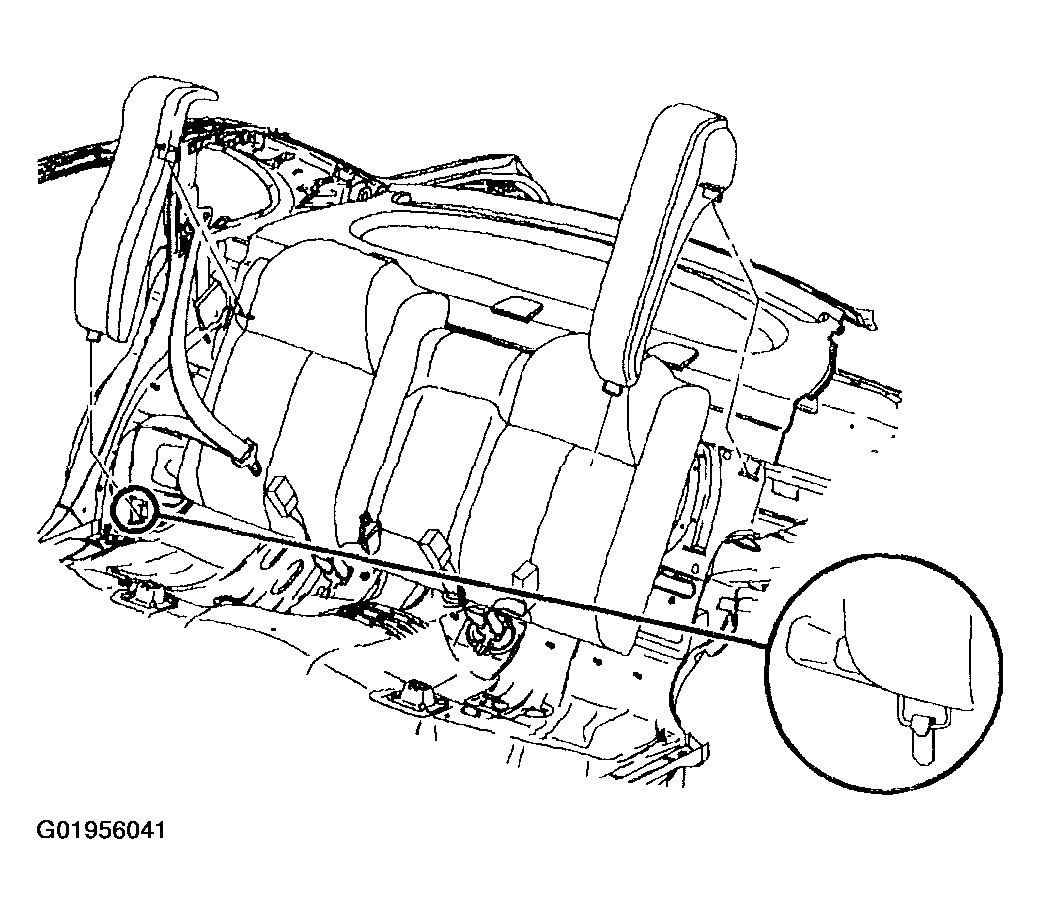

    Fig 2: Installing Rear Seat Bolster
    G01956041Courtesy of GENERAL MOTORS CORP.
    1. Position bolster onto upper bolster attachment.
    2. Push down on bolster to engage upper attachment and push bolster back over retaining tab.
    3. Bend retaining tab down to fasten bolster.
    4. Raise rear seat back.
  4. Check function of rear seat shoulder belt assembly for proper operation.
