Traction Control Switch: Removal

  1. Remove center trim plate by gently pulling rearward at top to disengage retaining clips.
  2. Tilt trim plate sideways and disconnect traction control switch electrical connector.
  3. Release traction control switch lock tabs and push switch through front of center trim plate.

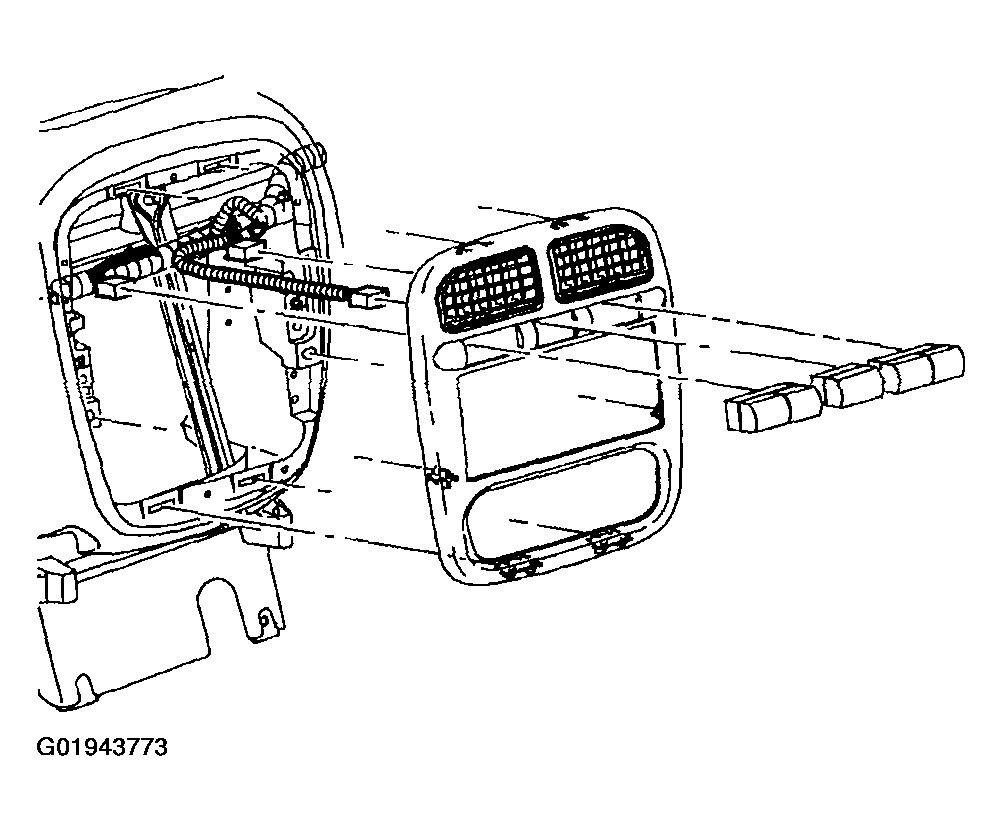

Fig 1: Pushing Switch Through Front Of Center Trim Plate
G01943773Courtesy of GENERAL MOTORS CORP.
