Abs Control Assembly (EBTCM & Bpm): Disassembly

NOTE: Do not attempt to repair damaged solenoid pack or control unit assemblies. Repair of these assemblies is not possible. Do not lubricate or oil the EBTCM.
  1. Disconnect pump motor electrical connector.
  2. Remove EBTCM to BPMV screws.
  3. Separate EBTCM from BPMV.

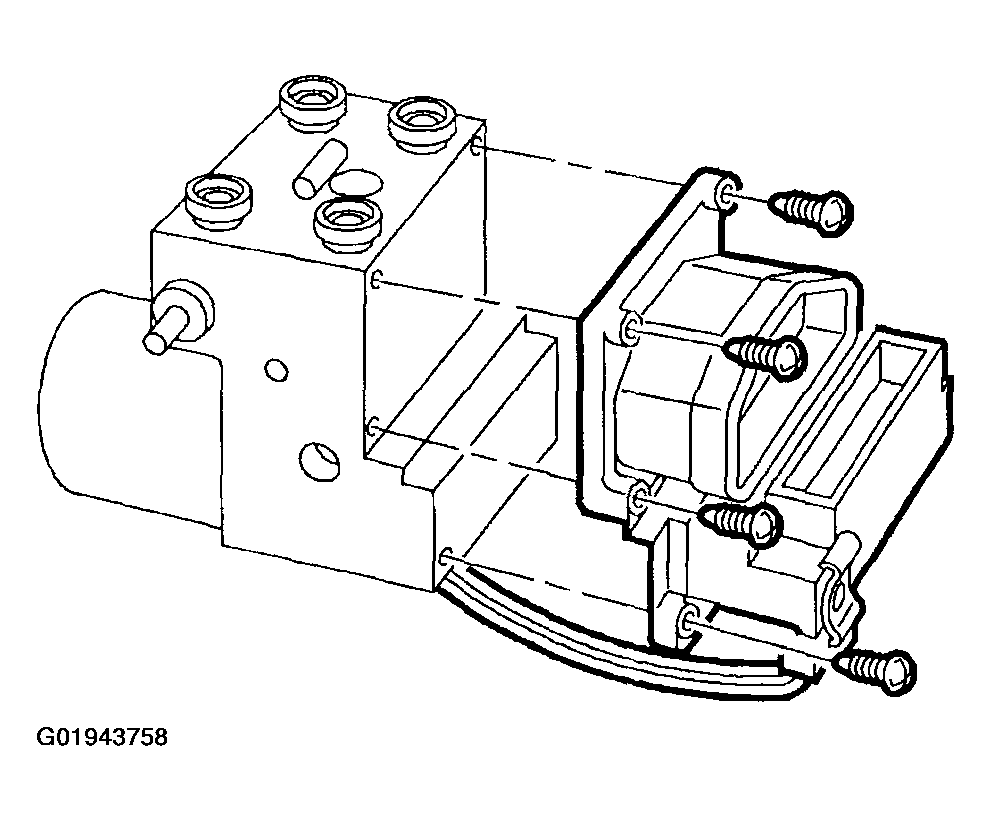

    4. Fig 1: Separating EBTCM From BPMV
    G01943758Courtesy of GENERAL MOTORS CORP.
