DTC C0110: Pump Motor Malfunction: Notes

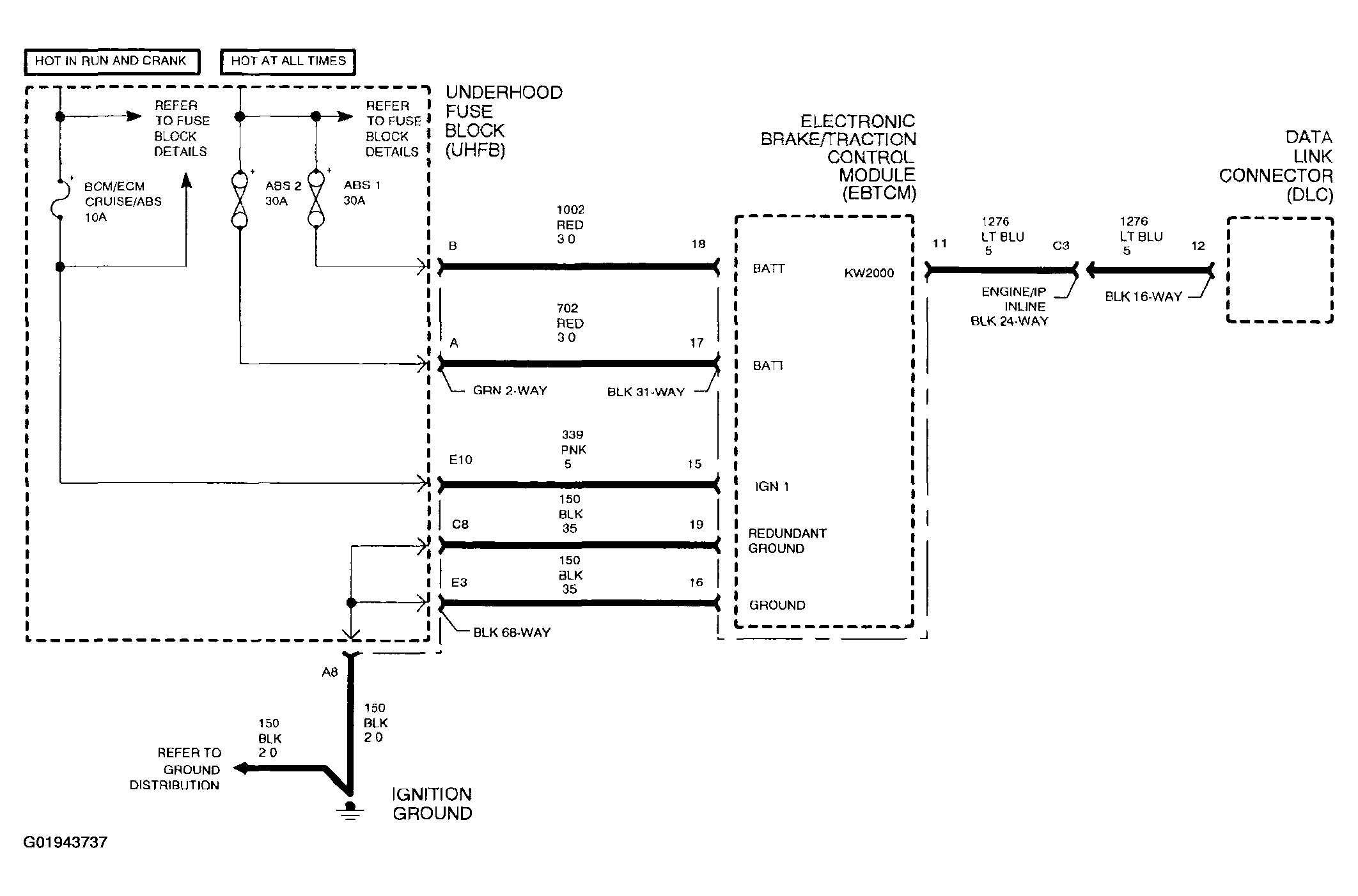

Fig 1: C0110 - Pump Motor Malfunction Schematic
G01943737Courtesy of GENERAL MOTORS CORP.

During an ABS or TCS event, the ABS control module energizes the pump motor relay winding to switch battery voltage to the pump motor. This relay and motor is not used during normal braking.
