Latch System: Removal

WARNING: Latch brackets must be replaced if it either visibly damaged or the vehicle was involved in an accident during which the latch system was used.
  1. Remove rear seat cushion assembly. (Refer to REAR SEAT CUSHION  .)
  2. Remove latch bracket attaching bolts and brackets.

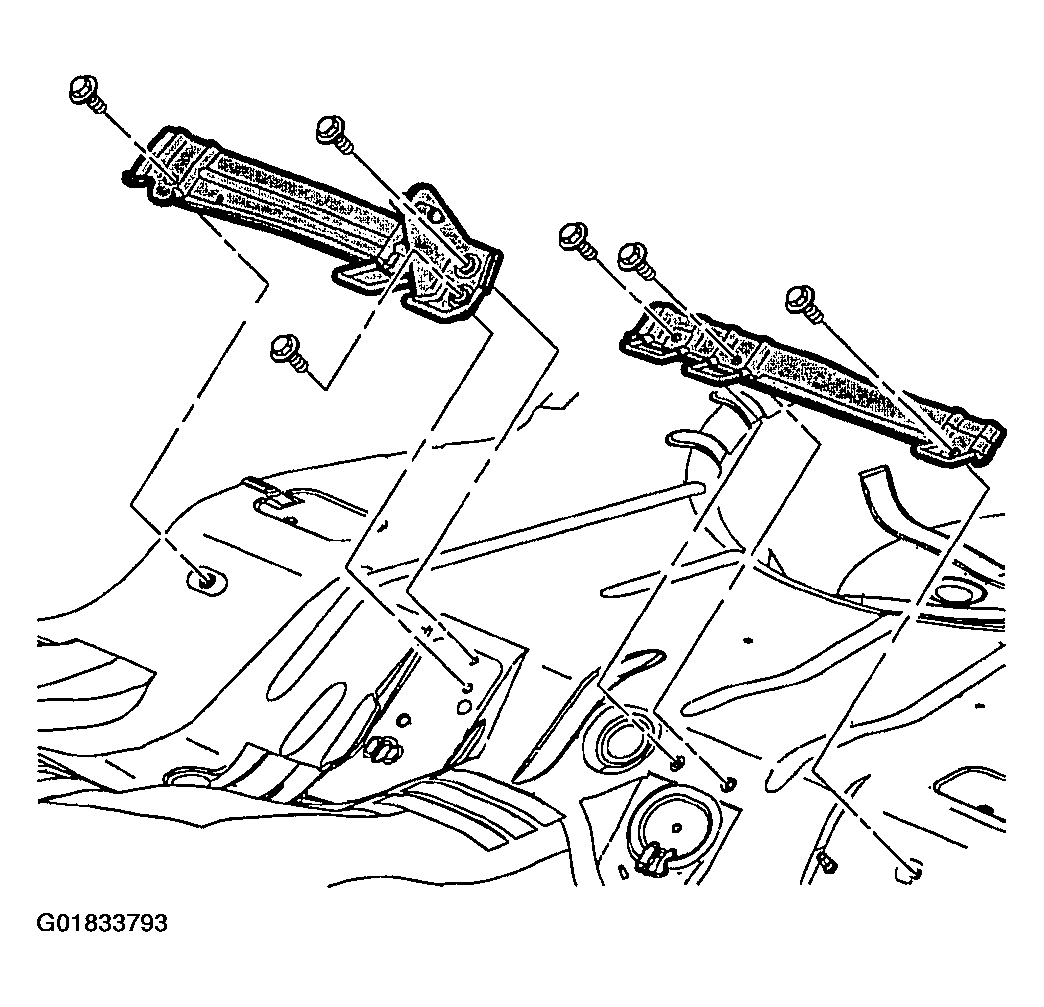

Fig 1: Removing Latch Bracket Attaching Bolts & Brackets
G01833793Courtesy of GENERAL MOTORS CORP.
