Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn LW300, 2003 Saturn LW200, 2003 Saturn L300, and 2003 Saturn L200. However, it is still accessible from the selected car via links, so may be relevant.

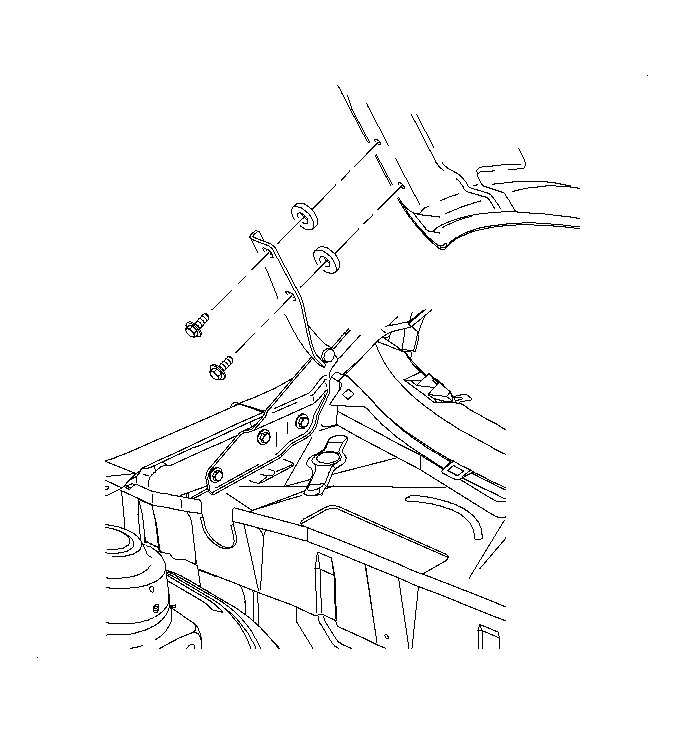

Fig 1: Installing Hinge-To-Hood Bolts

Courtesy of GENERAL MOTORS CORP.

With an assistant, position the hood to the marks at hinges.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

With an assistant install the hood bolts.
Tighten: Tighten the bolts to 20 N.m (15 lb ft).
Install the hood insulator, if required. Refer to Hood Insulator Replacement .
Lower the hood slowly and check the fit. Adjust the hood if required. Refer to Hood Adjustment .
