Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn LW300, 2003 Saturn LW200, 2003 Saturn L300, and 2003 Saturn L200. However, it is still accessible from the selected car via links, so may be relevant.

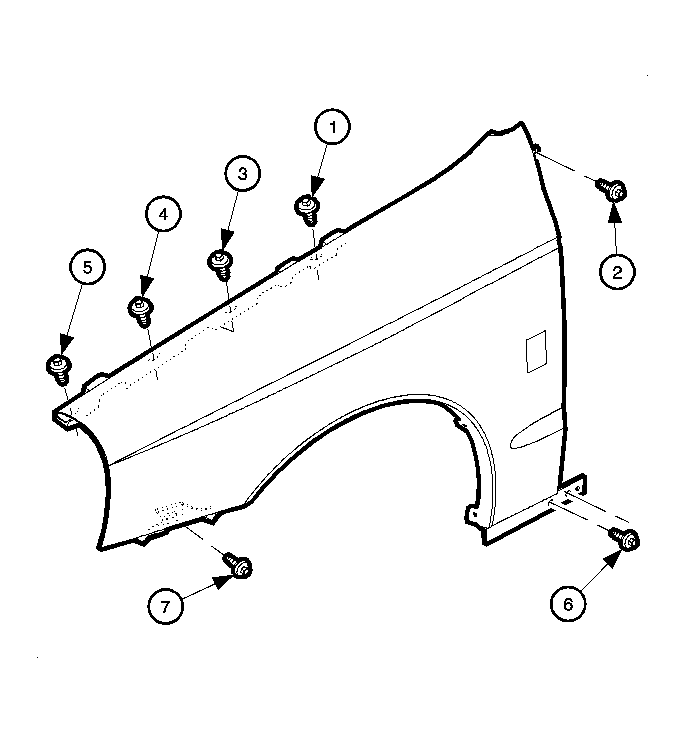

    Fig 1: Installing Front Fender Bolts
    GM898196Courtesy of GENERAL MOTORS CORP.
  1. Position the fender to the front compartment side rail.
  2. Align the fender to the door and hood.
    3. NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the bolts to the fender.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

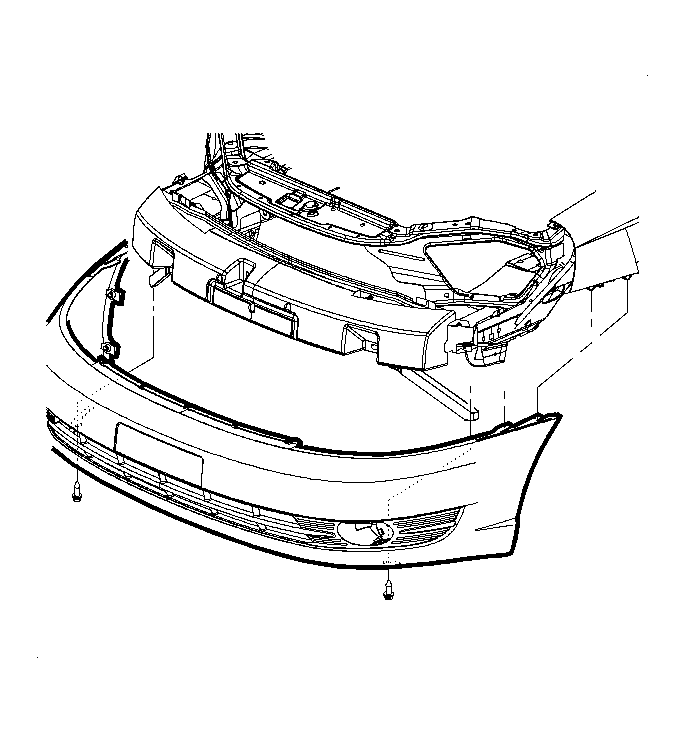

    4. Fig 2: Installing Front Fascia
    GM898194Courtesy of GENERAL MOTORS CORP.
  4. Slide the fascia into position and secure with the fascia to fender locking tabs.
  5. Install the fascia push-in retainers.
  6. Install the front wheelhouse liner. Refer to Wheelhouse Liner Replacement - Front  .
  7. Install the rocker panel molding. Refer to Molding Replacement - Rocker Panel in Exterior Trim.
  8. Install the grill. Refer to Fascia Grille Replacement - Front Bumper - Upper in Bumpers.
  9. Install the headlamp. Refer to. Headlamp Assembly or Headlamp Bulb Replacement in Lighting Systems.
